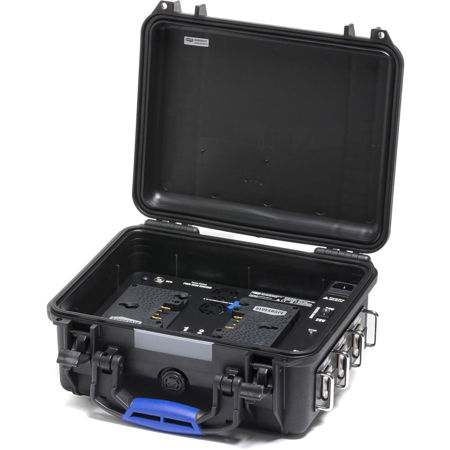

BlueShape Rugged Mini Field Production Power Station for 2 3-Stud 48V/28V/14V Batteries

SKU: BSRUGGEDM3S MFR: RUGGED MINI-3S
Earn VIP Reward Points

Key Features

  • Power your field production with this rugged mini power station for reliable shoots.
  • Enjoy hot-swappable battery convenience with this 3-Stud battery power solution.
  • Regulated 48V/28V/14V outputs ensure stable power for all your video equipment needs.
  • Check battery levels easily using the intuitive LED display for each installed battery.
  • This IP67 rated power station offers durability, protecting against dust and water damage.
  • Compact & lightweight design makes this mini power station ideal for portable video setups.
See More Product Details
Special Order?Estimated to Ship: 08/17/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$159.99

4 Year

$191.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Compatibility
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

BlueShape Rugged Mini Power Station Specifications

  • Input

    1 to 2 installable 3-Stud batteries, hot swappable

  • Output (outside)

    3 simultaneous
    1x regulated 48V, max 280W (user selectable)
    1x regulated 28V, max 280W (user selectable)
    1x regulated 14V, max 170W (always available)

  • Display

    3 LEDs gauge per battery

  • Rating

    IP67

  • Dimensions

    13.19 x 11.38 x 6.10" (335 x 289 x 155mm)

  • Weight

    9.92 lb (4.5kg)

Designed For Use With:

  • Stud Mount
  • XLR

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

About BlueShape Rugged Mini Power Station

From field productions to high-power device operations, the PWS-Rugged Mini 3S Power Station is a revolutionary addition to the Power Station family. This compact, high-quality power station is designed to integrate and consolidate the power of up to two 3-Stud batteries into a singular, reliable power source.

Equipped with three distinct outputs over XLR connectors, it offers a 14V output via an XLR-4 pin, a 28V output through an XLR-3 pin, and a 48V output via another XLR-3 pin. The 14V output is consistently available, while the 28V and 48V outputs are user-selectable via a convenient switch, providing versatility for various electronic devices.

Constructed within a lightweight, waterproof, and unbreakable case, the PWS-Rugged Mini 3S is designed for durability and portability. Its double-hinged locking system ensures security, while the soft-grip handle enhances comfort during field use.

This rugged power station also features two independent 65W chargers. When connected to AC power, the installed batteries charge while the system continues to release DC power as needed. This feature allows the PWS-Rugged Mini 3S to function as a powerful UPS system, ensuring a consistent DC output even in the event of an AC power cut.

The PWS-Rugged Mini 3S is a testament to the Blueshape power station concept, integrating multiple 3-Stud batteries into a unique power source. With its highly efficient internal electronics, the system remains cool even under high loads, ensuring safe and prolonged reliability.

Depending on the installed batteries, this power station can supply up to 170W on the 14V output and up to 280W on the 48V output with high-drain BG batteries. With standard BG batteries, it can provide up to 140W on the 14V output and up to 240W on the 48V output.

The hot-swappable battery feature ensures uninterrupted power supply, even when a battery needs replacement. An LED array indicates the current level delivered by each battery, providing real-time load information for each battery.

In essence, the PWS-Rugged Mini 3S Power Station is a durable, portable, and versatile power solution for a wide range of electronic devices, making it an essential tool for field productions and high-power device operations.

BlueShape Rugged Mini Power Station Features

  • AC charging feature: 2 independent 65W battery chargers included to charge the batteries in place
  • Lightweight, IP67 waterproof, unbreakable case with ergonomic handle
  • Automatic valve to automatically self adjusts the internal air pressure
  • Heavy duty latches designed to remain closed even if the case falls
  • Reinforced corners for maximum impact resistance

Warranty Information

This product has a limited warranty of 18 months for parts and 18 months for labor.

Key Features

  • Power your field production with this rugged mini power station for reliable shoots.
  • Enjoy hot-swappable battery convenience with this 3-Stud battery power solution.
  • Regulated 48V/28V/14V outputs ensure stable power for all your video equipment needs.
  • Check battery levels easily using the intuitive LED display for each installed battery.
  • This IP67 rated power station offers durability, protecting against dust and water damage.
  • Compact & lightweight design makes this mini power station ideal for portable video setups.

What's in the box:

  • Rugged Mini Field Production Power Station for 2 3-Stud 48V/28V/14V Batteries
  • AC Power Cable
  • BlueShape 18 Month Limited Warranty
