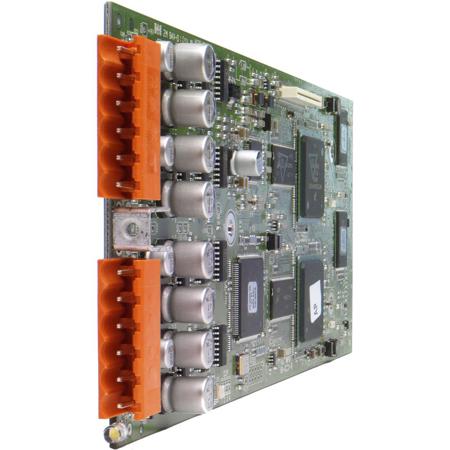

BSS AES/EBU, S/PDIF Digital Input Card
See all BSS items

BSS AES/EBU, S/PDIF Digital Input Card for Soundweb London BLU-800, BLU-805 Network Audio Systems

SKU: BSSBLUDIGIN
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

BSS Digital Input Card Specifications

  • Compatibility

    Soundweb London BLU-800, BLU-805, BLU-806, BLU-320, BLU-325, BLU-326, BLU-160, BLU-120, BLU-80, BLU-32 and BLU-16 Network Audio Systems

  • Digital Inputs

    Up to 2 pairs of AES/EBU or S/PDIF on Phoenix/Combicon removable screw connectors

  • Input Impedance

    110Ohms (AES/EBU), 75Ohms (S/PDIF)

  • Sample Rate

    48kHz or 96kHz

  • Sample Rate Conversion

    8kHz-96kHz

  • THD+N

    <-140dB

  • Latency

    3/Fso + (56.581/Fsi) + (55.658/Fso)

  • Digital Input Card: Connector 1

    Stereo Audio, Channels 1 and 2 - AES/EBU
    Stereo Audio, Channels 3 and 4 - AES/EBU

  • Digital Input Card: Connector 2

    Stereo Audio, Channels 1 and 2 - S/PDIF
    Stereo Audio, Channels 3 and 4 - S/PDIF

  • Balanced

    Positive: to +
    Negative: to -
    Shield: to S

  • Unbalanced

    Signal: to +
    Signal Ground: to -
    Shield: to S
    Short "S" to "-" for unshielded cable

  • S/PDIF Combicon Connector

    Signal 3 & 4: (S + -) Pins

  • AES/EBU Combicon Connector

    Signal 1 & 2: (S + -) Pins

About BSS Digital Input Card

The Soundweb London Digital Input card is designed to populate any of the four card slots on Soundweb London BLU-800, BLU-805, BLU-806, BLU-320, BLU-325, BLU-326, BLU-160, BLU-120, BLU-80, BLU-32 and BLU-16 devices. These digital cards enable Soundweb London devices to receive AES/EBU and S/PDIF audio signals.

The Digital Input Card can be configured in the following ways:
• 2 Stereo AES/EBU Signals
• 1 Stereo AES/EBU signal / 1 Stereo S/PDIF Signal
• 2 Stereo S/PDIF Signals

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • BSS AES/EBU
  • S/PDIF Digital Input Card
  • BSS 1 Year Limited Warranty
