MIC IN: -40 dBu (MicSens = Center)
GUITAR IN: -10 dBu
MIC IN: 4 k Ohms
GUITAR IN: 1 M ohm
XLR OUT: -40 dBu
PHONES/LINE OUT: -20 dBu
GUITAR THRU: -10 dBu
XLR OUT: 600 Ohms
PHONES/LINE OUT: 33 Ohms
HARMONY, ECHO, ENHANCE
12 x 2 (VARIATION)
3

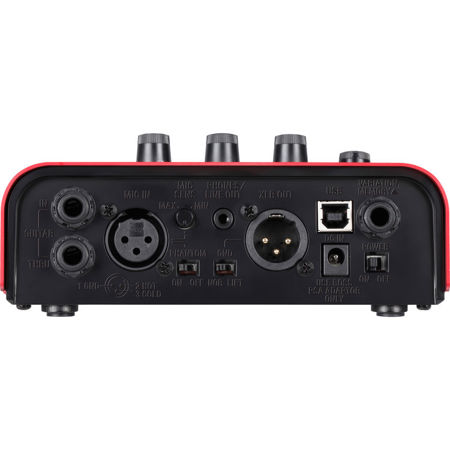

MIC IN jack: XLR type, balanced, phantom power (DC 46 V, 10 mA Max)
GUITAR IN jack: 1/4-inch phone type
GUITAR THRU jack: 1/4-inch phone type
XLR OUT jack: XLR type
PHONES/LINE OUT jack: Stereo miniature phone type
VARIATION, MEMORY INC jack: 1/4-inch TRS phone type
USB COMPUTER port: USB type B
DC IN jack
Rechargeable Ni-MH battery (AA, HR6) x 4
Alkaline battery (AA, LR6) x 4
AC Adaptor (sold separately)
200 mA Max. (9 V)
Rechargeable Ni-MH battery(*1): Approx. 12 hours (phantom power: OFF), Approx. 8 hours (phantom power: ON)
Alkaline battery: Approx. 11 hours (phantom power: OFF), Approx. 7 hours (phantom power: ON)
*1 When using batteries having a capacity of 2,450 mAh.
(These figures will vary depending on the specifications of the batteries and the actual conditions of use.)
Owner's Manual
Leaflet "USING THE UNIT SAFELY"
Alkaline Battery (AA, LR6) x 4
AC Adaptor (PSA series)
Footswitch (FS-5U, FS-6, FS-7)
156 x 116 x 64 mm (6-3/16 x 4-5/8 x 2-9/16")
600g (1.3 lbs)
761294504499
