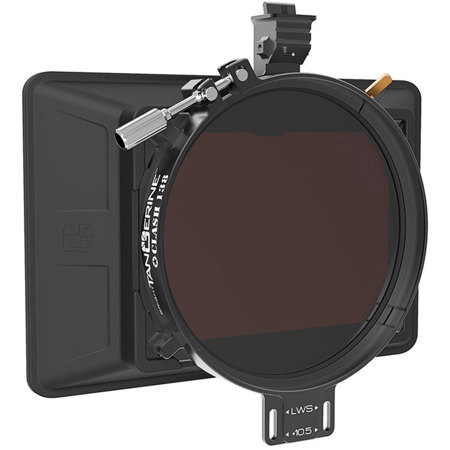

Bright Tangerine Misfit Atom Pola+ Matte Box Bundle with Rota Ring and 143mm to 95mm Clamp-On Ring

- Misfit Atom Pola+ Matte Box -
The Misfit Atom Pola+ matte box is an ultra lightweight matte box that can accommodate up to two 4x4" or 4x5.65" filters and a single 138mm round filter like a circular polarizer. The Misfit Atom Pola+ is an ultra-lightweight matte box, weighing in at only 270 grams, it excels in run & gun setups, aerial shooting, gimbal and Steadicam work. Like the Misfit Atom, the Misfit Atom Pola+ has been designed to accommodate up to two 4x4" or 4x5.65" PV sized filters (or a combination of both) within its frame. The Misfit Atom Pola+ also offers you the option of mounting a single 138mm circular filter, in addition to the two filters already in the frame.

138mm circular filters are mounted using the Misfit Atom Pola+ Rota Ring. Any standard 138mm circular filter from a number of popular manufacturers can be used including polarizers, diopters, split-diopters and FX filters like diffusion. Once mounted, the 138mm circular filter can easily be rotated up to 120 degrees by using the sliding lever on the Rota Ring. This range of motion is more than enough to effectively use a circular polarizer, which only requires 90 degrees of rotation to achieve minimum to maximum effect. Polarizers are a great tool to reduce glare from reflected surfaces and are recommended when shooting into water, through windows and landscapes as the effect can't be recreated in post production.

Diopters are also a great filter to have which are just like a magnifying glass. They also shift the minimal focus distance so you can get macro shots without having to use a macro lens. Diopters come in varying strengths with +1, +2 and +3 being the common strengths. When using a +1 diopter, one additional 4x4" or 4x5.65" can be mounted into the frame. If you are using a +2 diopter, no additional filters can be mounted due to the thickness of the diopter. A +3 diopter can be used with the Misfit Atom Pola+ using the rubber bellows donut or Black Hole.

The circular filter is easily secured inside the Misfit Atom Pola+, with no risk of it falling out whilst filming. When no circular filter is being used, the Rota Ring can be removed to allow the matte box to clamp further onto the lens for a wider field of view. The rubber sunshade provides protection from flares and can be removed for an extra weight saving of 100 grams. This feature is also very useful when filming with drones, as it helps reduce wind resistance. A carbon fibre top flag is also available to provide more protection from the sun or studio lights, helping improve the contrast and resolution of your image. To minimize internal reflections, an optional tilt adaptor can be mounted on the Misfit Atom Pola+ matte box. This additional tilt bracket adds 6 degrees of tilt, for up to two filters.

The Misfit Atom Pola+ has a native 143mm Clamp-On mounting surface, which is also compatible with our clamp-on ring adapters and rubber donuts, allowing for use with a variety of Cine and Photo lenses, including square front anamorphic and telescoping lenses. The clamping screw provides quick and easy mounting to secure the Clash onto the lens. By using the rubber bellows or Black Hole donuts, you can add a second 138mm circular filter, converting the Misfit Atom Pola+ into a 4-Stage Matte Box. A 15mm LWS support bracket for rail mounting can be added to the Misfit Atom Pola+, which can also be adapted for 15mm Studio & 19mm Studio rails.

Misfit Atom Pola+ Core
The Misfit Atom Pola+ is an ultra lightweight matte box that can accommodate up to two 4x4" or 4x5.65" filters. A third filter stage, supporting a single 138mm round filter can also be added using the Misfit Atom Pola+mm Rota Ring.

• Ultra-lightweight at only 270 grams (10 oz)
• Mount up to two 4x4" or 4x5.65" & 138mm Circular filter
• Removable rubber sunshade that saves an additional 95 grams (3.3 oz)
• Supports +1 & +2 diopters
• 143mm Diameter Clamp
• Configurable to rod mount

- Rota Ring -
The Misfit Atom Pola+ Rota Ring is designed to securely mount a 138mm round filter into the Misfit Atom Pola+ Core. The Rota Ring for Misfit Atom Pola+ is used to mount a 138mm circular filter like a polarizer or diopter in the Misfit Atom Pola+. The Rota Ring clamps onto the filter securely with a nut and bolt. When the filter is mounted into the Clash 138mm the lever on the Rota Ring provides easy access to rotate the filter.

- Clamp-On Ring -
Step up lenses of different diameters to a 143mm front diameter. 143mm rings are suitable for the Misfit Atom Pola+, Misfit matte box using a 143mm back as well as the VIV & VIV 5" matte boxes with a 150-143mm reducer ring. The 143mm Clamp on Rings are an optional accessory that has been designed to accommodate lenses of different diameters to a 143mm front diameter. It works as a normal clamp on ring, helping to secure the matte box to the lens while providing light protection with our innovative Z-cuts. The 143mm Clamp On Rings are built from high-grade Delrin to ensure your set up remains light and provide you with maximum durability.
