Bright Tangerine Follow Focus Kit Specifications

  • Compatibility

    Hard Stop:
    Revolvr and Revolver Atom Handwheels
    Follow Focus Swing Arm:
    Industry standard drive gears
    0.8 mod 10-tooth reverse gear
    Marking Disc:
    Industry-Standard Handwheels
    Handwheel:
    Revolvr and Revolvr Atom core bridges
    Industry-standard cranks and whips
    Bright Tangerine 4D speed crank

  • Hard Stop: Material

    Anodized aluminum, stainless steel, rubber

  • LWS Core Bridge: Material

    Titanium, anodized aluminum, and stainless steel

  • Follow Focus Gear (10mm): Material

    Delrin and stainless steel

  • Follow Focus Gear (10mm): MOD

    0.8

  • Follow Focus Gear (10mm): No. of Teeth

    35

  • Follow Focus Gear (6mm): Material

    Delrin and stainless steel

  • Follow Focus Gear (6mm): MOD

    0.8

  • Follow Focus Gear (6mm): Number of Teeth

    43

  • Follow Focus Swing Arm: Material

    Anodized aluminum, stainless steel

  • Marking Disc: Material

    Delrin

  • Marking Disc: Finish

    Smooth for use with dry erase and wet erase markers

  • Handwheel: Material

    Titanium, anodized aluminum, stainless steel, rubber, and Delrin

  • Dimensions

    Hard Stop: 24 x 30 x 46mm (0.94 x 1.18 x 1.81")
    Follow Focus Gear (10mm): 30 x 30 x 22mm (1.18 x 1.18 x 0.87")
    Follow Focus Gear (6mm): 36 x 36 x 22mm (1.42 x 1.42 x 0.87")
    Follow Focus Swing Arm: 30 x 78 x 28mm (1.18 x 3.07 x 1.10")
    Marking Disc: 102 x 102 x 4mm (4.02 x 4.02 x 0.16")
    Handwheel: 108 x 82 x 103mm (4.25 x 3.23 x 4.06")

  • Weight

    Hard Stop: 35g (1.23 oz)
    Follow Focus Gear (10mm): 14g (0.49 oz)
    Follow Focus Gear (6mm): 15g (0.53 oz)
    Follow Focus Swing Arm: 68g (2.40 oz)
    Marking Disc: 23g (0.81 oz)
    Handwheel: 480g (16.93 oz)

  • UPC Code

    755899002870

About Bright Tangerine Follow Focus Kit

FEATURED REVIEWS

By Adam G.

I have worked in film and television since 1984 when most projects were shot on Arriflex and Panavision 35mm and 16mm cameras. I used follow focus units from Chrosziel and Arri exclusively as that is what the rental houses provided with camera packages worth upwards of $200,000. When it came time to outfit my own digital cinema camera those are the brands I looked to but the prices were a bit beyond my budget. I never had to actually buy a follow focus unit before. Having a well built, double...

View full Review

The Revolvr Single Sided Core Kit comprises of the 15mm LWS core bridge which lets you set up your follow focus system on 15mm lightweight rods. The core bridge allows you to set Upon 15mm and 19mm studio rods as well with our additional accessories. The Revolvr Single Sided Core Kit comprises of the 15mm LWS core bridge which lets you set up your follow focus system on 15mm lightweight rods. The core bridge allows you to set Upon 15mm and 19mm studio rods as well with our additional accessories.

This kit also comprises of our Revolvr Handwheel which is an ergonomically designed conical handwheel with anti-slip grip which lets you accurately pull focus in challenging conditions and also comes with a provision for you to mount our torch holster if required. he Revolvr Swing Arm Cine (1:1.842) along with our 0.8 35 tooth and 0.8 43 tooth gears is also a part of this kit and this allows you to set Upon either side of the core bridge for complete flexibility in your set up and the industry standard gears effortlessly connect to the lens ring.

We have included 2 of our marking discs which are compatible with industry standard handwheels and our hardstop / softstop pack which is compatible with both our handwheels and move independently, to let you accurately set your focus range while pulling focus. The Revolvr single sided core kit comprises of the most essential focus pulling tools which have been carefully crafted and assembled in Germany with uncompromised quality. This kit is built from anodized aluminum, stainless steel, rubber and high grade Delrin for maximum durability and resistance to wear and tear.

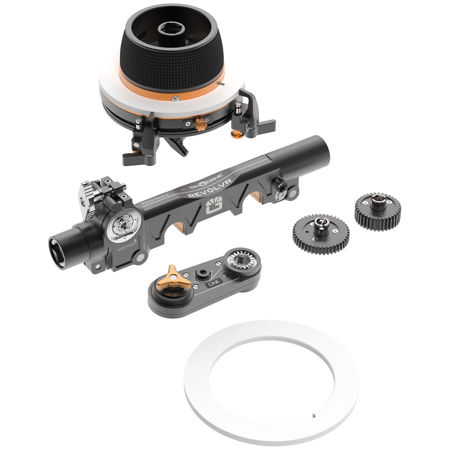

What's in the box:

  • Bright Tangerine Revolvr 15mm LWS Core Bridge
  • Hard Stop Pack
  • Follow Focus Gear (0.8 Mod/35 Tooth/10mm)
  • Follow Focus Gear (0.8 Mod/43 Tooth/6mm)
  • Follow Focus Swing Arm (1:1.842 Ratio)
  • 2x Marking Disc (Large Handwheel)
  • Follow Focus Handwheel (Large)
  • Bright Tangerine 5 Year Limited Warranty
