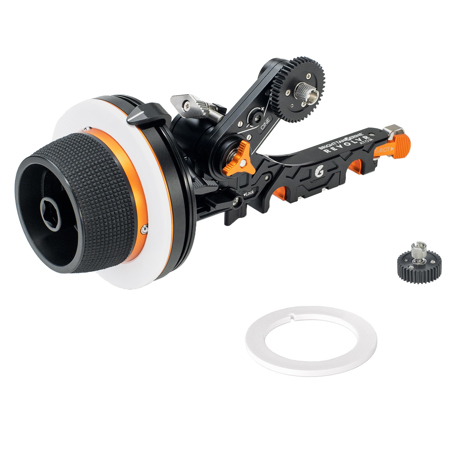

Bright Tangerine Revolvr Atom Cine Kit, Includes 15mm LWS Core Bridge, Follow Focus Gear (0.8 Mod/35 Tooth/10mm), Follow Focus Gear (0.8 Mod/43 Tooth/6mm), Follow Focus Swing Arm (1:1.842 Ratio)

SKU: BT20100002 MFR: B2010.0002
Earn VIP Reward Points

Key Features

  • Achieve smooth, accurate focus pulls with this Bright Tangerine follow focus system.
  • Enjoy precise focus control with the included 1:1.842 ratio swing arm for geared lenses.
  • This follow focus kit's titanium & aluminum build ensures durability and smooth operation.
  • Use the Revolvr Atom with industry-standard handwheels and marking discs for flexibility.
  • Easily adapt to various lenses with the included 0.8 Mod/35 & 43 tooth follow focus gears.
  • The 15mm LWS core bridge offers compatibility with various accessories for your setup.
See More Product Details
Special Order?Estimated to Ship: 09/05/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$119.99

4 Year

$154.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Compatibility
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?CARLOS P : Industry standard compatibility and build quality

Reviews about this item

Review Summary

2018-11-14T19:00:00

Rated 5 out of 5

The Revolvr Atom Cine is as smooth as butter. There’s no backlash and it’s built like a tank. Unlike other FF’s where the 0.8 pitch arm is set to one position, the Revolvr’s arm is able to meet the many different varieties of lenses. What I like most about it is when I’m doing handheld work. The cine version is quite large, but it’s helpful for me when I’m using my shoulder rig that when I’m holding one handle and the follow focus, I have two points of solid contact that doesn’t jostle the focus at all. With its size, it does extend out a little more than regular FF’s, but this is something that I really like. It fits my comfort quite well. If you’re buying this, this will most likely be your last follow focus.

Brian T.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Bright Tangerine Revolvr Atom Cine Kit Specifications

  • Compatibility

    LWS Core Bridge: Revolvr and Revolvr Atom handwheels, the Revolvr 3" Handwheel Extension, and the 4D Speed Crank, as well as the Bright Tangerine 270 deg. focus whip
    Follow Focus Gear (10mm): Revolvr and Revolvr Atom Swing Arms, Cine-Style Geared Lenses
    Follow Focus Gear (6mm): Revolvr and Revolvr Atom Swing Arms, Cine-Style Geared Lenses

  • Compatibility (Cont.)

    Swing Arm: Industry standard drive gears, Bright Tangerine 0.8 mod 10-tooth reverse gear
    Marking Disc: Industry Standard Handwheels
    Handwheel: Our 3" Handwheel Extension, The 4D Speed Crank And The 270mm Flexible Focus Whip, Revolvr & Revolvr Atom Core Bridges and Our Independently Moving Soft Stop / Hard Stop Pack

  • LWS Core Bridge: Material

    Titanium, anodized aluminum, and stainless steel

  • Follow Focus Gear (10mm): Material

    Delrin and stainless steel

  • Follow Focus Gear (10mm): MOD

    0.8

  • Follow Focus Gear (10mm): No. of Teeth

    35

  • Follow Focus Gear (6mm): Material

    Delrin and stainless steel

  • Follow Focus Gear (6mm): MOD

    0.8

  • Follow Focus Gear (6mm): Number of Teeth

    43

  • Swing Arm: Ratio

    1:1.842

  • Swing Arm: Material

    Anodized Aluminum, Stainless Steel and A Custom Rubber Belt for Maximum Durability

  • Marking Disc: Material

    High Grade Delrin

  • Marking Disc: Finish

    Industry-Standard Handwheels

  • Handwheel: Size

    Large

  • Handwheel: Material

    Titanium, anodized aluminum, stainless steel, rubber, and Delrin

  • Dimensions

    Follow Focus Gear (10mm): 30 x 30 x 22mm (1.18 x 1.18 x 0.87")
    Follow Focus Gear (6mm): 36 x 36 x 22mm (1.42 x 1.42 x 0.87")
    Swing Arm: 30 x 78 x 28mm (1.18 x 3.07 x 1.10")
    Marking Disc: 102 x 102 x 4mm (4.02 x 4.02 x 0.16")
    Handwheel: 108 x 82 x 103mm (4.25 x 3.23 x 4.06")

  • Weight

    Follow Focus Gear (10mm): 14g (0.49 oz)
    Follow Focus Gear (6mm): 15g (0.53 oz)
    Swing Arm: 68g (2.40 oz)
    Marking Disc: 23g (0.81 oz)
    Handwheel: 480g (16.93 oz)

  • UPC Code

    755899003068

Designed For Use With:

  • Universal
  • 15mm Rods

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

About Bright Tangerine Revolvr Atom Cine Kit

FEATURED REVIEWS

By Brian T.

The Revolvr Atom Cine is as smooth as butter. There’s no backlash and it’s built like a tank. Unlike other FF’s where the 0.8 pitch arm is set to one position, the Revolvr’s arm is able to meet the many different varieties of lenses. What I like most about it is when I’m doing handheld work. The cine version is quite large, but it’s helpful for me when I’m using my shoulder rig that when I’m holding one handle and the follow focus, I have two points of solid contact that doesn’t jostle the fo...

View full Review

How does the Revolvr Atom Cine Kit elevate your filmmaking experience This meticulously engineered kit is designed to enhance your focus pulling precision, ensuring that every shot is crystal clear. At the heart of the kit is the robust Revolvr Atom 15mm Core Bridge, which seamlessly integrates with 15mm lightweight rods, providing a stable and reliable foundation for your follow focus system. For those utilizing 19mm studio rods, the core bridge expands its compatibility with additional accessories, offering unparalleled versatility.

The kit includes the ergonomically crafted Revolvr Handwheel, featuring a conical design with an anti-slip grip that empowers cinematographers to maintain accurate focus even in the most demanding shooting scenarios. The handwheel also comes equipped with a provision to mount a torch holster, enhancing visibility and precision in low-light conditions.

Accompanying the handwheel is the Revolvr Swing Arm Cine with a 1:1.842 ratio, which can be positioned on either side of the core bridge for complete setup flexibility. This swing arm, in conjunction with the included 0.8 Mod - 35 tooth and 0.8 Mod - 43 tooth gears, ensures a seamless connection to your lens's focus ring, facilitating smooth and effortless focus transitions.

To aid in focus accuracy, the kit features two Revolvr Atom Marking Discs that are compatible with industry-standard handwheels. These discs allow for clear and easy-to-read focus point markings, which can be effortlessly wiped clean for repeated use.

Assembled with precision in Germany, the Revolvr Atom Cine Kit is constructed from a combination of anodized aluminum, stainless steel, rubber, and high-grade Delrin. This selection of materials guarantees maximum durability and resistance to wear and tear, making the kit a reliable companion for professional filmmakers and videographers.

The Revolvr Atom Cine Kit is not just a tool but an extension of your creative vision, offering innovative, durable, high-quality, versatile, and user-friendly components that are essential for achieving the cinematic excellence your projects deserve. Whether you're shooting a feature film or crafting a commercial, the Revolvr Atom Cine Kit is the ultimate follow focus solution that stands the test of time and performance.

Bright Tangerine Revolvr Atom Cine Kit Features

  • 15mm Revolvr Atom Core Bridge
  • Ergonomically Designed Conical Handwheel With Anti-Slip Grip
  • Revolvr Swing Arm Cine (1:1.842) Which Can Be Mounted On Either Side Of The Core Bridge
  • Industry Standard 0.8-35 Tooth And 0.8 - 43 Tooth Gears Which Connect To The Lens Ring
  • Two Revolvr Atom Marking Disc Mini, Which Are Compatible With Industry Standard Handwheels

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Achieve smooth, accurate focus pulls with this Bright Tangerine follow focus system.
  • Enjoy precise focus control with the included 1:1.842 ratio swing arm for geared lenses.
  • This follow focus kit's titanium & aluminum build ensures durability and smooth operation.
  • Use the Revolvr Atom with industry-standard handwheels and marking discs for flexibility.
  • Easily adapt to various lenses with the included 0.8 Mod/35 & 43 tooth follow focus gears.
  • The 15mm LWS core bridge offers compatibility with various accessories for your setup.

What's in the box:

  • Bright Tangerine Revolvr Atom 15mm LWS Core Bridge
  • Follow Focus Gear (0.8 Mod/35 Tooth/10mm)
  • Follow Focus Gear (0.8 Mod/43 Tooth/6mm)
  • Follow Focus Swing Arm (1:1.842 Ratio)
  • Follow Focus Handwheel (Large)
  • 2x Revolvr Atom Marking Disc (Large Handwheel)
  • Bright Tangerine 2 Year Limited Warranty (Extendable to 5 Year with Product Registration)
