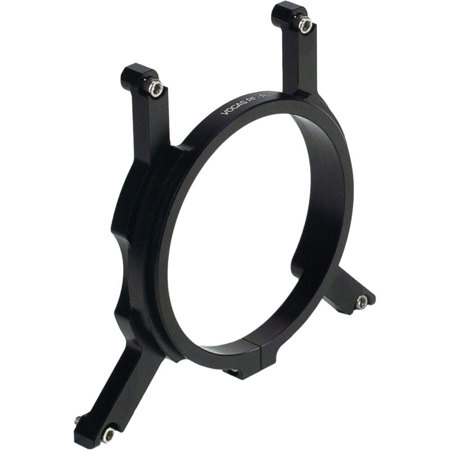

Bright Tangerine Vocas RF-to-PL Lens Adapter Support for RED KOMODO

Secure your Vocas Canon R-mount to PL Adapter onto your RED Komodo, removing any flex or play in the mount. The support uses a 4-point harness and requires the LeftField side & top plates.

This adapter is custom made for the Vocas Canon R-mount to PL Adapter (0900-0018) when using with the RED Komodo. It provides a completely rigid mount. And it's interchangeable with any of the other LeftField Adapter Supports for the RED Komodo.

Rigid support in any situation.
Securing your adapter is vital to eliminate movement which can cause issues with back focus, lens calibration and shim configuration.

The LeftField Adapter Supports create a 4-point harness by connecting to the adapter which is then secured to both the left, right and top rails anchored to the camera. This secures the adapter against forces in any axis of movement, whether the camera is moving at 100mph on a tracking vehicle, doing pans on a tripod or in a fast-paced handheld situation.

What you'll need
You'll need the LeftField Side Plate Kit (B4002.0015) & Top Rail (B4002.1007) or Run/Stop Top Rail.

Unlike other mount support systems, the LeftField Adapter supports don't require the baseplate to be attached, so it can be used on minimal camera builds for handheld, aerial and gimbal work. When using larger lenses, we still recommend using a lens support, such as rods, to remove any flex from the lens to the mount.

What's included
The support comes included with five M3x10mm screws for attachment. You will require a 2.5mm Hex Allen key.
