This item is no longer available.
Review Summary
Aluminum
Aluminum
15mm LWS

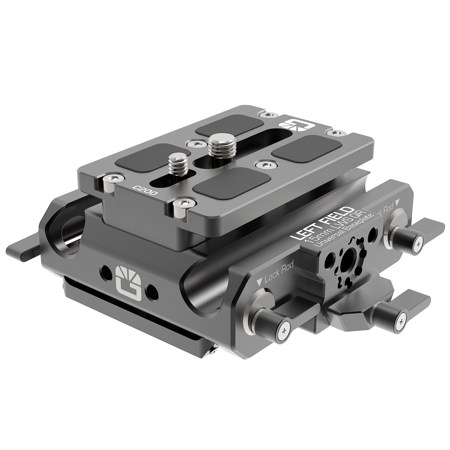

Left Field 15mm LWS Baseplate and Sliding Top Plates
Multiple:
1/4"-20
3/8"-16:
ARRI accessory mounts
Canon C200, C200B, C700 & C700 FF Cameras
QR Baseplate: 4.9 x 3.9 x 1.2" (12.45 x 9.91 x 3.05cm)
Dovetail Plate: 3.9 x 2.6 x 0.3" (9.91 x 6.60 x 0.76cm)
QR Baseplate: 12.4 oz (351.53g)
Dovetail Plate: 2.6 oz (73.71g)
Add 15mm rod support for accessories with an ARRI dovetail standard quick release base. This kit is compatible for the Canon C200 & C700. The Left Field Quick Release Baseplate provides 15mm rod support for accessories with an ARRI dovetail standard quick release base. The baseplate has an ARRI standard dovetail clamp which can be used with the Left Field ARRI Dovetail Plate to provide a quick release for the camera to go from tripod to shoulder mount or gimbal setups. The sliding base also allows for fine adjustment to provide optimal balance for the camera operator.
Multiple 1/4"-20 & ARRI 3/8" Accessory mounts on the baseplate allow for additional accessories to be mounted on to the baseplate as well as side plates for a complete camera cage solution. The baseplate mounts two industry standard 15mm LWS rods which are secured with the kip levers. If you need to travel frequently, two sets of shorter rods can be used to create a longer rod mount, making it easier to pack. If a single set of long rods is used, the front and rear kip levers can be used to provide extra rigidity.
This baseplate kit is compatible with the Canon C200, C200B, C700 & C700 FF. If you own, rent or work with multiple cameras, you can use the baseplate with other camera systems by swapping out the riser block. The baseplate also features mounting points for sideplates to create a complete cage solution together with the Left Field top plates. Designed to last, the baseplate is machined from a single block of aluminum to handle the most extreme environments.
Canon C200/C700 Riser for Universal Baseplate Core
Set the Canon C200/C700 to the correct height when using the Left Field 15mm LWS Baseplate.
Sets camera at correct optical height for the 15mm LWS rod standard
Compatible with the Canon C200, C200B, C700 & C700 FF
Interchangeable to configure baseplate for other cameras
Left Field 15mm LWS QR Universal Baseplate Core
The Left Field 15mm LWS Quick Release Baseplate Core is a universal baseplate that can be used with multiple camera systems by simply swapping the riser blocks. It uses an ARRI standard dovetail and can also be used with the Left Field ARRI Dovetail Plate.
Adaptable to multiple camera systems with Riser blocks
ARRI Dovetail standard
Front & Rear 15mm LWS rod mounts
Multiple accessory mounts
Rugged single block design
Left Field ARRI Dovetail Plate
The Left Field ARRI Dovetail Plate is a quick release cheese plate that is compatible with the Left Field 15mm LWS Baseplate and Sliding Top Plates.
Versatile quick release plate for camera or top mounted accessories
Ability for fine adjustment of counter balance
Multiple 1/4", 3/8" & ARRI Accessory Mounts
Removable safety screws to prevent sliding out
Option to place the Dovetail Plate into fixed position with safety screws
