Bright Tangerine DJI Ronin 2 Riser Kit for RED V-RAPTOR Camera Baseplate

Speed up transitions between tripod, handheld & the DJI Ronin 2 with this riser kit.

This kit sets the camera to the correct height for 15mm LWS and includes the DJI Ronin 2 riser & dovetail for the RED V-RAPTOR to connect with the LeftField 15mm LWS Universal Baseplate.

Set up the RED V-RAPTOR for 15mm LWS configurations with the ability to quickly switch between the DJI Ronin 2 & the LeftField 15mm LWS Baseplate. Using the three captive screws on the captive shuttle, the camera can be securely mounted with no twisting or movement.

DJI Ronin 2 Compatible
The dovetail is compatible with the DJI Ronin 2, allowing it to be loaded directly onto the gimbal without the need to change camera plates. The extra length provides ample room for balancing & adjustment.

Laser etched markers along the length of the dovetail let ACs mark down balanced positions on the gimbal.

Support for Accessories
Lens adapters can be secured using the front channel and supplied screws. Three M4 points can be used to mount the DJI Focus Motor Rod Mount.

No compromises
Machined and hand-finished in our single factory in Church Crookham from high-grade materials. Hard anodized for extended durability.

- DJI Ronin 2 Riser for 15mm Baseplate & RED V-RAPTOR -
Set the RED V-RAPTOR to the correct height when using the Left Field 15mm LWS Baseplate & DJI Ronin 2 Dovetail. The quick release allows for fast transitions between tripod & gimbal work without needing to change plates.

This interchangeable riser combines with the LeftField Universal 15mm LWS Baseplate and B4002.1058 DJI Ronin 2 Dovetail to set the RED V-RAPTOR at the correct height for 15mm LWS standards. The quick release clamp enables fast transitions between tripod, handheld & gimbal setups.

Reliable & Safe
The dovetail is secured using a 4mm Hex key which enables the operator to securely tighten down the clamp with a higher force than a lever. There is also no risk of levers being knocked during operation.

Additional safety points prevent the camera plates from sliding out accidentally.

Features
• Sets RED V-RAPTOR to 15mm LWS height standards when using B4002.1058 DJI Ronin 2 Dovetail for RED V-RAPTOR
• Compatible with DJI Ronin 2 camera plates (height may vary between plates)
• Interchangeable with other LeftField Baseplate Risers
• Integrated safety prevents accidental release, secured with 4mm Hex key

- Universal Extended DJI Ronin 2 Dovetail -

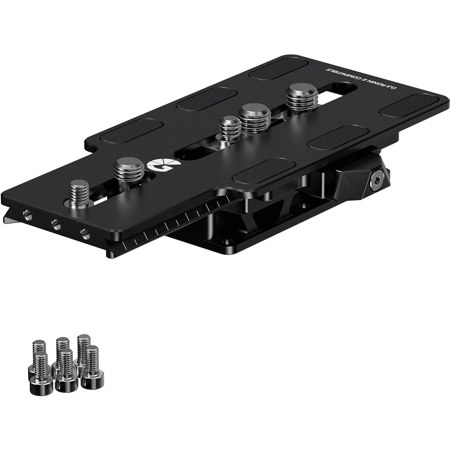

Mount your camera on the LeftField DJI Ronin 2 Dovetail to quick release between the LeftField 15mm LWS Baseplate and the DJI Ronin 2 without changing plates. Lens adapters can be supported using the included 3/8" or 1/4" screws.

This dovetail mounts onto your camera and lets you quickly switch between the LeftField 15mm LWS Baseplate to gimbal or handheld in seconds. It also lets you mount the camera directly onto the DJI Ronin 2 and Universal Tripod Adapter.

Universal Fit
The dovetail includes three camera mounting screws (two 3/8-16" & a 1/4-20"). Using the three captive screws on the captive shuttle, the camera can be securely mounted with no twisting or movement.

The channel allows the camera to be balanced on the plate for weight distribution with the extra width providing added stability while removing any flex. The screws can be removed when not required for smaller cameras with one or two mounting points.

Support For Accessories
Lens adapters can be secured using the front channel and supplied screws. Depending on the camera height, not all lens feet will be compatible or require spacers.

Features
• Compatible with any camera, DJI Ronin 2 & Universal Tripod Adapter
• Slides onto LeftField 15mm LWS Baseplates with compatible DJI Ronin 2 risers
• 144mm length provides ample fore/aft range with racking gear
• Shuttle slides fore/aft to balance camera and keep screws captive
• Wide platform for extra stability with rubber pads for grip
