Bright Tangerine DJI RS 4/RS 3 LeftField 3 Quick Release Baseplate for RED V-RAPTOR Camera

Add a dual-stage quick-release base to your RED KOMODO. Simply release the top stage to transfer straight to a DJI RS 4 or RS 3 gimbal and the lower stage for any ARRI standard dovetail.

Kit includes: The LeftField 3 15mm LWS Baseplate core, Low profile dovetail plate, the DJI riser and the Universal DJI RS 4 & RS 3 dovetail.

This Bright Tangerine baseplate kit is designed for RED KOMODO, DJI RS 4 & RS 3 gimbal users wanting to add the quick-release 15mm LWS baseplate with support for 15mm rods. The top stage releases the DJI RS 4 & RS 3 compatible dovetail, so you can quickly transition to gimbal mode, and the lower stage allows you to securely lock off the camera onto any ARRI standard balance plate. The whole kit combined is extremely light-weight & low profile, which keeps all of your Komodo builds, nimble and compact.

Unique Open UP Quick-release System
The Baseplate kit features our patented Open UP Quick-Release system that lets you slide, lock & vertically release the camera from any ARRI standard balance plate, or the included low profile dovetail plate.

Made for:
It is compatible with the DJI RS 4 Pro, RS 4, RS 3 Pro, RS 3 & RS 2 gimbals. The riser is also compatible with camera plates using the Manfrotto 501 standard.

LeftField 3 System
Customize your camera build with the extensive selection of accessories in the LeftField system. Letting you create the right setup for each and every task.

This kit has been updated to LeftField 3 and is not compatible with LeftField 2 accessories.

No Compromises
Every part of the LeftField System is machined from single aluminum-alloy billets to create extremely rigid and light weight components. All of which play perfectly to the strengths of Komodo.

Absolutely no compromise has been made in our manufacturing process. Our engineering is focused on creating products that are both high-performance and enabled with a longer life of service. Combine that with unparalleled level of Bright Tangerine support, and your LeftField Komodo System becomes the most reliable and hard-working partnership that any filmmaker could wish for.

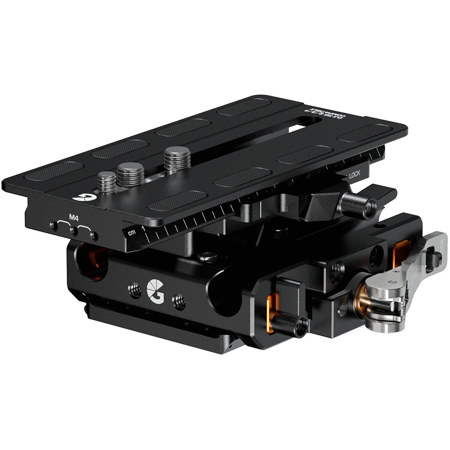

- LeftField 3 15mm LWS Quick Release Baseplate Core -
Upgrade your production with the LeftField 3 15mm LWS Quick Release Baseplate Core, streamlining your filming workflow and helping you accomplish more in less time.

Add a riser for your compatible camera and securely lock onto any ARRI standard balance plate or dovetail.

With support for 15mm rod support, you can outfit your camera for any cinematic challenge.

Upgrade your production with the LeftField 3 15mm LWS Quick Release Baseplate Core, streamlining your filming workflow and helping you accomplish more in less time.

Vertical Lift Off
Feel secure with our patented Open Up quick release system, providing the confidence that your camera will remain safely and securely locked off, with no danger of it slipping or falling off.

The lever has three positions - locked, slide & release.
• When the lever is in its rearmost position, the bridgeplate locks firmly into place
• Position the lever to the midpoint, allowing you to shift your bridgeplate along the balance plate with ease
• To release the camera, press the safety eject button on the lever and adjust the lever to its forward position

Accessory Mounting
The baseplate offers a secure and sturdy foundation for mounting accessories on 15mm rods, including lens supports, focus motors, matte boxes, hand grips and more. When you pair our Drumstix rods with the bridgeplate, you'll get a combination of strength and lightweight performance that can't be beaten.

The sides feature mounting points for compatible side plates and the rear has mounting points for the LeftField 3 KASBAH Shoulder Pad.

British Workmanship
Machined and hand-finished in our single factory in Church Crookham from high-grade materials. Hard anodized for extended durability.

Features
• Compatible with multiple camera systems using LeftField risers, setting correct 15mm LWS height and spacing
• Safe and reliable Open UP quick release system
• Compatible with LeftField 3 & ARRI standard balance plates
• Compatible with KASBAH shoulder pad
• Mounts onto any ARRI standard bottom plate & LeftField 3 balance plates

- Manfrotto & DJI RS 4 Riser -
Set the RED KOMODO & KOMODO-X to the correct height when using the LeftField 15mm LWS Baseplate & Universal DJI RS 4 & RS 3 Dovetail.

The quick release allows for fast transitions between tripod, handheld & gimbal work without needing to change plates.

This DJI RS 4 & RS 3 Riser for RED KOMODO & KOMODO-X mounts to the LeftField 15mm LWS Baseplate and sets your camera to the correct height for use with 15mm LWS rods and accessories.

Compatibility
This riser is compatible with a number of dovetails but primarily designed to pair with B4003.1040 - Universal DJI RS 4, RS 3 & RS 2 Dovetail.

It is also compatible with older DJI RS 2 & RS 3 Dovetails including B4002.1018, B4002.1019, B4003.1030, B4003.1031 & B4002.1071.

In addition to DJI RS dovetails, it is also compatible with Manfrotto 501PL standard dovetails & plates.

Extra care comes standard
Machined and hand-finished in our single factory in Church Crookham from high-grade materials. Hard anodized for extended durability.

Features
• Sets the KOMODO & KOMODO-X to 15mm LWS height standards when using Bright Tangerine DJI RS dovetails
• Designed for the LeftField 15mm LWS Baseplate
• Compatible with DJI RS 4, RS 3 & RS 2 Dovetails
• Integrated safety prevents accidental releases

- Universal DJI RS 4 & RS 3 Dovetail -
Mount any camera on the DJI RS 4 Pro, RS 4, RS 3 Pro, and RS 3 gimbals, this universal accessory replaces the standard two-stage plate with a flat, low-profile dovetail for precise camera positioning.

Featuring 144mm of sliding travel for easy balancing and a wide platform for enhanced stability, this design accommodates both large and small camera setups with ease.

Compatible with DJI RS 4 Pro, RS 4, RS 3 Pro, RS 3 & earlier RS gimbals, this universal accessory enhances your setup by replacing the standard two-stage plate with a flat, low-profile dovetail. This allows for precise camera positioning without adding extra height.

The design includes 144mm of sliding travel to achieve optimal balance and a wide platform for better stability. It accommodates both large and small camera setups effectively, ensuring your equipment is secure and well-balanced.

Designed for Mirrorless & Cinema Cameras
The plate is designed to accommodate a range of camera shapes and sizes, from small mirrorless cameras like the Sony A7, Canon R5 & Nikon Z series of cameras to larger cinema cameras like the RED KOMODO-X, Sony FX6, Canon C400 & more.

Unlike the stock DJI plate, the universal dovetail accommodates cameras using both 1/4" & 3/8" mounting points.

Easily balance your gimbal
When setting up your camera, position it anywhere along the dovetail for optimal weight distribution. Slide it forward for larger setups with rear mounted accessories, or slide it backwards for smaller mirrorless setups, utilizing the 144mm of travel.

This not only allows you to center the setup on the dovetail but also provides a balanced starting point when mounting it on the gimbal, minimizing the need for counterweights and reducing strain on the motors.

The dovetail also maintains ability to use the fine tuning knob on the DJI gimbals.

Wide & Flat with no extra height
The broad, flat surface of the universal dovetail ensures your camera remains stable, maximizing surface area to eliminate any flex. Rubber grips prevent twisting, even with smaller cameras.

The camera remains low, creating a natural pivot point for smooth operation with the gimbal.

With a flush front & rear, the dovetail won't collide or cause compatibility issues with PL, electronic ND & other lens adapters.

Compatible with DJI RS 4 Pro & RS 4 and earlier models
The universal dovetail is compatible with the latest DJI RS 4 Pro & RS 4, and earlier RS 3 & RS 2 generations.

Instant transition to the LeftField 15mm LWS Baseplate
The universal RS4 dovetail seamlessly mounts onto the LeftField 15mm LWS baseplate when paired with compatible risers.

- Left Field ARRI Dovetail Plate -
The Left Field ARRI Dovetail Plate is a quick release cheese plate that is compatible with the Left Field 15mm LWS Baseplate and Sliding Top Plates.

The LeftField ARRI Dovetail Plate is a multipurpose quick release plate featuring multiple 1/4", 3/8" & ARRI Accessory Mounts.

The low profile plate is based on the ARRI standard dovetail and acts as a quick release plate for a camera setup using the LeftField 15mm LWS Baseplate making the transition going from tripod to handheld much quicker.

When used with the LeftField Sliding Top Plates, the Dovetail plate provides a mounting surface for other accessories like the carrying handle and Titan Arm quick release brackets.

Two removable safety screws prevent the plate from sliding out of the receiving accessory. These two screws can also be mounted on the right side of the plate to fix the dovetail plate into position.

The LeftField ARRI Dovetail Plate can also snap in and out by releasing the Dovetail clamp further. This is especially handy if you have other accessories mounted onto your camera setup which can obstruct the camera package from sliding on and off the plate.
