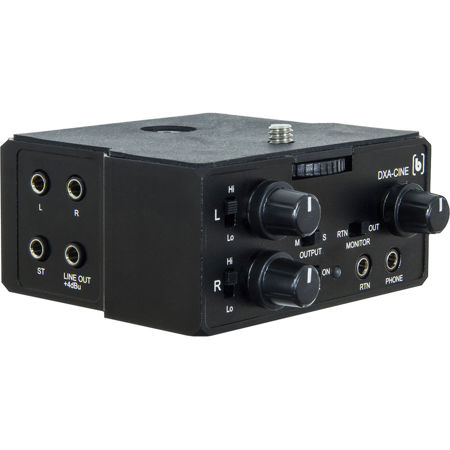

BeachTek DXA-CINE Mini-Plug Audio Adapter for Cinema Cameras

You can capture pristine audio directly to your cinema camera with the DXA-CINE Mini-Plug Audio Adapter, eliminating the need for post-production syncing. Designed specifically for the discerning filmmaker, this adapter boasts ultra-low-noise preamplifiers that deliver superb audio quality with an impressive 60dB of gain and over 100dB in dynamic range, making it an ideal companion for industry-standard cameras like the RED DSCM2 or ARRI ALEXA Mini.

The DXA-CINE's compact and lightweight chassis is engineered for seamless integration with your camera setup. It can be easily mounted to a camera, cage, or rails, ensuring a secure and unobtrusive fit. The adapter's construction features top-quality components, offering outstanding reliability and durability that professionals can rely on.

Externally powered via a 2-pin LEMO connector, the DXA-CINE is designed for continuous operation during extended shooting sessions. The adapter comes equipped with intuitive controls and monitoring features. Built-in Low/Good/Over level indicators allow for quick verification of signal levels, while trim controls enable precise adjustment of the output signal for optimal recording quality. A headphone jack is also provided for real-time audio monitoring during recording or playback.

The DXA-CINE is exceptionally versatile, supporting both mono and stereo microphones. It includes two mono and one stereo 3.5mm inputs with plug-in power, compatible with a wide range of camera-mounted mics or lapel mics. For those using wireless mics, this adapter is an ideal choice. Additionally, optional XLR to 3.5mm cables are available for use with self-powered balanced XLR microphones.

For professionals requiring balanced audio, the DXA-CINE provides a +4dBu balanced 5-pin XLR output (via an optional cable) for connection to balanced mic inputs, as well as an unbalanced 3.5mm TRS output (via the included cable) for connecting to unbalanced inputs. This dual-output capability ensures compatibility with any camera system.

A unique and highly useful feature of the DXA-CINE is its audio bracketing capability. When using a single mono microphone, you can set up a second channel as a backup, recorded at a lower level to provide a safety track in case of distortion from an overly hot input.

Mounting the adapter to your rig is effortless, thanks to the built-in thumbscrew with a 1/4" / 20 mounting bolt, allowing for attachment to any threaded hole. The removable brass mounting foot also enables attachment to a hot shoe. Additionally, three built-in 1/4" / 20 threaded inserts offer the flexibility to attach multiple accessories, further enhancing the adapter's utility on set.

In summary, the DXA-CINE Mini-Plug Audio Adapter is a durable, compact, high-quality, versatile, and user-friendly solution for filmmakers seeking to elevate their audio capture capabilities without compromising on portability or reliability.
