Bestview S17F 17" 4K 2x HDMI,4x 3G-SDI Quad Split Broadcast Monitor, 3840x2160

Desview S17F 17" 4K 2x HDMI, 4x 3G-SDI Quad Split Broadcast LED Monitor, 3840x2160

SKU: BVS17F
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Desview S17F Specifications

  • Display Size

    17" 10bit IPS

  • Aspect Ratio

    16:9

  • Display area (WxH)

    382x214mm

  • Resolution

    3840x2160

  • Response time

    10/15(TPY)(Tr/TD)

  • Brightness

    400cd/m2

  • Contrast Ratio

    1000:1

  • View angel

    L/R 178 deg. (89 deg. /89 deg.), U/D 178 deg. (89 deg. /89 deg.)

  • LED Back lightlife

    50000 hours

  • Inputs

    4x SDI, 2x HDMI, Tally RJ45, Audio(L/R)

  • Outputs

    4x SDI, Stereo Headphone, Speaker(built-in)

  • HDMI (Audio R.L two-channel output)

    720x480i & 720x480p at 59.94, 60Hz
    720x576i & 720x576p at 50Hz
    1280x720p at 50, 59.94, 60Hz
    1920x1080i at 50, 59.94, 60Hz
    1920x1080p at 24, 25, 29.97, 30Hz
    1920x1080p at 23.93, 24, 25, 29.97,30,50,59.94,60Hz
    3840x2160p at 24,25,30 60Hz
    4096x2160p at 24Hz

  • 3G-SDI (Audio R.L two-channel output)

    720x480i at 59.94, 60Hz
    720x576i & 720x576p at 50Hz
    1280x720p at 50, 59.94, 60Hz
    1920x1080i at 50, 59.94, 60Hz
    1920x1080p at 24, 25, 29.97, 30Hz
    1920x1080p at 23.93, 24, 25, 29.97,30,50,59.94,60Hz

  • Power

    AC Built: 110V-265VAC, 50-60 Hz / DC 12V 2A
    <=26W TPY

  • Temperature range

    -10 to 60 deg. C (14 to 140 deg. F)

  • Operating Storage

    -20 to 80 deg. C (-4 to 176 deg. F)

  • Humidity

    10% -90%

  • Storage humidity

    5% -90%

  • Certifications

    FCC, CE, ROHS, KCC

About Desview S17F

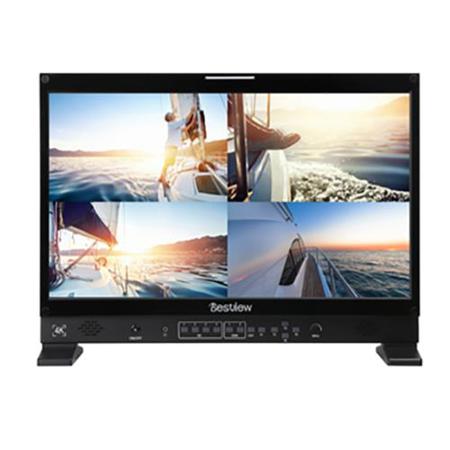

The Bestview 4K UHD LED broadcast monitor features a 17" screen with multiple viewing options, including built-in quad and multiview, supports 2x HDMI 2.0 input support 4K signal and up to 4K 60Hz(3840x2160 60Hz), 4x 3G-SDI input and output Multi view (PIP & PBP function), as well as a high contrast display for the ultimate cinematic experience with professional color calibration, covered REC709. This monitor is ideal for ENG news crews, TV stations, production studios and directors in live and post production applications. The UHD 3840x2160 resolution supports 4K signals with a 16:9 LED display and 178deg. wide viewing angles for consistent images from any perspective.

Desview S17F Features

  • 17" 10bits IPS 4K Viewing Screen
  • Multi view (PIP & PBP function)
  • Battery information display
  • 4x 3G-SDI input and output; 2xHDMI 2.0 input support 4K signal and up to 4K 60Hz(3840x2160 60Hz)
  • Dual power supply system(V mount or gold mount)
  • Gamma selection(1.8/2.0/2.2/2.4)
  • Add glass protect the panel
  • Display menu (OSD) / push-button control

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Bestview S17F 17 " 4K Multi View Quad Split Broadcast LED Monitor
  • Sun-Hood
  • HDMI Cables
  • Wipe Cloth
  • SDI Cable
  • Standard Operating Instruction
  • Bestview 1 Year Warranty and Lifetime Free Maintenance
