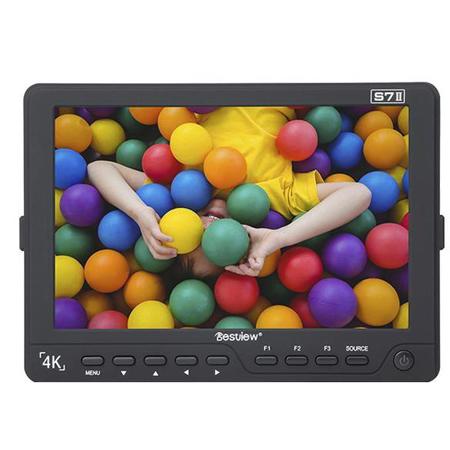

Desview S7II 7" IPS Field LED Monitor, 1920x1200, HDMI (4K Support) and 3G-SDI Input/Output

SKU: BVS7IISDI

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Shopper : What type of battery does this device use?ANDREW R : Can use Sony F970 or Canon LP-E6 type batteries

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Desview S7II Specifications

  • Display Size

    7" digital high-definition LCD , has a thin, LED back light, wide viewing angle

  • Aspect Ratio

    16:9

  • Display Area (WxH)

    151.2 x 94.5mm (5.95 x 3.72")

  • Resolution

    1920x1200

  • Response time

    10/15(TPY)(Tr/TD)

  • Display menu (OSD) / Push-button Control

    Yes

  • Brightness

    450cd/m2

  • Ratio

    1100:1

  • View angel

    L/R: 178 deg. (89 deg. /89 deg.), U/D: 178 deg. (89 deg. /89 deg.)

  • LED Back lightlife

    50000 hours

  • Inputs

    1x HDMI
    1x 3G-SDI

  • Outputs

    1x HDMI
    1x 3G-SDI

  • HDMI

    720x480i & 720x480p at 59.94, 60Hz
    720x576i & 720x576p at 50Hz
    1280x720p at 50, 59.94, 60Hz
    1920x1080i at 50, 59.94, 60Hz
    1920x1080psf at 24, 25, 29.97, 30Hz
    1920x1080psf at 23.93, 24, 25, 29.97,30,50,59.94, 60Hz
    3840x2160p at 24,25,30Hz
    4096x2160P at 24Hz

  • 3G-SDI

    720x480i at 59.94, 60Hz
    720x576i & 720x576p at 50Hz
    1280x720p at 50, 59.94, 60Hz
    1920x1080i at 50, 59.94, 60Hz
    1920x1080psf at 24, 25, 29.97, 30Hz
    1920x1080p at 23.93, 24, 25, 29.97,30,50,59.94, 60Hz

  • Power

    AC Built: 110V-240VAC, 50-60 Hz / DC 12V 2A
    <=11W TPY

  • Wide Voltage

    AC 110V-240V, DC9-24V

  • Temperature range

    -10 to 60 deg. C (14 to 140 deg. F)

  • Operating Storage

    -20 to 80 deg. C (-4 to 176 deg. F)

  • Humidity

    10-90%

  • Storage humidity

    5-90%

  • Certifications

    FCC, CE, ROHS, KCC

  • Thickness

    26mm (1.02")

  • Weight

    350g (12.35 oz)

  • UPC Code

    608065583164

2 Accessories for Desview S7II 7" IPS Field LED Monitor, 1920x1200, HDMI (4K Support) and 3G-SDI Input/Output

  • All Accessories (2)
  • Batteries & Power Supply (2)

About Desview S7II

Bestview S7II is a professional monitor with 10bit IPS, which has a 1920x1200 physical resolution, up to 323.54PPI, a 178 degree viewing angle, making every pixel of your image clear and crisp and ensuring pictures with more perspective without overlapping your picture. Besides, Bestview S7II features a series of professional functions such as Histogram, waveform, internal color bar, zebra , Peaking filter (Monochrome), Check field, Center mark (five color) and Safe area.

• 4K HDMI/3G-SDI 7 Inch field monitor use IPS 1920x1200 high resolution Wide viewing angle hard screen technology(Physical resolution:1920x1200)
• Bestview professional color technology! True color High Definition, No color cast accurate distortion, Shooting images showing real sporty!
• Perfectly support for all signal formats, compatible with almost all professional camera camcorder of the market!

You are available for input/output by HDMI or 3G-SDI port. Sony F970, Canon LP-E6 and power adapter are your power choice whether you are having a studio or outdoor photography. The most considerate thing is Bestview S7II is only 26mm thickness and weight 350g, really a portable companion for your film work.

Professional Software Features
• Histogram, internal color bar, zebra , Peaking filter(Monochrome), Check field, Center mark(five color), Safe area, Under scan/Over Scan, Ratio, Check Field(B/W/R/G/B), DSLR mode, Display mode switching(five modes), Pixel to pixel, Freeze, Up and down flip(U/D, R/L), Noise
• Reduction, Bestview 10x zoom in (X1.4 X2 X4 X8 X10)
• Professional and comprehensive interfaces: HDMI input and output, 3G-SDI input and output

What's in the box:

  • Bestview S7II 7 " IPS Field LED Monitor
  • Sun-Hood
  • Sun-Hood Frame
  • Power Adapter
  • Battery Plates
  • HDMI Cable
  • Screws
  • Hot Shoes
  • Operating Instruction
  • Bestview 1 Year Warranty and Lifetime Free Maintenance
