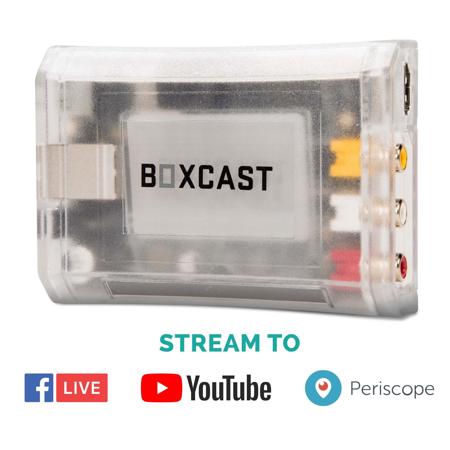

BoxCast BoxCaster HD Live Video Streaming Encoder

SKU: BXCBXCHDSD2

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

BoxCast BXC-HDSD2 Specifications

  • Video & Audio

    HDMI input (480i to 1080p60)
    RCA composite input (NTSC/PAL)
    HDMI or RCA stereo line in (48 kHz)
    Hardware encoder
    H.264 high profile level 4.2
    1080p/30fps output
    AAC-LC audio compression

  • Backhaul Protocols

    BoxCast Flow: Backhaul protocol providing adaptive recovery, content-aware forward error correction, encryption, link quality adjustment, and TCP/UDP diversity

  • Audio Encoding

    AAC-LC audio compression

  • Supported Input Resolutions

    1080p at 25/29.97/30/50/59.94/60 fps
    1080i at 50/59.94/60 fps
    720p at 25/29.97/30/50/59.94/60 fps
    576p at 25/50 fps
    525p at 60 fps
    480p at 29.97/30/59.94/60

  • Streaming Resolutions

    1080p30 input encodes 1080p at 27 fps
    1080i60 input encodes 1080p at 23 fps
    1080p60 input encodes 720p at 30 fps
    720p60 input encodes 720p at 30 fps
    Up to 720p30 inputs encode at same resolution

  • Streaming Destinations

    BoxCast Platform, including native players for Web, mobile, AppleTV, and Roku
    Facebook Live
    YouTube
    Periscope
    Twitch
    Other RTMP destinations

  • Additional Connections

    USB input for BoxCast wireless scoreboard adapters
    10/100BASE-T Ethernet input

  • Networking

    IP address assignment via DHCP
    802.11agn Wi-Fi with beam forming MIMO
    10/100BASE-T Ethernet port
    Automatic device firmware upgrade
    No firewall configuration needed to stream

  • Power

    Power Input: 9V-24V DC, center positive
    5W to 10W nominal power consumption with USB accessories

  • Stream Configuration

    Centralized device and broadcast event management through BoxCast.com
    Automatic stream scaling to serve any sized audience
    Automatic video archiving with VOD playback
    Automatic credit card processing for ticket purchase based viewing
    Automatic bitrate profiles (5 levels for smooth playback)
    Promotion Tools for Email, Twitter and Facebook

  • Video Player Compatibility

    BoxCast is designed to work with any modern device

  • Enclosure

    Rugged bullet-proof plastic
    Slip-free, dampening rubber feet

  • Temperature

    0 to 70 deg. C (32 to 158 deg. F)

  • Humidity

    0% to 90% non condensing

  • Dimensions (WxDxH)

    4.34 x 3.06 x 0.94" (11.02 x 7.77 x 2.39cm)

  • Weight

    0.5 lbs (0.23kg)

  • UPC Code

    859492004009

About BoxCast BXC-HDSD2

With just power, an internet connection and a camera, you can stream your events live to anyone anywhere on any device. It's the easiest way to stream professional quality video.

** Note: 1 year subscription required to use this item - see accessories tab page for options

Simple
BoxCast is the simplest live HD-streaming solution available. All you need to stream live is power, an internet connection and a video camera. Plus, we'll automatically archive all your events so you don't have to do any additional work.

Reliable
With BoxCast, you schedule your broadcast ahead of time meaning one less thing to keep track of on the day of your event. Your viewers will get a perfectly-sized picture on any device - smartphone, tablet or computer. And with no buffering or annoying ads, your viewers won't be distracted from your streamed content.

Affordable
For one low price, you can stream unlimited events to unlimited viewers and store content indefinitely without worrying about overages.

How does BoxCast streaming work

Capture
BoxCast can acquire video from numerous sources including cameras, switchers and iOS devices. BoxCast BoxCaster Encoder Icon

Deliver
BoxCast sends video to the cloud and optimizes it so that viewers anywhere can watch the stream live. BoxCast Viewers multi-device responsive icon

Watch
BoxCast gives your viewers a professional experience on any device.

What's in the box:

  • BoxCast BoxCaster HD Live Video Streaming Encoder
  • 12 VDC Power Supply
  • BoxCast 1 Year Limited Warranty
