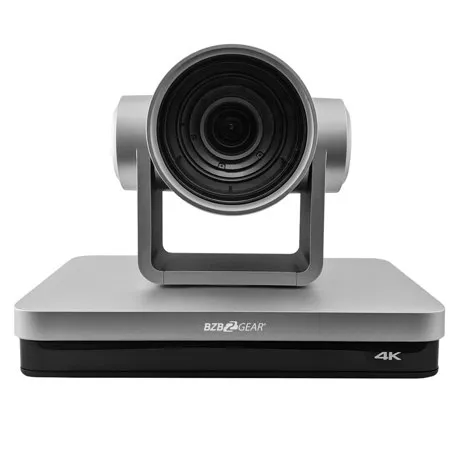

BZB GEAR BG-4KPTZ-12XUHP 4K HDMI/USB 3.0 Live Streaming 12x PTZ Camera, Gray

SKU: BZ4KP12XUHP MFR: BG-4KPTZ-12XUHP
Earn VIP Reward Points

Key Features

  • Capture stunning 4K video with the 12x zoom PTZ camera for crystal-clear detail.
  • Stream live events via HDMI/USB 3.0, perfect for broadcasting and remote conferencing.
  • Enjoy easy control with multiple interfaces, including RS232 and LAN (POE) connectivity.
  • This PTZ camera's Sony CMOS sensor ensures excellent image quality even in low light.
  • Use the versatile PTZ camera for lectures, webinars, and professional video production.
  • Remotely adjust pan, tilt, and zoom; this PTZ camera offers flexible coverage and control.
See More Product Details
Free Expedited Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$159.99

4 Year

$191.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

BZB GEAR BG-4KPTZ Specifications

Camera Parameters

Camera Parameters

Jump to...
  • Optical Zoom

    12X

  • Focal Length

    f=3.85 mm- 43.06 mm +/-5%

  • FOV

    Horizontal:7.59 Degree (tele)- 80.4 Degree (wide)
    vertical:4.6 Degree (tele)- 50.0 Degree (wide)

  • Maximum Aperture

    F1.8 - F3.56 +/-5%

  • Image Sensor

    1/2.5 Inch SONY CMOS Sensor

  • Effective pixels

    8.51M; 16:9

  • Video Format

    HDMI Video Output Format:
    4KP60, 4KP50, 4KP30, 4KP25, 1080P60, 1080P50, 1080i 60, 1080i 50, 1080P30, 1080P25, 720P60, 720P50

    USB3.0 Video Output Format: YUY2/NV12:
    1920x1080P30, 1280x720P30,1024x576P30, 960x540P30, 800x448P30, 640x360P30, 640x480P30, 320x176P30

  • Video Format (Contd.)

    MJPEG/H.264:
    3840x2160P30,1920x1080P30,1280x720P30,1024x576P30, 960x540P30, 800x448P30, 640x360P30, 640x480P30, 320x176P30

    USB3.0 downward compatible USB2.0:
    YUY2/NV12: 640x360P30, 640x480P30, 320x176P30
    MJPEG/H.264: 3840x2160P30, 1920x1080P30, 1280x720P30, 1024x576P30, 960x540P30, 800x448P30, 640x360P30, 640x480P30, 320x176P30

  • Minimum Illumination

    0.05Lux (F1.8, AGC ON)

  • DNR

    2D&3D DNR

  • White Balance

    Auto / Manual / One Push / Specified Color Temperature

  • Focus Control

    Auto / Manual / One Push

  • Exposure mode

    Auto / Manual / Shutter Priority / Aperture Priority / Brightness priority

  • Aperture

    F1.8 - F11, CLOSE

  • Shutter speed

    1/25-1/10000

  • BLC

    OFF/ON

  • Dynamic range

    OFF/ Dynamic Level Adjustment

  • Video Adjustment

    Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve

  • SNR

    >=50dB

Interface Features

Jump to...
  • Interfaces

    HDMI, LAN (POE), USB3.0 (Type B, compatible with USB2.0), A-IN, RS232-in & out;
    RS422 (Compatible with RS485), Dial switch, DC12V, Power Switch

  • Video Compression

    LAN: H.264,H.265
    USB 3.0: MJPG, H264, YUY2, NV12

  • Audio-in Interface

    Double track 3.5mm linear Input

  • Audio out

    HDMI, LAN, USB3.0

  • Audio Compression

    AAC, MP3, G.711A

  • LAN

    10M/100M/1000M adaptive Ethernet port, support POE and audio/video output

  • Network Protocol

    RTSP, RTMP, ONVIF, GB/T28181, VISCA Control Protocols, Remote Upgrade, reboot and reset

  • Control Interface

    RS232-IN, RS232-OUT, RS422 (RS485)

  • Serial Protocol

    VISCA/ Pelco-D / Pelco-P; Baud rare: 115200/38400/9600/4800/2400

  • USB Communication Protocol

    UVC (video), UAC (audio)

  • Power Interface

    HEC3800 (DC12V)

  • Power Adapter

    In: AC110V-AC220V; Out: DC12V/2.5A

  • Input Voltage

    DC12V +/-10%

  • Input Current

    <1A

  • Power Consumption

    <12W

PTZ Parameters

Jump to...
  • Pan Rotation

    -170 Degree -+170 Degree

  • Tilt Rotation

    -30 Degree -+90 Degree

  • Pan Control Speed

    0.1 Degree /s-120 Degree /s

  • Tilt Control Speed

    0.1 Degree /s-80 Degree /s

  • Preset Speed

    Pan: 120 Degree /s, Tilt: 80 Degree /s

  • Preset Number

    255 Presets (10 presets by remote control)

Other Parameters

Jump to...
  • Temperature

    Storage: 14 Degree F - 140 Degree F (-10 Degree C- 60 Degree C)
    Working: 14 Degree F - 122 Degree F (-10 Degree C- 50 Degree C)

  • Humidity

    Storage: 20%-95%
    Working: 20%-80%

  • Usage

    Indoor

Physical

Jump to...
  • Color

    Gray

  • Dimensions

    6.2 x 7.1 x 8" (157.5 x 189 x 201mm)

  • Weight

    5.7 lbs (2.6kg)

  • UPC Code

    850009357762

About BZB GEAR BG-4KPTZ

With its stunning 4k image delivered courtesy of the Sony CMOS sensor, the BG-4KPTZ-12XUHP has few rivals in the marketplace. This multi-function PTZ IP camera delivers amazing detail even at full zoom. It was designed with simultaneous USB 3.0, HDMI, and IP streaming outputs for maximum flexibility. With this camera you can stream directly to popular social media platforms like YouTube and Facebook with no additional equipment needed.

It supports multiple control methods including IR Remote, WebGUI, or RS232/485, making it easy for you get the perfect shot every time.

By eliminating the need for a power supply, installation and placement has been simplified with PoE functionality via a Cat5/6/7 cable consolidating both A/V signals and power.

If you prioritize picture quality above all else, this is the camera you want.

Stunning 4K/60fps output
Delivers the ultimate in clarity

Power over Ethernet
Delivers power directly over an ethernet cable from your PoE enabled network switch

Multiple Video Outputs
Simultaneous USB 3.0, HDMI, and IP Streaming

Control
IP, IR, and cascadable RS232/485 (VISCA/Pelco) + 255 preset positions

Zoom
Powerful 12x Zoom Lens

Superb Auto Focus
Latest auto focusing algorithms resulting in quick, accurate, and stable focus

Ideal fit for:
• Studio Recordings
• Houses of Worship
• Sporting Events
• Concerts

Who is buying it
• Event Businesses
• Doctors
• Clergy

Interface

HDMI
Crystal clear image with resolutions up to 1080p @ 60 fps.

Power
Flexible power options for easy installation. Use supplied Power Adapter or POE (Power Over Internet) function.

USB
USB 3.0 plug & play connectivity for any conferencing service like Skype or Zoom.

LAN
Power over Ethernet, IP Control, and streaming interface.

Audio In
Stereo audio input for connecting mics and embedding local audio into all four video output interfaces.

Control I/O
8 pin Mini-DIN input for RS-232 control and output for cascadable connections. RS-422/485 interface.

BZB GEAR BG-4KPTZ Features

  • Stunning 4K/60fps output: Delivers the ultimate in clarity
  • Power over Ethernet: Delivers power directly over an ethernet cable from your PoE enabled network switch
  • Multiple Video Outputs: Simultaneous USB 3.0, HDMI, and IP Streaming
  • Control - IP, IR, and cascadable RS232/485 (VISCA/Pelco) + 255 preset positions
  • Zoom - Powerful 12x Zoom Lens
  • Superb Auto Focus - Latest auto focusing algorithms resulting in quick, accurate, and stable focus

Warranty Information

This product has a limited warranty of 36 months.

Product Documents

User Manual

Key Features

  • Capture stunning 4K video with the 12x zoom PTZ camera for crystal-clear detail.
  • Stream live events via HDMI/USB 3.0, perfect for broadcasting and remote conferencing.
  • Enjoy easy control with multiple interfaces, including RS232 and LAN (POE) connectivity.
  • This PTZ camera's Sony CMOS sensor ensures excellent image quality even in low light.
  • Use the versatile PTZ camera for lectures, webinars, and professional video production.
  • Remotely adjust pan, tilt, and zoom; this PTZ camera offers flexible coverage and control.

What's in the box:

  • BG-4KPTZ-12XUHP PTZ 12x Zoom 4K HDMI/USB 3.0 Live Streaming Camera with Sony CMOS (Gray)
  • IR Remote Control
  • Power Adapter
  • Wireless Remote Control
  • RS232 Cable
  • User Manual
  • USB3.0 Cable
  • BZB GEAR 3 Year Limited Warranty
