BZB GEAR BG-B20SHA Specifications

Camera Specs

Camera Specs

Jump to...
  • Sensor

    1/2.8" Exmor CMOS Sensor, 2.38MP

  • Frame Rate

    1080p60Hz/50/30/25, 1080i60Hz/50/30/25, 720p60Hz/50

  • Zoom

    20X Optical, 12X Digital Zoom

  • Focus

    f=4.7mm-94.0mm

  • Aperture

    F=1.6(W)-3.5(T)

  • Horizontal Field of View

    2.9 Degree ;(T)-65 Degree ;(W)

  • Zoom Control

    VISCA, PELCO D/P

Input/Output Interface

Jump to...
  • Video Output

    3G-SDI / HDMI / IP Streaming

  • Audio Input

    N/A

  • Power On

    JEITA type (DC IN 12V)

  • Communication interface

    RS485 / RS232

General

Jump to...
  • Operating Temperature

    14 Degree F - 122 Degree F (-10 Degree C - 50 Degree C)

  • Max Consumption

    12W DC12V @1A

  • Dimensions (W x H x L)

    2.76 x 2.76 x 4.80" (70 x 70 x 122mm)

  • Weight

    7.05 oz (200g)

About BZB GEAR BG-B20SHA

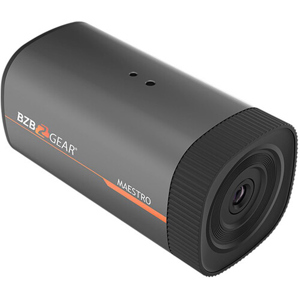

A high-quality and advanced piece of technology, the BG-B20SHA Full HD Integrated IP/SDI/HDMI 20x Zoom Camera with Audio Input from BZBGEAR is an innovative solution for those seeking superior image clarity and flexibility. This camera is equipped with a 1/2.8" Sony CMOS sensor, delivering a full 1080p60Hz HD picture that captures every detail with precision.

One of the standout features of this camera is its powerful 20x optical zoom lens, designed to capture high-quality images from a distance. This makes it an ideal choice for environments that require detailed, close-up fixed angle shots, such as lecture halls, studios, and surveillance areas.

The BG-B20SHA is designed for seamless connectivity and live streaming flexibility. It can simultaneously output IP, 3G-SDI, and HDMI video feeds, making it a versatile addition to any setup. The camera also supports PoE (Power over Ethernet), simplifying installation and eliminating the need for a separate power supply.

This user-friendly camera utilizes H.264/H.265 video compression and RTMP(S) network protocols to deliver a full HD 1080p video stream with low bandwidth requirements. It also has the capability to stream directly to platforms like YouTube and Facebook, making it a popular choice among educators, hobbyists, podcasters, and law enforcement professionals.

The BG-B20SHA camera features a distortion-free 65-degree horizontal field of view and comes with an external audio input for embedding into the video and streaming outputs. This durable camera offers multiple control methods, including a web interface and RS232/485, and supports ONVIF, PELCO-D, PELCO-P, and VISCA protocols.

With its crystal clear image output, versatile video streaming options, and external audio input, the BG-B20SHA Full HD Integrated IP/SDI/HDMI 20x Zoom Camera with Audio Input is a reliable and advanced solution for a range of applications, from studios and podcasts to education and security.

BZB GEAR BG-B20SHA Features

  • Multiple output resolutions available
  • PoE capable for single cable installations
  • Newly developed digital signal processor
  • RS-485 & RS-232 serial control options
  • 2D / 3D noise reduction
  • Small form factor for tight installations
  • On screen display menu
  • H.265/H.264 encoding
  • Auto white balance, iris, and focus options

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Capture crystal-clear video with the 1080p Full HD security camera for detailed surveillance.
  • Use the 20x optical zoom to focus on distant objects, enhancing your security camera's reach.
  • Monitor your property remotely via IP streaming, ensuring real-time access to your security camera.
  • Benefit from flexible connectivity with 3G-SDI and HDMI outputs for versatile security setups.
  • The wide horizontal field of view covers more area, reducing blind spots in your security system.
  • Integrate audio input to capture sound, providing a more complete security camera surveillance solution.

What's in the box:

  • BZB GEAR BG-B20SHA Full HD Integrated IP/SDI/HDMI 20x Zoom Camera with Audio Input
  • 12V/2.0 A DC Power Adapter
  • Power Cable
  • User Manual
  • BZB GEAR 3 Year Limited Warranty
