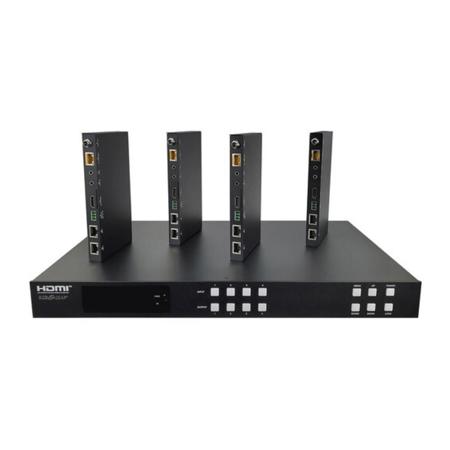

BZB GEAR BG-UM44-100M-KIT 4x4 4K 18Gbps HDMI/HDBaseT/Audio Matrix Switcher with 4x Receiver, 328' Range

SKU: BZB44100MKIT MFR: BG-UM44-100M-KIT
Earn VIP Reward Points

Key Features

  • Experience seamless 4K HDMI matrix switching with HDBaseT extension up to 328 feet.
  • Enjoy wide compatibility with this video switcher, supporting HDR10, Dolby Vision, and HLG.
  • Easily control your AV setup using the matrix IR remote for convenient, reliable connection.
  • This 4x4 HDMI matrix supports multiple audio formats, including Dolby True HD and DTS-HD Master.
  • Perfect for home theaters or conference rooms needing high resolution, low latency switching.
  • Get good value with our 3-year warranty, ensuring your video switch investment is protected.
See More Product Details
Special Order?Estimated to Ship: 08/17/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$159.99

3 Year

$215.99

4 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

BZB GEAR BG-UM44-100M-KIT Specifications

Technical

Technical

Jump to...
  • HDCP Compliance

    HDCP 2.2 and HDCP 1.4

  • Video Bandwidth

    18Gbps

  • Video Resolution

    Up to 4K2K@50/60Hz (4:4:4)

  • Color Space

    RGB, YCbCr 4:4:4/4:2:2/4:2:0

  • Color Depth

    12-bit (4K), 16-bit (1080P)

  • HDMI Audio Formats (Pass-through)

    PCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD

  • Coax Audio Formats

    PCM 2.0, Dolby Digital / Plus, DTS

  • L/R Audio Formats

    PCM 2.0

  • HDR formats

    4:4:4, 4:2:2, 4:2:0(10,12bit deep color) HDR10, HDR10+, Dolby Vision, HLG

  • Infrared

    20KHz - 60KHz

  • ESD Protection

    Human-body Model: +/-8kV (Air-gap discharge), +/-4kV (Contact discharge)

Connection

Jump to...
  • Matrix

    Input Ports: 4x INPUT (HDMI Type A, 19-pin female)
    6x IR INPUT (3.5mm Stereo Mini-jack)
    2x Stereo Audio (3.5mm Stereo Mini-jack B)
    1x SPDIF(OPTICAL) 1xSPDIF(COAX)

    Output Ports: 4x HDMI OUTPUT (HDMI Type A, 19-pin female)
    4x HDBaseT port (RJ45)
    5x IR OUTPUT (3.5mm Stereo Mini-jack)
    4x RS-232 (3-pin Phoenix connector)
    4x SPDIF(COAX)
    4x Stereo Audio(3.5mm Stereo Mini-jack)
    1x LAN (RJ45)

  • Matrix (Contd.)

    Control Ports: 1x TCP/IP (RJ45)
    1x RS-232 (D-Sub 9)

  • HDBaseT Receiver

    Input Ports: 1x HDBaseT IN ( RJ45) 1xIR IN (3.5mm Stereo Mini-jack)

    Output Ports: 1x HDMI OUT (HDMI Type A, 19-pin female) 1xIR OUT (3.5mm Stereo Mini-jack)

    Control Ports: 1x SERVICE (Micro USB, Update port) 1xRS-232 (Phoenix jack) 2xLAN (RJ45)

Mechanical

Jump to...
  • Color

    Black

  • Housing

    Metal Enclosure

  • Power Supply

    AC 100 - 240V 50/60Hz

  • Power Consumption

    70W (Max)

  • Operating Temperature

    32 Degree F - 104 Degree F (0 Degree C - 40 Degree C)

  • Storage Temperature

    -4 Degree F - 140 Degree F (-20 Degree C - 60 Degree C)

  • Relative Humidity

    20-90% RH (non-condensing)

  • Resolution / Distance

    4K60: CAT5e/6/7: 328' (100m)

  • Resolution / Cable length

    HDMI IN / OUT:
    4K60: 16' (5m)
    4K30: 32' (10m)
    1080P60: 50' (15m)

  • Dimensions (W x D x H)

    TX: 17.3 x 10.7 x 1.8" (440 x 274 x 45mm)
    RX: 6.4 x 3.6 x 0.7" (163 x 90.3 x 18mm)

  • Weight

    TX: 8.8 lbs (4kg)
    RX: 13.76 oz (392g)

About BZB GEAR BG-UM44-100M-KIT

Explore the advanced capabilities of the BG-UM44-100M-KIT, a sophisticated 4x4 4K HDMI Matrix Switcher with four HDBaseT outputs. This high-tech device is designed to provide system-wide routing, control, and management from a single centralized unit, making it an innovative solution for your audio and video needs.

Leveraging state-of-the-art HDBaseT technology, the BG-UM44-100M-KIT allows for the transmission of an uncompressed HDMI signal over a category 6 cable for distances reaching up to 328 feet. This feature, coupled with four mirrored HDMI outputs, enables the device to deliver 4K@60Hz 4:4:4 video to eight displays simultaneously, ensuring high-quality visuals across multiple platforms.

The BG-UM44-100M-KIT supports resolutions up to 4K@60Hz 4:4:4, with HDMI 2.0 ports that are HDCP 2.2 compliant. These ports transmit video at impressive speeds of up to 18Gbps, supporting Dolby Vision, HDR10+, and HLG formats for optimal viewing experiences. Each output also performs 4K to 1080p downscaling and supports ARC (Audio Return Channel), enhancing the audio-visual performance of your setup.

With 24V power over cable on all HDBaseT outputs, the BG-UM44-100M-KIT powers each HDBaseT receiver. Each receiver also features dual LAN ports, allowing for the connection of additional devices to your network, thereby reducing installation time and the number of cables needed.

The BG-UM44-100M-KIT also boasts full audio matrix functionality, enabling users to select from a variety of audio sources, including HDMI, ARC, 3.5mm, optical, or coaxial, and assign them to any of the HDMI, 3.5mm, or coaxial outputs. This flexibility allows for seamless integration with a wide range of audio setups.

Control of the BG-UM44-100M-KIT is versatile and user-friendly, with options to operate via the front panel menu, IR remote control, RS-232, or a detailed web interface. With bi-directional IR passthrough, RS-232 passthrough, Crestron support, and dual ethernet connections on each HDBaseT receiver, this unit provides a comprehensive solution for system-wide control and connectivity.

Whether you're outfitting conference rooms, auditoriums, classrooms, small businesses, schools, universities, or hospitals, the BG-UM44-100M-KIT is a reliable and efficient choice for managing and distributing high-quality audio and video signals.

BZB GEAR BG-UM44-100M-KIT Features

  • Stunning Image Quality: Supports resolutions up to 4K@60Hz 4:4:4
  • HDMI: Fully compliant with HDMI 2.0 and HDCP 2.2 specifications
  • Extreme Range: Extend 4K signals up to 328' (100m) with included receivers
  • Audio Matrix: Each output features de-embedded digital coax and analog outputs
  • Auto-Scaling: Each output features 4K to 1080P down-scaling
  • Multiple Control Options: Front panel buttons, RS232, IR, CEC, and TCP/IP (Web GUI)
  • 4 HDMI inputs, 4 HDMI & HDBaseT mirrored outputs
  • Dolby Vision, HDR10+, and HLG supported
  • HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD, DTS-HD Master Audio)
  • Supports ARC function on HDMI and HDBaseT outputs
  • Smart EDID and IR matrix functionality
  • 24V power over Cat5e/6/7 on all HDBaseT ports

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience seamless 4K HDMI matrix switching with HDBaseT extension up to 328 feet.
  • Enjoy wide compatibility with this video switcher, supporting HDR10, Dolby Vision, and HLG.
  • Easily control your AV setup using the matrix IR remote for convenient, reliable connection.
  • This 4x4 HDMI matrix supports multiple audio formats, including Dolby True HD and DTS-HD Master.
  • Perfect for home theaters or conference rooms needing high resolution, low latency switching.
  • Get good value with our 3-year warranty, ensuring your video switch investment is protected.

What's in the box:

  • 4x4 4K HDMI/HDBaseT/Audio Matrix Switcher
  • 4x HDBaseT Receiver
  • Matrix IR Remote
  • 100-240V AC 50/60Hz Power Cable
  • RS-232 Male to Female Serial Cable (1.5m)
  • 8x 3-Pin Phoenix Connector
  • 5x IR Blaster Cable (1.5m)
  • 6x 20-60KHz IR Receiver Cable (1.5m)
  • 10x Mounting Ear (Matrix and Receiver)
  • User Manual
  • BZB GEAR 3 Year Limited Warranty
