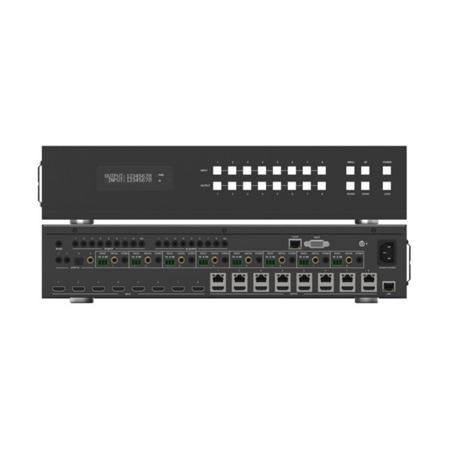

BZB GEAR BG-UM88-100M-KIT 8x8 4K 18Gbps HDMI/HDBaseT/Audio Matrix Switcher with 8x Receiver, 328' Range

The BG-UM88-100M-KIT stands as an advanced 8x8 4K 18Gbps HDMI/HDBaseT/Audio Matrix Switcher, designed to meet the sophisticated needs of high-tech audiovisual environments. This efficient and reliable unit is capable of managing and distributing eight high-definition video and audio inputs to eight outputs, making it an ideal solution for professional-grade installations where multiple displays or devices are in use.

Crafted for seamless integration, the BG-UM88-100M-KIT boasts a robust feature set, including Ethernet passthrough for all receivers, bi-directional IR passthrough, and comprehensive audio matrix capabilities. This allows for streamlined routing, control, and management from a single, centralized unit, enhancing the user experience with simplified operations.

Utilizing cutting-edge HDBaseT technology, the BG-UM88-100M-KIT enables the transmission of uncompressed HDMI signals over a Category 6 cable for distances up to 328 feet (100 meters), ensuring high-quality video and audio delivery without compromise. The inclusion of eight mirrored HDMI outputs further extends its capabilities, allowing for simultaneous 4K@60Hz 4:4:4 video distribution to an impressive sixteen displays.

Connectivity and features of the BG-UM88-100M-KIT are top-notch, with support for resolutions up to 4K@60Hz 4:4:4. The HDMI 2.0 ports are HDCP 2.2 compliant, offering high-speed video transmission at 18Gbps and compatibility with advanced formats such as Dolby Vision, HDR10+, and HLG. The HDBaseT outputs not only extend 4K signals but also include 4K to 1080p downscaling and support for ARC (Audio Return Channel), enhancing versatility across various display technologies.

Power over cable is delivered via 24V on all HDBaseT outputs, simplifying installation by providing power to each HDBaseT receiver, which comes equipped with dual LAN ports for extended connectivity. The BG-UM88-100M-KIT's full audio matrix functionality allows for flexible audio source selection and assignment, including HDMI, ARC, 3.5mm, optical, or coaxial inputs, to any of the corresponding outputs. Audio embedding from external sources is facilitated through two 3.5mm stereo, one optical, and one coaxial audio input ports, while audio de-embedding is available from all HDMI sources.

Control of the BG-UM88-100M-KIT is versatile and user-friendly, with options including the front panel menu, IR remote control, RS-232, and a detailed web interface for precise system management. Bi-directional IR control and full IR matrix functionality are supported, ensuring devices can be controlled with ease. Smart EDID management ensures fast and reliable input switching, eliminating HDMI handshake issues.

In summary, the BG-UM88-100M-KIT is a sophisticated solution for those seeking an advanced, high-performance HDMI/HDBaseT/Audio Matrix Switcher with extensive range and capabilities. Its design caters to large venues and complex installations, offering unparalleled flexibility and control for a superior audiovisual experience.
