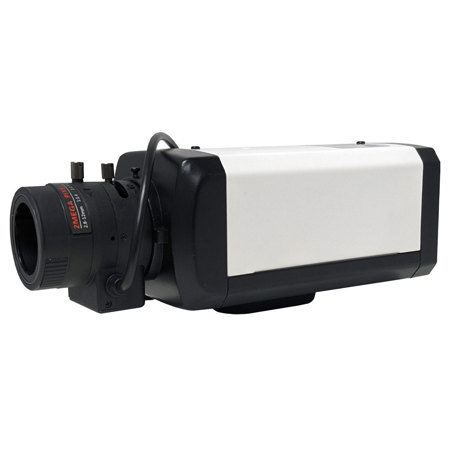

BZB GEAR BG-BFS Full HD Integrated SDI Fixed Wide Zoom Camera, 4x Optical Zoom

The BG-BFS combines high performance with a convenient form factor to deliver a great value. While it's overall size might be compact, it's list of features is anything but! This camera provides bright and crisp images with a strong sense of depth, high resolution, and fantastic color rendition. It supports H.264/H.265 encoding which makes motion video fluent and clear even under less than ideal bandwidth conditions.

Zoom
4x manual optical zoom

Compact Form Factor
Perfect for ceiling mount

Multiple Outputs
Use SDI or IP Stream

1080p60 Output
High framerate ensures fluid motion capture

Manual Focus
Dial in a perfect image

Reliable
Designed for years of trouble-free use

Features

Superb High-definition Image
1/2.8 inch high quality CMOS sensor delivers resolutions up to 1920 x1080 with frame rates up to 60fps.

Low Noise and High SNR
A low noise CMOS sensor delivers a high SNR. Advanced 2D/3D noise reduction technology further reduces the noise creating a clear, sharp image.

Multi-Format Video Outputs
Multiple interfaces include 3G-SDI and LAN. The 3G-SDI is available for 100m transmission at 1080p60 format.

Multiple Video Compression
Support H.264/H.264+ video compression; Support compression of resolution up to 1920x1080 with frame up to 60fps and 2 channels 1920x1080p with 30fps compression.

Multiple Network Protocol
Supports ONVIF, RTSP, RTMP protocols. RTMP push mode makes it easy to link streaming media servers (Wowza, FMS).

Support Multiple Control Protocol
Support VISCA, PELCO-D, PELCO-P protocols. Supports Visca protocol control through IP port.

Wide Application
Remote learning, Lectures, Webcasting, Video Conferencing, Remote training, Remote medicine, Interrogation and Emergency command systems.


Ideal fit for:
• Surveillance
• Monitoring lobbies, corridors, and entryways
• Situations requiring discreet installation

Who is buying it
• Security personnel
• Hospitals
• Schools

Interface

A-In
Stereo audio input for connecting mics and embedding local audio into all four video output interfaces.

HD-SDI
1080p @ 60 fps for distances up to 300 ft.

LAN
Power over Ethernet, IP Control, and streaming interface

Control I/O
Control input for RS-232 control and output for cascadable connections. RS-422/485 interface.
