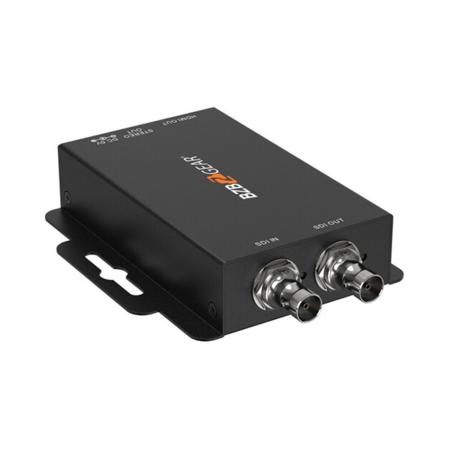

BZB GEAR BG-4KSH 4K 12G-SDI to HDMI Converter with Audio Extraction

SKU: BZBG4KSH MFR: BG-4KSH
Earn VIP Reward Points

Key Features

  • Convert 12G-SDI to HDMI with this BZB GEAR converter, ensuring seamless video integration.
  • Enjoy pristine 4K video quality at up to 60Hz with this reliable format converter solution.
  • Extract audio from SDI sources for enhanced sound integration using this handy device.
  • This HDMI converter supports multiple SDI formats, including 3G, 6G, and 12G for flexibility.
  • Achieve extended cable reach with SDI, up to 233' for 12G-SDI, simplifying setup challenges.
  • Simplify your workflow with auto-switching between SD, HD, 3G, 6G, and 12G-SDI formats.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$119.99

4 Year

$154.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

BZB GEAR BG-4KSH Specifications

Technical

Technical

Jump to...
  • HDMI Compliance

    2.0

  • SDI Formats

    SMPTE 2082; 11.88 Gbps / 12G-SDI: 2160p at 50/59.95/60 Hz
    SMPTE 2081; 5.94 Gbps / 6G-SDI: 2160p at 25/29.97/30 Hz
    SMPTE 424M-2.97 Gbps / 3G-SDI: 1080p at 50/59.94/60 Hz (4:2:2)
    SMPTE 274M-1.485 Gbps / HD-SDI: 1080p at 23.98/24/25/29.97/30 Hz, 1080i at 50/59.94/60 Hz
    SMPTE 292M-1.485 Gbps / HD-SDI: 1080i at 30 Hz, 720p at 60 Hz
    SMPTE 296M-1.485 Gbps / HD-SDI: 720p at 23.98/24/25/29.97/30/50/59.94/60 Hz

  • HDMI Formats

    4K UHD Video Standards / 2160p at 23.98/24/25/29.97/30/50/59.94/60 Hz
    UHD Video Standards / 1080p at 50/59.94/60 Hz (4:2:2)
    HD Video Standards / 720p at 50/59.94/60 Hz, 1080i at 50/59.94/60 Hz, 1080p at 23.98/24/25/29.97/30 Hz

  • SDI Bitrate

    270 Mbps, 1.485 Gbps, 2.97 Gbps, 5.94 Gbps, 11.88 Gbps

  • Video Sampling

    4:2:2

  • Audio Sampling

    48 kHz & 24 bit

  • Auto Switching

    Auto switching between SD / HD / 3G / 6G / 12G-SDI

  • Cable Reach

    12G-SDI up to 233' (70m)
    6G-SDI up to 330' (100m)
    3G-SDI up to 627' (190m)
    HD-SDI up to 825' (250m)

  • Eye-patten Measurements

    Amplitude: within 800mV
    Raise & Fall time: 45ps
    Alignment jitter: <0.3 (100kHz to 1188MHz)

  • ESD Protection

    8 KV - Contact Discharge
    15 KV - Air Discharge

Mechanical

Jump to...
  • Housing Design

    Metal

  • Casing Style

    Wall Mountable

  • Power Connection

    Micro-USB Port

  • Power Supply

    5V DC, 1A

  • Power Consumption

    2.5 Watts (Max.)

  • Operating Humidity

    20-90% RH (no condensation)

  • Operation temperature

    32-104 Degree F (0-40 Degree C)

  • Certifications

    CE, FCC, RoHS

  • Weight

    6.24 oz (175g)

  • UPC Code

    850033687408

About BZB GEAR BG-4KSH

You can elevate your audio-visual experience with the BZBGEAR BG-4KSH, a versatile and high-quality 4K 12G-SDI to HDMI converter designed for seamless signal transition. This robust device is engineered to flawlessly convert 12G-SDI, 6G-SDI, 3G-SDI, and HD-SDI signals into a pristine HDMI 2.0 output, ensuring a lossless transmission that preserves the integrity of both audio and video content.

Crafted for durability and efficiency, the BG-4KSH supports up to 8 channels of audio, making it fully compatible with advanced 7.1 and 5.1 surround sound systems. This feature enhances the auditory dimension of your content, providing an immersive sound experience that complements the high-definition video quality.

User-friendly by design, the converter includes a 3.5mm analog stereo output, allowing for easy audio extraction and direct connection to external speakers or audio systems. The SDI input and SDI loop-out offer additional connectivity options, granting you the flexibility to integrate the converter into various professional or commercial AV setups.

The HDMI output of the BG-4KSH enables a straightforward link to a wide range of consumer-grade video interfaces, including televisions, monitors, and projectors. This reliable converter, produced by the reputable brand BZBGEAR, is a testament to the company's commitment to creating high-performance audio and video equipment.

Whether you're working in broadcast media, live event production, or a corporate environment, the BG-4KSH converter is designed to meet the demands of any high-definition video application. Its user-friendly interface and reliable performance make it a top choice for professionals seeking to maintain the highest quality in video signal conversion.

BZB GEAR BG-4KSH Features

  • Crystal Clear Images: Stunning image quality up to 4K@60Hz
  • HDMI Output: Convert SDI to HDMI the most popular video interface in the world
  • SDI Loop-out: Loop out to view content locally at device
  • Audio De-embedding: De-embed audio using a 3.5mm Stereo Mini input
  • Status LEDs: See signal and power status at a glance with built in status lights
  • Durable Metal Enclosure: Designed for years of reliable use
  • 7.1 or 5.1 channel surround
  • Convert signal from professional/commercial grade AV equipment to a more common interface
  • Digital conversion of signal ensures lossless transformation for audio and video

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Convert 12G-SDI to HDMI with this BZB GEAR converter, ensuring seamless video integration.
  • Enjoy pristine 4K video quality at up to 60Hz with this reliable format converter solution.
  • Extract audio from SDI sources for enhanced sound integration using this handy device.
  • This HDMI converter supports multiple SDI formats, including 3G, 6G, and 12G for flexibility.
  • Achieve extended cable reach with SDI, up to 233' for 12G-SDI, simplifying setup challenges.
  • Simplify your workflow with auto-switching between SD, HD, 3G, 6G, and 12G-SDI formats.

What's in the box:

  • BZB GEAR BG-4KSH 4K 12G-SDI to HDMI Converter with Audio Extraction
  • 5V Power Adapter
  • User Manual
  • BZB GEAR 3 Year Limited Warranty (Extended 2 Year Warranty with Online Registration)
