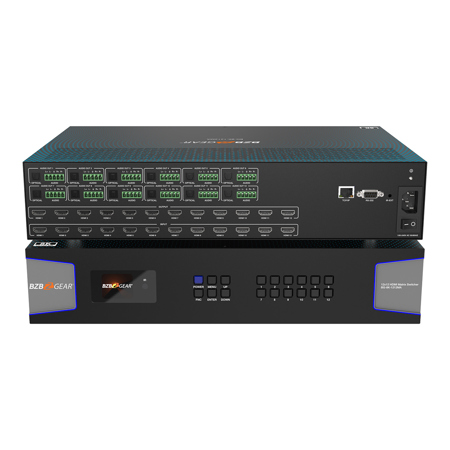

BZB GEAR BG-8K-1212MA 12x12 8K 60Hz HDMI 2.1 Matrix Switcher with Audio De-Embedder

SKU: BZBG8K1212MA MFR: BG-8K-1212MA
Earn VIP Reward Points

Key Features

  • Seamless 8K HDMI matrix switching for up to 12 sources and 12 displays, ensuring reliable connections.
  • Enjoy versatile compatibility with HDR, Dolby Vision, and HLG formats for a stunning visual experience.
  • Effortlessly manage your audio with the audio de-embedder, supporting multiple formats like Dolby Atmos.
  • Control via TCP/IP, RS-232, or IR, this HDMI switcher offers easy setup and flexible integration options.
  • Low latency distribution of high-resolution video, perfect for live events, gaming, and professional setups.
  • This affordable 12x12 HDMI 2.1 matrix supports up to 4K120Hz, future-proofing your AV system.
See More Product Details
Special Order?Estimated to Ship: 08/19/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$189.99

3 Year

$219.99

4 Year

$279.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

BZB GEAR BG-8K-1212MA Specifications

Technical

Technical

Jump to...
  • HDMI Compliance

    HDMI 2.1

  • HDCP Compliance

    HDCP 2.3

  • Video Bandwidth

    1200MHz/48Gbps

  • Video Resolution

    Up to 8K60Hz 4:2:0, 8K30Hz 4:4:4 and 4K120Hz 4:4:4

  • Color Space

    RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0

  • Color Depth

    8/10/12-bit

  • HDR Formats

    HDR, HDR10, HDR10+, Dolby Vision, HLG

  • Audio Formats

    HDMI In/Out: LPCM 2.0, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS High Res, DTS-HD Master Audio, DSD
    Optical Outputs: LPCM 2.0, Dolby, DTS 5.1
    Balanced Analog Audio Outputs: LPCM 2.0

  • ESD Protection

    Human body model - +/-8kV (Air-gap discharge) & +/-4kV (Contact discharge)

Connection

Jump to...
  • Input ports

    12x HDMI [Type A, 19-pin female]

  • Output ports

    12x HDMI [Type A, 19-pin female]
    12x S/PDIF Optical
    12x Balanced Stereo Audio [3.81mm, 5-pin Phoenix Connector]

  • Control ports

    1x TCP/IP [RJ45]
    1x RS-232 [D-Sub 9]
    1x IR EXT [3.5mm, Stereo Mini-jack]

Mechanical

Jump to...
  • Color

    Black

  • Material

    Metal Enclosure

  • Operating Temperature

    32 - 104 Degree F (0 - 40 Degree C)

  • Storage Temperature

    -4 - 140 Degree F (-20 - 60 Degree C)

  • Relative Humidity

    20 - 90% RH (no-condensing)

  • UPC Code

    850050134510

About BZB GEAR BG-8K-1212MA

The BG-8K-1212MA 12x12 8K 60Hz HDMI 2.1 Matrix Switcher with Audio De-Embedder is a superior device designed for scenarios requiring the sharing of up to twelve HDMI sources across twelve displays. This advanced switcher is equipped with twelve HDMI 2.1a inputs and outputs, enabling seamless switching between multiple sources and simultaneous display on various screens. With a simple button push, you can select a single source for display across all screens.

This high-performance device supports 8K resolutions and a range of high-quality audio formats, delivering professional-grade picture and sound quality. It's an ideal solution for gamers seeking high-resolution graphics at high frame rates, offering support for 4K resolution at 120Hz. This ensures your games are displayed with maximum detail and fluidity, especially crucial for fast-paced games where high frame rates significantly enhance your in-game reaction time.

The BG-8K-1212MA 8K HDMI matrix switcher is not just for competitive gaming, it's also perfect for those seeking the most realistic and immersive gaming experience. It supports high resolutions up to 8K at 60Hz 4:2:0, 8K at 30Hz 4:4:4, and 4K at 120Hz 4:4:4 with HDR. With an impressive 48 Gbps of uncompressed bandwidth, HDMI signals are routed without any loss of quality.

All HDMI ports on this matrix are HDCP 2.3 compliant, ensuring secure content transfer. The device also features auto downscaling on all outputs, guaranteeing compatibility with legacy displays. The BG-8K-1212MA supports Digital S/PDIF and Balanced audio output formats, further enhancing its audio capabilities.

Control of the BG-8K-1212MA is versatile and user-friendly, offering multiple methods including front panel controls, IR remote control, RS-232, or TCP/IP (Web GUI). The included IR receiver enables the unit to be controlled with the included remote while located out of sight for a clean installation. The BG-8K-1212MA also includes control software that can be operated via the RS-232 connection, allowing users to adjust advanced features like EDID management, mapping, and network settings. This comprehensive control suite makes the BG-8K-1212MA a highly adaptable and user-friendly device for all your HDMI switching needs.

BZB GEAR BG-8K-1212MA Features

  • 12x12 routing - Features 12 x HDMI inputs which can be independently routed to 12 x HDMI outputs
  • HDCP compliant - HDMI 2.1a (48Gbps) HDCP 2.3 (and all earlier versions supported)
  • 8K and 4K at 120Hz - Up to 8K at 60Hz 4:2:0, 8K at 30Hz 4:4:4 and 4K at 120Hz 4:4:4 8K to 4K or 8K/4K to1080p
  • Auto scaling - Down Scaling on all outputs
  • Control options - Control via front panel, IR, RS-232, and TCP/IP (Web GUI)
  • EDID management - Seamless scaling for the best results
  • HDR, HDR10, HDR10+, Dolby Vision pass-through VRR, ALLM, QMS, QFT, SBTM are supported
  • Digital S/PDIF and Balanced audio output

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Seamless 8K HDMI matrix switching for up to 12 sources and 12 displays, ensuring reliable connections.
  • Enjoy versatile compatibility with HDR, Dolby Vision, and HLG formats for a stunning visual experience.
  • Effortlessly manage your audio with the audio de-embedder, supporting multiple formats like Dolby Atmos.
  • Control via TCP/IP, RS-232, or IR, this HDMI switcher offers easy setup and flexible integration options.
  • Low latency distribution of high-resolution video, perfect for live events, gaming, and professional setups.
  • This affordable 12x12 HDMI 2.1 matrix supports up to 4K120Hz, future-proofing your AV system.

What's in the box:

  • BZB GEAR BG-8K-1212MA 12x12 8K 60Hz HDMI 2.1 Matrix Switcher with Audio De-Embedder
  • Remote Control
  • Wide-Band IR Receiver Cables
  • 3-Pin Phoenix Terminal Plug
  • User Manual
  • BZB GEAR 3 Year Limited Warranty
