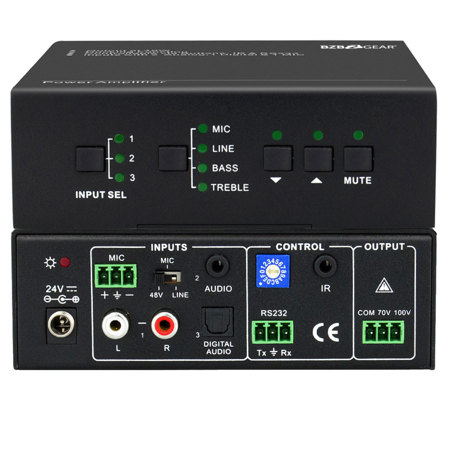

BZB GEAR BG-AMPC40 2-Channel 40W 70V Stereo/Mono Audio Class-D Amplifier

SKU: BZBGAMPC40

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

BZB GEAR BG-AMPC40 Specifications

Audio Input

Audio Input

Jump to...
  • Input

    2x Stereo Audio
    1x MIC
    1x Digital Fiber Audio

  • Input Connector

    2x RCA
    1x 3.5mm Jack
    1x 3-pole 3.81mm Captive Screw Connector
    1x SPF Fiber Connector

  • Input Impedance

    >10K Ohm

Audio Output

Jump to...
  • Output

    1x Mono Amplifier

  • Output Connector

    1x 3-pole 3.81mm Captive Screw Connector

  • Output Type

    Constant voltage 70V or 100V

Audio General

Jump to...
  • Frequency Response

    120Hz - 20KHz

  • CMRR

    >70dB@20Hz-20KHz

  • SNR

    80dB (Max)

  • Bandwidth

    120Hz - 20KHz

  • Rated Power Output

    40Watt

  • THD + Noise

    1%@1KHz, 0.3%@20KHz at nominal level

  • Voltage Gain

    26dB

Control Function

Jump to...
  • RS232 Control

    1x 3-pole 3.81mm Captive Screw Connector

  • Front Panel Control

    Buttons

  • ID Code Control

    16 ID Codes for control.

  • Optional

    IR Remote & TCP/IP controlled by programmable interface

General

Jump to...
  • Temperature

    14 - 104 Degree F (-10 - +40 Degree C)

  • Humidity

    10% - 90%

  • Power Supply

    DC 24V 2.71A Power Adapter

  • Standby Power Consumption

    5W

  • Dimensions (W x H x D)

    5.1 x 1.7 x 5.7" (130 x 44 x 144mm) (1U high)

  • Weight

    1.9 lbs (860g)

About BZB GEAR BG-AMPC40

Let the BG-AMPC40 2-Channel 40W 70V Stereo/Mono Audio Class-D Amplifier elevate your audio experience. This powerful and high-quality amplifier delivers a robust 40 watts of power, providing you with superior sound clarity and volume. With its efficient Class-D technology, you can expect reliable and durable performance.

This versatile amplifier is designed to accommodate both 70V and 100V outputs, making it adaptable to various international power standards. It features two stereo inputs, including a 3.5mm jack for line-in and dual RCA inputs for left and right channels, ensuring compatibility with a wide range of audio devices.

The BG-AMPC40 also boasts a digital input and a balanced microphone input, offering further flexibility for your audio setup. The microphone input supports three levels, including condenser microphone, dynamic microphone, and line audio input, catering to a variety of audio sources.

Integrated with advanced features such as a ducking function, EQ control, and a microphone mixer, this amplifier is equipped to deliver a superior audio experience. The ducking function allows for automatic volume reduction when speaking or announcing, while the EQ control lets you fine-tune your sound to perfection.

For seamless integration with third-party control systems, the BG-AMPC40 provides an array of connection options, including RS-232, LAN, IR, and USB. This ensures that you can easily incorporate this amplifier into your existing setup, regardless of your control system.

In summary, the BG-AMPC40 2-Channel 40W 70V Stereo/Mono Audio Class-D Amplifier is a powerful, high-quality, and reliable choice for any audio enthusiast seeking superior sound amplification.

BZB GEAR BG-AMPC40 Features

  • Mono audio output at 40Watt
  • Switchable between 70V and 100V
  • Ducking function
  • 16 ID codes for controlling between different amplifiers
  • 3-level MIC input, supports condenser microphone, dynamic microphone and wireless microphone
  • MIC port can support balance/unbalance signal, suppress the external noise effectively
  • Two stereo audio inputs and one digital audio input, switchable by button, IR remote & RS232
  • Volume/Bass/Treble controllable by buttons, IR remote & RS232
  • Fast switching speed for good performance
  • Convection cooler, fan is not needed
  • LED indicator, for power and working status
  • Antistatic case design to provide good protection for long-term and stable performance

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Experience superior audio with this 40W Class-D amplifier, perfect for small venues.
  • Achieve crystal-clear sound with a low distortion amplifier, enhancing your listening experience.
  • Enjoy versatile connectivity with multiple inputs, including RCA and digital fiber audio.
  • Customize your sound with precise RS232 control, tailoring audio to your exact needs.
  • Rely on the amplifier's robust protection to ensure consistent performance and longevity.
  • Optimize your sound system with a high signal-to-noise ratio for pristine audio clarity.

What's in the box:

  • BG-AMPC40 2-Channel 40W 70V Stereo/Mono Audio Class-D Amplifier
  • 2x Mounting ears with 4 Screws
  • 4x Plastic Cushions
  • 2x Pluggable Terminal Blocks
  • RS232 Cable
  • Power Adapter (DC 24V 2.71A)
  • User Manual
  • BZB GEAR 2 Year Limited Warranty
