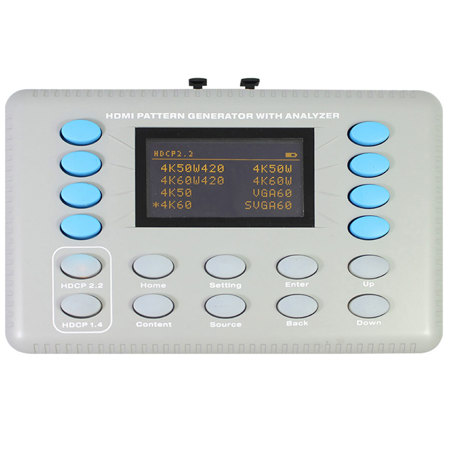

BZB GEAR BG-AVTPG-A 4K/HDR 18Gbps Test Generator & Analyzer with HDMI 2.0 and LPCM Audio Support

SKU: BZBGAVTPGA MFR: BG-AVTPG-A
Earn VIP Reward Points

Key Features

  • Ensure optimal sound quality with this 4K/HDR test generator & analyzer.
  • Verify HDMI 2.0 and HDCP 2.2 compliance for seamless connectivity.
  • Test audio formats like LPCM, Dolby Digital, and DTS for versatility.
  • Analyze video resolutions up to 4K2K@60Hz for accurate signal processing.
  • Compact design makes this signal processor easy to integrate into any setup.
  • Durable build ensures long-lasting value as a reliable audio testing tool.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$179.99

3 Year

$249.99

5 Year

$489.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

BZB GEAR BG-AVTPG-A Specifications

Technical

Technical

Jump to...
  • HDMI Compliance

    HDMI 2.0b

  • HDCP Compliance

    HDCP 2.2

  • Video Bandwidth

    18 Gbps

  • Video Resolutions

    Up to 4K2K@50/60Hz (YUV4:4:4)

  • Color Space

    RGB, YCbCr 4:4:4, YCbCr 4:2:2

  • Color Depth

    8-bit, 10-bit, 12-bit

  • HDMI Audio Formats

    Internal: LPCM 2CH, 48kHz, 16bits
    External SPDIF: LPCM 2/5.1CH, Dolby Digital, DTS 5.1
    HDMI Pass-through: LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X

  • ESD Protection

    Human body model - +/-8kV (air-gap discharge) & +/-4kV (contact discharge)

Connections

Jump to...
  • Inputs

    1x HDMI Type A (19-pin female)
    1x SPDIF In (Optical)
    1x RS-232 (3.5mm Mini-jack)

  • Outputs

    1x HDMI Type A (19-pin female)
    1x SPDIF Out (Optical)

Mechanical

Jump to...
  • Color

    Black

  • Housing

    Plastic Enclosure

  • Power Supply

    Input: AC100 - 240V 50/60Hz Output: DC 5V/2A (US/EU standards, CE/FCC/UL certified)

  • Power Consumption

    2.5W

  • Operation Temperature

    32 - 104 Degree F (0 - 40 Degree C)

  • Storage temperature

    -4 - 140 Degree F (-20 - 60 Degree C)

  • Relative Humidity

    20 - 90% RH (no condensation)

Physical

Jump to...
  • Dimensions (W x D x H)

    6.5 x 4 x 1.5" (165 x 103 x 37.4mm)

  • Weight

    12.8 oz (363g)

About BZB GEAR BG-AVTPG-A

A cutting-edge tool for AV integration, the BG-AVTPG-A 4K/HDR 18Gbps Test Generator & Analyzer with HDMI 2.0 and LPCM Audio Support is expertly designed to validate HDMI 2.0 and HDCP 2.2 systems at an impressive 18Gbps level. This sophisticated device can both generate and analyze HDMI signals, making it an invaluable asset for system integration, project installation, debugging, cable manufacturing, and even for engineering and test laboratories.

This high-tech analyzer supports a multitude of connections for 3rd Party Control systems, including RS-232, LAN, IR, and USB, offering unparalleled versatility. With the introduction of HDMI 2.0, it can handle the maximum bandwidth of 18Gbps, a significant leap from the previous limit of 10.2 Gbps with HDMI 1.4.

The device also supports 4K 60 4:4:4, referring to Ultra HD resolution of 3,840 x 2,160 pixels. This equates to four times the pixel count of a full HD TV, totaling around 8.3 million pixels for a clearer, more defined picture quality.

In addition, this advanced test generator and analyzer can manage separate audio feeds from end-to-end. It can handle the embedded audio within the TMDS signal up to 192KHz, and an additional two sources of 48KHz can be sent bi-directionally via S/PDIF. This eliminates the need for separate audio baluns and supports two channels of uncompressed PCM Audio or compressed 5.1/7.1 surround sound.

The BG-AVTPG-A 4K/HDR 18Gbps Test Generator & Analyzer is equipped with HDCP 2.2, the latest in High-bandwidth Digital Content Protection technology, specifically designed to prevent illegal copying of 4K Ultra HD content.

Finally, the device utilizes EDID (Extended Display Identification Data) to read information from a display for the purpose of matching sources. This includes manufacturer name, serial number, product type, filter type, timings, size luminance, and pixel mapping, ensuring compatibility for signal transmission and reception. This innovative feature is crucial in resolving potential EDID conflicts that may result in no picture.

In summary, this precise and reliable tool from Adorama is a must-have for anyone seeking to ensure the highest quality in their HDMI systems.

BZB GEAR BG-AVTPG-A Features

  • HDMI 2.0b support, Maximum resolution 4K2K@50/60Hz(4:4:4) 18Gbps
  • Up to 55 video resolutions and 31 patterns
  • Color space supports RGB/YCbCr444/YCbCr422/YCbCr420
  • Color depth supports 24, 30 and 36 bit per pixel
  • Built-in HDMI 2.0b HDR (High-Dynamic Range) testing
  • HDMI audio source can from internal, external S/PDIF or HDMI input audio
  • Internal audio LPCM/2CH, sample rate 48kHz, bit width 16bits
  • HDCP 2.2/1.4 Pass or Fail indicator
  • EDID Read/Write functionality
  • HDMI input Timing/Format/Info frame/HDCP analyzing
  • CEC supports
  • Control via on panel button or RS-232(3.5mm Mini-jack)
  • Portable/Battery Operated 3000mAh

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Ensure optimal sound quality with this 4K/HDR test generator & analyzer.
  • Verify HDMI 2.0 and HDCP 2.2 compliance for seamless connectivity.
  • Test audio formats like LPCM, Dolby Digital, and DTS for versatility.
  • Analyze video resolutions up to 4K2K@60Hz for accurate signal processing.
  • Compact design makes this signal processor easy to integrate into any setup.
  • Durable build ensures long-lasting value as a reliable audio testing tool.

What's in the box:

  • BG-AVTPG-A 4K/HDR 18Gbps Test Generator & Analyzer
  • 3.5mm to DB9 (Female) Serial Cable Adapter (1m Length)
  • 5V/2A Power Adapter
  • User Manual
  • BZB GEAR 2 Year Limited Warranty
