What video compression formats does the BG-BPTZ-XU Full HD USB 2.0/RS232 Huddle Room 3x PTZ Camera support?

The BG-BPTZ-XU PTZ Camera supports a variety of video compression formats, including H.264, H.265, and MJPEG.

What control options are available for the BG-BPTZ-XU Full HD USB 2.0/RS232 Huddle Room 3x PTZ Camera?

The BG-BPTZ-XU PTZ Camera provides multiple control options, including IR remote, RS-232, RS-485, and UVC (USB).

Can the BG-BPTZ-XU Full HD USB 2.0/RS232 Huddle Room 3x PTZ Camera be mounted on different surfaces?

Yes, the BG-BPTZ-XU PTZ Camera offers versatile installation options. It can be mounted on a ceiling, wall, or tripod to suit various environments.

What is the resolution of the BG-BPTZ-XU Full HD USB 2.0/RS232 Huddle Room 3x PTZ Camera?

The BG-BPTZ-XU PTZ Camera supports high-definition resolutions up to 1080p at 30Hz.

What is the field of view of the BG-BPTZ-XU Full HD USB 2.0/RS232 Huddle Room 3x PTZ Camera?

The 3x optical zoom option of the BG-BPTZ-XU PTZ Camera boasts a field of view up to 85 degrees.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

BZB GEAR BG-BPTZ-XU Specifications

General

General

Jump to...
  • View Angle

    34.1 Degree - 85 Degree

  • F Value

    f=3.35mm - 10.05mm

  • AV

    F1.7 - 3.0

  • Optical Zoom

    3x

Camera Parameters

Jump to...
  • Image Sensor

    1/2.9" High Quality CMOS Sensor

  • Effective Pixels

    2.07MP, 16:9

  • Video Format

    1920x1080P@30 fps/25fps; 1280x720P@30fps/25fps; 1024x576P@30fps/25fps; 960x540P@30fps/25fps; 800x448P@30fps/25fps; 640x360P@30fps/25fps; 320x176P@30fps/25fps

  • Low Illumination

    0.5Lux (F1.8, AGC ON)

  • DNR

    2D & 3DDNR

  • White Balance

    Auto/Manual/One Push/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K

  • Focus

    Auto/Manual/One Push

  • Electronic Shutter

    Auto/Manual

  • BLC

    On/Off

  • WDR

    OFF/Dynamic Level Adjustment

  • Video Adjustment

    Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve

  • SNR

    >55dB

Interface and Protocol

Jump to...
  • Video Output

    USB2.0. Type A

  • Video Compression

    H.265, H.264, MJPG

  • Control Port

    RS232 in & out, RS485

  • Control Protocol

    VISCA/Pelco-D/Pelco-P

  • Power Supply

    HEC3800 Outlet (DC12V)

USB characteristics

Jump to...
  • Support operating system

    Windows 7, Windows8, Windows10, Mac OS, Linux

  • Video Compression

    H.265, H.264, MJPG

  • USB communication protocol

    UVC

PTZ Parameter

Jump to...
  • Pan/Tile Rotation

    -170 Degree - +170 Degree / -30 Degree - +30 Degree

  • Pan/Tile Controller Speed

    0.1 - 60 Degree/second, 0.1 - 30 Degree/second

  • Preset Speed

    Pan: 60 Degree/second, Tilt: 30 Degree/second

  • Preset Numbers

    255 Presets (10 presets on IR Remote)

Other Parameter

Jump to...
  • Working Voltage

    12V

  • Working current

    0.25A(max)

  • Power Consumption

    2.5W(max)

  • Storage Temperature

    14 Degree F - 140 Degree F (-10 Degree C - +60 Degree C), 20% - 95%

  • Working Temperature

    14 Degree F - 122 Degree F (-10 Degree C - +50 Degree C), 20% - 80%

  • Usage

    Indoor Only

  • Dimensions

    6.2 x 4.4 x 5.5" (156.8 x 112.6 x 139.5mm)

  • Weight

    2.2 lbs (1kg)

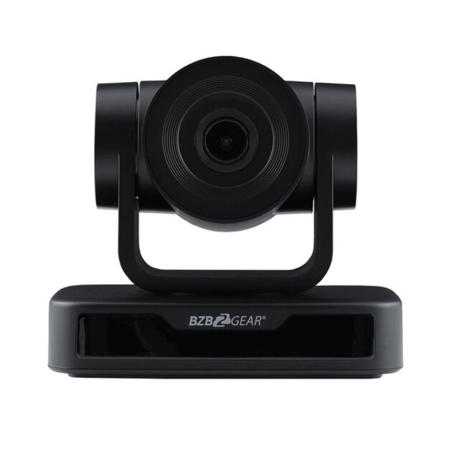

About BZB GEAR BG-BPTZ-XU

Introducing the BG-BPTZ-XU, a high-quality pan tilt zoom (PTZ) USB camera that offers excellent performance and versatility. The 3x optical zoom variant - this camera is ideal for a range of applications, from smaller spaces to larger rooms where individual subjects are located further away but still need to fill the frame.

Both options of the BG-BPTZ-XU camera support resolutions up to 1080p@30Hz, producing high-quality imagery from its 1/2.8" high-quality CMOS sensor. The 3x optical zoom option has a field of view of up to 85 Degree , ensures that users can choose the best option to suit their specific needs.

The BG-BPTZ-XU offers quick and easy plug and play connectivity with USB 2.0 type A, making it compatible with any video conferencing software on your laptop or desktop PC, such as Skype, Zoom, Microsoft Teams, and Google Meet. A step drive motor mechanism and precision motor drive controller ensure that the PTZ operation of the camera is smooth and quiet, avoiding any disruptions during your video conferencing calls.

This camera supports several video compression formats, including H.264, H.265, and MJPEG, providing greater flexibility and compatibility with a range of devices and applications.

The BG-BPTZ-XU has several control options available, including IR remote, RS-232, RS-485, and UVC (USB). Up to 255 preset positions are available, with 10 accessible via the IR remote. This camera can be mounted to a ceiling, wall, or tripod, increasing the potential for installation in many environments.

Overall, the BG-BPTZ-XU is a high-quality, versatile, and reliable PTZ USB camera that offers a range of advanced features to cater to all your video conferencing needs. Whether you're in the education industry or require video conferencing for remote work or huddle space, the BG-BPTZ-XU is the perfect choice.

Ideal fit for:
• Conference Rooms
• Remote Education and Healthcare
• House of Worship
• Small Businesses
• Doctors
• Pastors

BZB GEAR BG-BPTZ-XU Features

  • Zoom: 3x Optical zoom
  • Control: Cascadable RS232/485 (VISCA/Pelco) + 255 preset positions
  • USB2.0 (type A) Output: Fast and Simple setup
  • Full HD Image: 1/2.8" high quality CMOS sensor with resolutions up to 1080p@30Hz
  • Superb Auto Focus: Latest auto focusing algorithms resulting in quick, accurate, and stable focus
  • Extremely Quiet PTZ: Step drive motor mechanism and precision motor drive controller ensure PTZ works smoothly with no noise
  • Superb high-definition image
  • Easy for anyone to operate
  • Up to 255 presets (10 presets for IR remote control)
  • Perfect for a multitude of applications
  • Advanced 2D/3D noise reduction technology
  • Works with Win7-10, Mac osx, and Linux
  • MJPG/H264/H265 video compression formats
  • Auto/manual/one push white balance

Key Features

  • Zoom: 3x Optical zoom
  • Control: Cascadable RS232/485 (VISCA/Pelco) + 255 preset positions
  • USB2.0 (type A) Output: Fast and Simple setup
  • Full HD Image: 1/2.8" high quality CMOS sensor with resolutions up to 1080p@30Hz
  • Superb Auto Focus: Latest auto focusing algorithms resulting in quick, accurate, and stable focus
  • Superb high-definition image

What's in the box:

  • BZB GEAR BG-BPTZ-XU Full HD USB 2.0/RS232 Huddle Room 3x PTZ Camera
  • 12V/1.5A Power Supply
  • Remote Control
  • USB 2.0 Cable
  • User Manual
  • BZB GEAR 3 Year Limited Warranty (Extended 2 Year Warranty with Online Registration)
