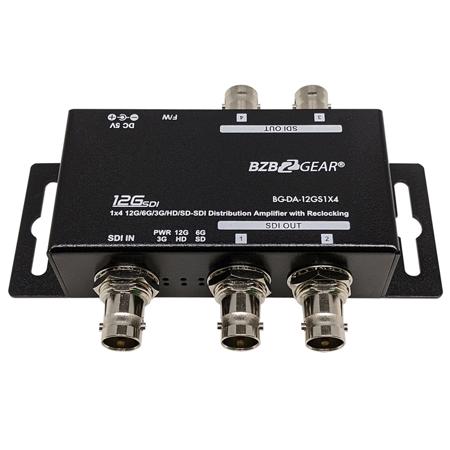

BZB GEAR BG-DA-12GS1X4 12G SDI 1x4 Splitter and Reclocking Distribution Amplifier

SKU: BZBGD12GS1X4 MFR: BG-DA-12GS1X4
Earn VIP Reward Points

Key Features

  • Distribute 12G-SDI video signals to four displays with this reliable distribution amplifier.
  • Enjoy wide compatibility with SD/HD/3G/6G/12G-SDI; auto signal detection ensures seamless setup.
  • Extend your 12G-SDI signal up to 230 feet, 6G-SDI up to 330 feet, and 3G-SDI up to 594 feet.
  • This reclocking distribution amplifier supports audio and maintains signal integrity.
  • Use this 1x4 splitter for broadcast, live events, or professional video production setups.
  • Compact metal enclosure with wall-mounting; this SDI splitter is built for durability.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$34.99

2 Year

$59.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

BZB GEAR BG-DA-12GS Specifications

Technical

Technical

Jump to...
  • SDI standard

    SD/HD/3G/6G/12G-SDI

  • Multi-Rate Support

    Auto detection of SD, HD, 3G, 6G or 12G Signals

  • SDI Compliance

    SMPTE 424M, SMPTE 292M, SMPTE 344M, SMPTE 259M, DVB-ASI, ST- 2081(6G), ST2082(12G)

  • SDI Data rates

    1.485 / 2.97 / 5.94 / 11.88 Gbps

  • Video bandwidth

    (11.88Gpbs & 11.88/1.001Gbps)

  • Output impedance

    75Ohm

  • Reclocking

    Yes

  • Cable equalization

    (12G) up to 230' (70m)
    (6G) up to 330' (100m)
    (3G) up to 594' (180m)

  • Audio support

    Yes

  • RP-198 pathological patterns

    Immune

  • PCB stack-up

    4-layer board (impedance control - differential 100Ohm; single 75Ohm)

  • Input

    1x BNC (SDI)

  • Output

    4x BNC (SDI)

  • BNC connector

    75Ohm inter-locked socket

  • Eye pattern characteristics(12G)

    Amplitude: Within 800mV (<10%) Rise/Fall time: Less than 35ps
    Timing jitter: <1.0 UI (10Hz to 1188MHz)
    Alignment jitter: <0.3 (100KHz to 1188MHz)

Mechanical

Jump to...
  • Housing

    Metal enclosure

  • Fixedness

    Wall-mounting case

  • Power supply

    5V 2A DC

  • Power consumption

    2.5 Watts (max)

  • Operation temperature

    32-104 Degree F (0-40 Degree C)

  • Storage temperature

    -4 - 140 Degree F (-20 - 60 Degree C)

  • Relative humidity

    20-90% RH (no condensation)

Physical

Jump to...
  • Dimensions (L x W x H)

    3.6 x 1.7 x 1.1" (92 x 42 x 28mm)

  • Weight

    4.2 oz (119g)

  • UPC Code

    850023208156

About BZB GEAR BG-DA-12GS

Discover the power and precision of the BG-DA-12GS1X4 12G SDI 1x4 Splitter and Reclocking Distribution Amplifier. This compact, high-performance device is designed to enhance your audio and video transmission experience. With its four separately buffered and re-clocked outputs, it effectively eliminates jitter and extends transmission distances, ensuring a smooth and uninterrupted signal flow.

The BG-DA-12GS1X4 12G SDI 1x4 Splitter is equipped with automatic input cable equalization, capable of supporting up to 180m for 3G, 100m for 6G, and 70m for 12G. This feature optimizes signal strength and quality, regardless of the cable length used, making it an ideal choice for various broadcasting and multimedia applications.

In addition, this SDI Splitter and Reclocking Distribution Amplifier features LED indicators that provide real-time information on signal lock and current video rate. This allows for easy monitoring and troubleshooting, ensuring optimal performance at all times.

The device also boasts an inter-locked power supply, guaranteeing a solid and reliable connection. This feature enhances the stability and durability of the device, making it a robust addition to any professional audio and video setup.

Experience the superior performance and reliability of the BG-DA-12GS1X4 12G SDI 1x4 Splitter and Reclocking Distribution Amplifier, a must-have tool for any professional broadcasting or multimedia environment.

BZB GEAR BG-DA-12GS Features

  • 4 Outputs - Increased connectivity
  • Buffered and re-clocked outputs - Eliminate jitter and increase transmission distance
  • Automatic input cable equalization - Up to 180 meters @ 3G
  • LED Indicators - Signal lock and video rate at a glance
  • Interlocked Power Supply - Ensures power stays connected
  • Rugged Design - Built to last for years of operation

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Distribute 12G-SDI video signals to four displays with this reliable distribution amplifier.
  • Enjoy wide compatibility with SD/HD/3G/6G/12G-SDI; auto signal detection ensures seamless setup.
  • Extend your 12G-SDI signal up to 230 feet, 6G-SDI up to 330 feet, and 3G-SDI up to 594 feet.
  • This reclocking distribution amplifier supports audio and maintains signal integrity.
  • Use this 1x4 splitter for broadcast, live events, or professional video production setups.
  • Compact metal enclosure with wall-mounting; this SDI splitter is built for durability.

What's in the box:

  • BG-DA-12GS1X4 12G SDI 1x4 Splitter and Reclocking Distribution Amplifier
  • 5V Power Adapter
  • BNC 75 Ohm Terminator
  • User Manual
  • BZB GEAR 2 Year Limited Warranty
