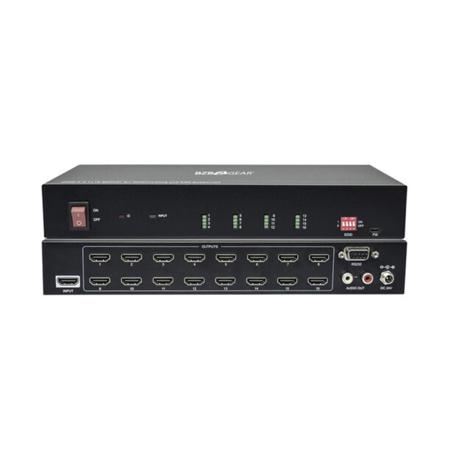

BZB GEAR BG-UHD-DA1X16 1x16 4K HDMI Splitter with AOC Support

SKU: BZBGDDA1X16 MFR: BG-UHD-DA1X16
Earn VIP Reward Points

Key Features

  • Distribute HDMI video to 16 displays with this reliable 4K HDMI splitter, ensuring signal integrity.
  • Enjoy high resolution video up to 4K@60Hz 4:4:4 with HDR10 and Dolby Vision for stunning visuals.
  • This video distribution amplifier supports multi-device setups, perfect for commercial or home use.
  • Experience low latency video distribution, ideal for live events and real-time monitoring applications.
  • Easily set up this HDMI splitter with its user-friendly design, enabling quick and hassle-free integration.
  • This HDMI distribution amplifier offers long range signal extension, maintaining quality over distance.
See More Product Details
Special Order?Estimated to Ship: 08/20/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$69.99

3 Year

$94.99

4 Year

$119.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

BZB GEAR BG-UHD-DA Specifications

Video
  • Input

    1x HDMI

  • Input Connector

    1x Type-A female HDMI

  • Input Video Resolution

    Up to 4K@60Hz 4:4:4 8bit, HDR10, Dolby Vision

  • Output

    16x HDMI

  • Output Connector

    16x Type-A female HDMI

  • Output Video Resolution

    Up to 4K@60Hz 4:4:4 8bit, HDR10, Dolby Vision, supports 4K to 1080p down-scaling

  • HDMI Output

    Supports up to 5V100mA power for AOC cable

  • HDMI Standard

    V2.0

  • HDCP Version

    2.2

  • HDMI Audio Signal

    LPCM 7.1 audio, Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, DTS:X, and DTS-HD Master Audio pass-through

Analog Audio Output

Jump to...
  • Output

    1x Audio

  • Output Connector

    1x RCA (L+R)

  • Frequency Response

    20Hz-20kHz, +/-1dB

  • Max output level

    2.0Vrms +/- 0.5dB. 2V=16dB headroom above-10dBV (316mV) nominal consumer line level signal

  • THD+N

    < 0.05%, 20Hz-20kHz bandwidth, 1kHz sine at 0dBFS level (or max level)

  • SNR

    > 80dB, 20Hz-20kHz bandwidth

  • Crosstalk isolation

    < -80dB, 10kHz sine at 0dBFS level (or max level before clipping)

  • L-R level deviation

    < 0.05dB, 1kHz sine at 0dBFS level (or max level before clipping)

  • Output load capability

    1Kohm and higher (supports 10x paralleled 10Kohm loads)

  • Noise Level

    - 80dB

Control Part

Jump to...
  • Control Port

    1x EDID Switch, 1x FW, 1x RS232

  • Control Connector

    1x 4-pIn DIP switch, 1x Micro-USB, 1x Female DB9

General

Jump to...
  • Bandwidth

    18Gbps

  • Operation Temperature

    23 Degree F - 131 Degree F (-5 Degree C - +55 Degree C)

  • Storage Temperature

    -13 Degree F - 158 Degree F (-25 Degree C - +70 Degree C)

  • Relative Humidity

    10%-90%

  • External Power Supply

    Input: AC 100-240V, 50/60Hz; Output: 24V DC 1.25A

  • Power Consumption

    26W (Max)

  • Dimensions (W x H x D)

    10.5 x 1.6 x 4.9" (268 x 40 x 125mm)

  • Weight

    2.5 lbs (1.14kg)

  • UPC Code

    850023208675

About BZB GEAR BG-UHD-DA

Under the hood of the BG-UHD-DA1X16 lies a robust and advanced 1x16 4K HDMI splitter, engineered to deliver high-quality video distribution across multiple displays. This state-of-the-art device is an essential tool for large-scale venues such as restaurants, bars, and retail environments that require a unified video feed to be shared seamlessly across up to sixteen 4K displays.

Crafted with precision, the BG-UHD-DA1X16 boasts an impressive maximum input resolution of 4K@60Hz 4:4:4, ensuring that your content is displayed with the utmost clarity and detail. The splitter is fully HDCP 2.2 compliant, guaranteeing secure content management and compatibility with the latest digital rights management protocols.

Enhance your visual experience with the splitter's support for leading-edge video formats, including HDR 10 and Dolby Vision. These features elevate the dynamic range and color accuracy of your video content, providing viewers with a stunning, lifelike picture quality.

The BG-UHD-DA1X16's support for Active Optical Cable (AOC) HDMI allows for extended cable runs of up to 165 feet, making it highly efficient for installations that require long-distance signal transmission without compromising on video quality. This feature is particularly beneficial for complex setups where displays are spread out over large areas.

The device's intelligent auto-downscaling function ensures compatibility with 1080P legacy displays, automatically adjusting the output to match the connected screen's resolution. This efficient feature prevents compatibility issues and ensures a harmonious integration with a variety of display technologies.

For added convenience, the HDMI CEC control function enables centralized power management for connected displays, allowing for streamlined operation and energy efficiency. The BG-UHD-DA1X16 also includes a set of DIP switches for EDID management, which helps stabilize the signal for all connected devices, ensuring a reliable and consistent viewing experience.

Audio integration is made simple with the analog RCA output, which facilitates audio extraction and connection to an external sound system, delivering a complete audio-visual solution.

The BG-UHD-DA1X16 is designed with professional installations in mind, offering remote management capabilities through the RS232 input. Essential system commands, including EDID, HDCP, scaler settings, and reboot, can be executed remotely, providing ease of use and maintenance for technical staff.

In summary, the BG-UHD-DA1X16 is a durable, reliable, and efficient solution for those seeking an advanced HDMI splitter capable of handling the demands of high-resolution content across multiple displays. Its comprehensive feature set and user-friendly design make it a top choice for any installation requiring a high-performance video distribution system.

BZB GEAR BG-UHD-DA Features

  • Crystal Clear Images: Images with resolutions up to 4K@60Hz
  • Multiple Outputs: Route once source to as many as 16 HDMI outputs
  • Downscaling: Automatic downscaling to 1080p for legacy displays
  • Durable: Sturdy metal structure built to withstand years of operation
  • Compliant: HDCP 2.2 complaint to ensure copyright protections
  • Audio De-embedding: De-embed audio from HDMI and output via Stereo RCA
  • Supports 4:4:4 8bit, HDR 10, Dolby Vision
  • Smart EDID management
  • AOC HDMI supported for cable runs up to 165'

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Distribute HDMI video to 16 displays with this reliable 4K HDMI splitter, ensuring signal integrity.
  • Enjoy high resolution video up to 4K@60Hz 4:4:4 with HDR10 and Dolby Vision for stunning visuals.
  • This video distribution amplifier supports multi-device setups, perfect for commercial or home use.
  • Experience low latency video distribution, ideal for live events and real-time monitoring applications.
  • Easily set up this HDMI splitter with its user-friendly design, enabling quick and hassle-free integration.
  • This HDMI distribution amplifier offers long range signal extension, maintaining quality over distance.

What's in the box:

  • BZB GEAR BG-UHD-DA1X16 1x16 4K HDMI Splitter
  • 2x Mounting Ears with 4 Screws
  • 4x Plastic Cushions
  • RS232 Cable (Female DB9 to Male DB9)
  • Power Adapter (24V DC/1.25A)
  • User Manual
  • BZB GEAR 3 Year Limited Warranty
