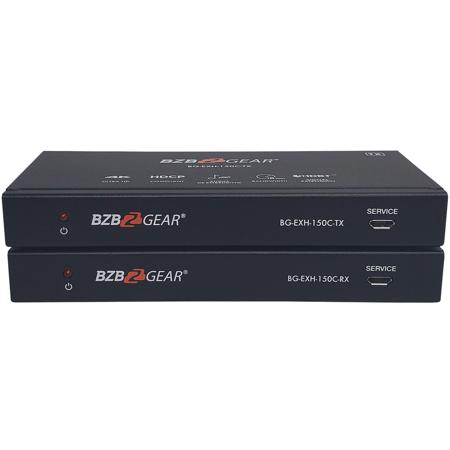

BZB GEAR BG-EXH-150C 4K 18Gbps HDMI HDBaseT Extender Transmitter and Receiver with Bi-Directional IR RS-232 and CEC

SKU: BZBGEXH150C MFR: BG-EXH-150C
Earn VIP Reward Points

Key Features

  • Extend your HDMI signal up to 492 ft with this reliable HDMI HDBaseT extender kit for seamless connectivity.
  • Experience crystal-clear 4K video with this HDMI extender, supporting 18Gbps bandwidth for optimal viewing.
  • Control your devices remotely using bi-directional IR and RS-232 pass-through features of this HDMI extender.
  • Enjoy versatile audio options with L/R audio breakout, supporting multiple formats via this HDMI extender kit.
  • This HDMI HDBaseT extender offers robust surge protection, safeguarding your equipment from electrical damage.
  • Simplify installations with included mounting ears and locking power adapter for secure HDMI extender setup.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$109.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

BZB GEAR BG-EXH-150C Specifications

Technical

Technical

Jump to...
  • HDCP Compliance

    HDCP 2.2 / HDCP 1.4

  • Video Bandwidth

    18Gbps

  • Video Resolution

    4K2K 50/60Hz 4:4:4
    4K2K 50/60Hz 4:2:2
    4K2K 50/60Hz 4:2:0
    4K2K 30Hz 4:4:4
    1080p, 1080i, 720p, 720i, 480p, 480i
    All HDMI 3D TV formats
    All PC resolutions including 1920 x 1200

  • Color Space

    RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0

  • Color Depth

    8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr 4:2:2/4:2:0)
    8-bit (4K60Hz 4:4:4)

  • HDMI Audio Formats

    LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X

  • L/R Audio Formats

    PCM 2.0

  • ESD Protection

    Human body model: +/-8kV (Air-gap discharge) & +/-4kV (Contact discharge)

Connection

Jump to...
  • Transmitter

    Inputs: 1x HDMI Type A (19-pin female)

    Outputs: 1x HDMI Type A (19-pin female)
    1x HDBT OUT (RJ45, 8-pin female)

    Control: 1x IR IN (3.5mm Stereo Mini-jack)
    1x IR OUT (3.5mm Stereo Mini-jack)
    1x RS-232 (Phoenix jack)
    1x SERVICE (Mini-USB, Update port)

  • Receiver

    Inputs: 1x HDBT IN (RJ45, 8-pin female)

    Outputs: 1x HDMI Type A (19-pin female)
    1x AUDIO OUT (3.5mm Stereo Mini-jack)

    Control: 1x IR IN (3.5mm Stereo Mini-jack)
    1x IR OUT (3.5mm Stereo Mini-jack)
    1x RS-232 (Phoenix jack)
    1x SERVICE (Mini-USB, Update port)

Mechanical

Jump to...
  • Housing

    Metal Enclosure

  • Color

    Black

  • Power Supply

    Input: AC 100 - 240V 50/60Hz
    Output: DC 24V/1A (Locking connector)

  • Power Consumption

    9.36 W

  • Operating Temperature

    32 - 104 Degree F (0 - 40 Degree C)

  • Storage Temperature

    -4 - 140 Degree F (-20 - 60 Degree C)

  • Relative Humidity

    20 - 90% RH (no condensation)

Resolution / Distance

Jump to...
  • Resolution / Distance

    4K2K: 394' (120m)
    1080P: 492' (150m)

Resolution / Cable Length

Jump to...
  • Resolution / Cable Length

    HDMI IN / OUT:

    4K60: 16' (5m)
    4K30: 32' (10m)
    1080P60: 50' (15m)

General

Jump to...
  • Dimensions (W x D x H)

    Transmitter / Receiver: 5.5 x 2.5 x 0.7" (140 x 65 x 18mm)

  • Weight

    Transmitter: 5.6 oz (160g)
    Receiver: 5.5 oz (155g)

  • UPC Code

    850009357236

About BZB GEAR BG-EXH-150C

Become a part of the high-definition revolution with the BG-EXH-150C 4K 18Gbps HDMI HDBaseT Extender Transmitter and Receiver. This advanced and reliable device is your ultimate solution for long-range HDMI extension, capable of transmitting high-quality audio and video signals, RS-232, and bi-directional IR up to 150 meters (490 feet) using a single category cable.

Experience the power of 4K2K@60Hz resolution, ensuring your video content is displayed in stunning detail and clarity. The device also features an HDMI loop port at the transmitter end for signal passthrough, enhancing the versatility of your setup.

The BG-EXH-150C also supports audio de-embedding via a 3.5mm connection on the receiver, providing you with more options for audio output. The two-way IR pass-through allows for seamless control of both source and display, making your user experience smoother and more integrated.

Designed with a slim and sleek profile, the BG-EXH-150C can be easily integrated into existing systems, making it a perfect addition to your home theater or conference room setup. Experience the power of 4K HDR and UHD with HDR over HDBaseT, enabling multi-zone transmission of HDR-10 content.

The device also features Power over CAT5E/6/7, eliminating the need for multiple power supplies and ensuring a clean and convenient installation. With HDCP 2.2, your content is protected from illegal copying, while the 18GBPS / HDMI 2.0 technology ensures maximum bandwidth for your 4K@60Hz (4:4:4) resolution content.

The BG-EXH-150C also supports 3rd Party Control System Connections, including RS-232, LAN, IR, and USB, offering you a wide array of connection options. Experience the true power of Ultra HD with a TV resolution of 3,840 x 2,160 pixels, providing a clearer, better defined picture.

With the BG-EXH-150C 4K 18Gbps HDMI HDBaseT Extender Transmitter and Receiver, you're not just watching content, you're experiencing it.

BZB GEAR BG-EXH-150C Features

  • HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
  • Support 18Gbps video bandwidth
  • Support one HDMI loop output on the transmitter
  • De-embeded audio to analog stereo output on receiver
  • With bi-directional IR, RS-232 and CEC pass-through
  • HDR, HDR10+, Dolby Vision and HLG function supported
  • Supports power over CAT5e/6/7 function
  • Compact design for easy and flexible installation

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Extend your HDMI signal up to 492 ft with this reliable HDMI HDBaseT extender kit for seamless connectivity.
  • Experience crystal-clear 4K video with this HDMI extender, supporting 18Gbps bandwidth for optimal viewing.
  • Control your devices remotely using bi-directional IR and RS-232 pass-through features of this HDMI extender.
  • Enjoy versatile audio options with L/R audio breakout, supporting multiple formats via this HDMI extender kit.
  • This HDMI HDBaseT extender offers robust surge protection, safeguarding your equipment from electrical damage.
  • Simplify installations with included mounting ears and locking power adapter for secure HDMI extender setup.

What's in the box:

  • 4K 18Gbps HDMI HDBaseT Extender Transmitter
  • 4K 18Gbps HDMI HDBaseT Extender Receiver
  • IR Blaster Cable (1.5m)
  • 20-60KHz IR Receiver Cable (1.5m)
  • 4x Mounting Ear
  • 2x 3-Pin Phoenix Connector
  • 24V/1A Locking Power Adapter
  • BZB GEAR 2 Year Limited Warranty
