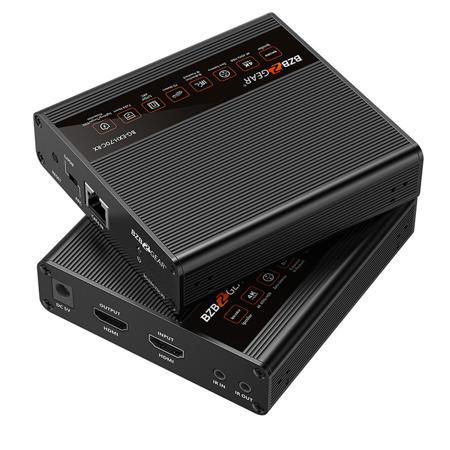

BZB GEAR 4K 18Gbps HDMI Extender Transmitter and Receiver with Bi-Directional IR and Zero Latency

SKU: BZBGEXH70C

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

BZB GEAR BG-EXH-70C Specifications

Technical

Technical

Jump to...
  • HDMI compliance

    HDMI2.0, compatible HDMI1.4

  • HDCP compliance

    HDCP2.2, compatible HDCP1.4

  • Transmission medium

    CAT6/CAT6A/CAT7

  • Transmission distance

    CAT6/6A/7 Transmission 70 meters

  • Video bandwidth

    18Gbps

  • Resolution support

    480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3840x2160@24/25/30/50/60Hz, 4096x2160@24/25Hz, 1280x960, 1280x800, 1280x768, 1680x1050, 1360x768, 1366x768, 1600x900, 1024x768, 800x600

  • Audio support

    LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH/Dolby TrueHD 7.1CH

  • HDR10 (YUV4:4:4)

    support

  • HDMI Loop-out

    support

  • ARC and S/PDIF out

    support

  • EDID through

    support

  • Bi-directional IR passback

    support

  • Input TMDS signal

    0.7-1.2Vp-p

  • Input DDC signal

    5Vp-p

  • Input

    Transmitter: HDMI x1, DC2.1 x1, 3.5mm jack x1 (IR)
    Receiver: DC2.1 x1, RJ45 x1, 3.5mm jack x1 (IR)

  • Output

    Transmitter: HDMI x1, RJ45 x1, 3.5mm jack x1 (IR)
    Receiver: HDMI x1, RJ45 x1, 3.5mm jack x1 (IR), Optical x1

  • HDMI connector

    Type A 19 Pins, Female

  • Network cable standard

    CAT6/CAT6A/CAT7, follow IEEE-5688 standard

Mechanical

Jump to...
  • Housing

    Aluminium alloy material+crystal panel

  • Power supply

    5V/2A

  • Power consumption

    4 W

  • Operation temperature

    -4 - 140 Degree F (-20 - 60 Degree C)

  • Storage temperature

    -22 - 158 Degree F (-30 - 70 Degree C)

  • Relative humidity

    0-90% (no condensation)

Physical

Jump to...
  • Dimensions (L x W x H)

    4.1 x 3.8 x 1" (106 x 99 x 26.2mm)

  • Weight

    7.4 oz (210g)

About BZB GEAR BG-EXH-70C

What sets the BG-EXH-70C 4K HDMI Extender Transmitter and Receiver apart is its ability to transmit an uncompressed 4K@60Hz HDMI signal with zero latency over distances of up to 70 meters. This is made possible by its innovative use of a Cat6/6A/7 network cable, which allows for a signal transmission range far beyond that of standard HDMI cables.

This HDMI extender is not just about video; it's also a powerhouse when it comes to audio. With its digital audio extraction capability via the S/PDIF port, it supports a wide range of audio formats including LPCM, DTS-HD, DTS-Audio, Dolby Digital, and Dolby TrueHD. This ensures that your audio experience is as immersive and high-quality as your visual experience.

The BG-EXH-70C 4K HDMI extender also features an HDMI loop-out, which allows for the connection of an additional display on the transmitter side. This feature makes it an ideal choice for multi-display setups in both professional and home environments.

Ease of use is another key feature of this HDMI extender. With its plug-and-play setup, there's no need for driver installation. It also boasts bi-directional IR pass-through and integrated surge protection, ensuring both flexibility and reliability in its operation.

This HDMI extender supports resolutions up to 4K@60Hz, making it a perfect fit for high-definition video applications. Whether you're a business owner looking to enhance your office's A/V setup, a homeowner aiming to upgrade your home theater system, or a professional A/V integrator seeking reliable and high-performing equipment, the BG-EXH-70C 4K HDMI extender is a top-tier choice.

BZB GEAR BG-EXH-70C Features

  • 4K - Supports resolutions up to 4K@60Hz
  • Audio Extraction - Digital audio can be extracted via the optical audio port
  • Multiple Audio Formats - Supports LPCM, DTS-HD, DTS Audio, Dolby Digital, and Dolby TrueHD
  • Plug and Play - Easy setup, no drivers to install
  • HDMI Loop-Out - Connect an additional display to the transmitter
  • Surge Protection - Integrated surge protection increases reliability
  • Zero Latency
  • 4K@60Hz signal can be transmitted 70 meters over Cat6/6A/7 cable
  • Supports HDR(YUV 4:4:4), EDID passthrough
  • Supports Bi-directional IR passthrough
  • Surge Protection, ESD Protection

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Extend your HDMI signal up to 70 meters with this reliable HDMI extender kit.
  • Experience zero latency with this 4K HDMI extender, perfect for gaming or presentations.
  • Supports HDMI 2.0 and HDCP 2.2 for seamless compatibility with your devices.
  • Bi-directional IR passback lets you control devices from either end of the HDMI cable.
  • Enjoy high-fidelity audio with LPCM, DTS-HD, and Dolby TrueHD support via HDMI.
  • Durable aluminum alloy housing ensures long-lasting performance for your HDMI extension.

What's in the box:

  • 4K 18Gbps HDMI Extender Transmitter
  • 4K 18Gbps HDMI Extender Receiver
  • Wideband IR TX
  • Wideband IR RX
  • 2x 5V2A DC Power Supply
  • 8x Mounting Brackets
  • User Manual
  • 18x Screws
  • BZB GEAR 2 Year Limited Warranty
