BZB GEAR BG-FES12G 12G/6G/3G/HD/SD-SDI Over Single Mode SFP-Type Fiber Optic Extender

SKU: BZBGFES12G MFR: BG-FES12G
Earn VIP Reward Points

Key Features

  • Extend your SDI signal up to 6.25 miles with this reliable Fiber Optic Extender kit.
  • Enjoy pristine image quality with support for up to 12G-SDI video formats.
  • This SDI extender supports SMPTE standards, ensuring compatibility with pro equipment.
  • Get low latency signal transmission, ideal for live broadcasts and critical video feeds.
  • Rugged metal housing ensures durability for broadcast and production environments.
  • Simple to use, this SDI to Fiber converter offers automatic input cable equalization.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$99.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

BZB GEAR BG-FES12G Specifications

Technical

Technical

Jump to...
  • SDI standard

    SD-SDI/ HD-SDI/ 3G-SDI/ 6G-SDI/12G-SDI

  • Auto HD/SD-SDI detection

    Yes

  • Supported protocols

    SMPTE 259M (270Mbps / 360Mpbs), DVB ASI (270Mbps)
    SMPTE 292M / HDTV (1.485Gbps and 1.485/1.001Gbps)
    SMPTE 424M / HDTV (2.97Gbps and 2.97/1.001Gbps)
    SMPTE 2082-1 / HDTV (5.94Gbps and 5.94/1.001Gbps)
    SMPTE 2082-2 / HDTV (11.88Gbps and 11.88/1.001Gbps)

  • Data rates

    270 / 1483 / 1485 / 2967 / 2970 / 5940 / 11880Mbps

  • Video bandwidth

    (11.88Gpbs & 11.88/1.001Gbps)

  • Video support

    (HD) 720p50/59.94/60, 1035i50/59.94/60, 1080i50/59.94/60, 1080p24/30,1080p60,1080p59.94, 4K2Kp30, 4K2Kp60
    (SD) NTSC@59.94Hz, PAL@50Hz

  • SDI signal type

    SMPTE 2082-2, SMPTE 2082-1, SMPTE-424M, SMPTE-292M, SMPTE-259M, DVB-ASI

  • Auto reclocker mode

    Automatic detection: 270Mbps / 1.483Gbps / 1.485Gbps / 2.97Gbps / 2.967Gbps / 5.94Gbps / 5.934Gbps / 11880Gbps / 11868Gbps
    Automatic bypass: 177Mbps / 360Mbps / 540Mbps

  • Output impedance

    75Ohm

  • Fiber Transmission

    6.25 mi (10km)

  • Loop-out

    Transmitter: 1 reclocking SDI loop-out
    Receiver: N/A

  • Input

    Transmitter: 1x BNC (SDI) 1x Optical SFP (SDI)
    Receiver: 1x Optical SFP (SDI)

  • Output

    Transmitter: 1x BNC (SDI) (optional loop-out)
    Receiver: 1x BNC (SDI)

  • BNC connector

    75Ohm inter-locked socket

  • Audio support

    Yes

  • PCB Stack-up

    4-layer board (impedance control - differential 100Ohm ; single 50Ohm )

  • RP-198 pathological patterns

    Immune

  • Optical fiber connector

    SFP-type

Mechanical

Jump to...
  • Housing

    Metal case

  • Power supply

    5V 2A DC Inter-locked power supply

  • Power consumption

    3 Watts (max)

  • Operation temperature

    32-104 Degree F (0-40 Degree C)

  • Storage temperature

    -4 - 140 Degree F (-20 - 60 Degree C)

  • Relative humidity

    20-90% RH (no condensation)

Physical

Jump to...
  • Dimensions (L x W x H)

    2.9 x 2.9 x 1.0" (74 x 74 x 26mm)

  • Weight

    7.4 oz (211g)

  • UPC Code

    850023208200

About BZB GEAR BG-FES12G

For professionals in the video and audio industry seeking a reliable and advanced solution for long-distance signal transmission, the BG-FES12G 12G/6G/3G/HD/SD-SDI Over Single Mode SFP-Type Fiber Optic Extender is an exceptional choice. This high-quality device is engineered to transmit SDI video, embedded audio, and metadata over a single-mode fiber optic cable, extending the reach of your signal up to an impressive 10 km (6.25 miles).

The BG-FES12G is not just a durable extender, but also a versatile tool compatible with multiple SDI formats, including 12G, 6G, 3G, HD, and SD. It's designed to equalize and reclock signals, ensuring pristine, high-quality transmission every time. With a high bandwidth of up to 11.88 Gbps, it supports crystal clear image resolutions up to 1080p@60Hz, making it an ideal choice for applications that require superior image quality.

This innovative extender is perfect for a wide range of applications, from video production and editing to studio-to-studio and studio-to-CATV head-end transmissions. Its fiber-optic connection offers inherent security and resistance to outside interference, making it a favored choice in sensitive environments such as government campuses, military installations, and medical facilities.

The BG-FES12G also features a locking power supply to ensure a reliable connection, further enhancing its dependability. Whether you're a member of a production crew, an IT specialist, or a video editor, this advanced SDI over fiber optic extender is designed to meet your professional needs and exceed your expectations.

BZB GEAR BG-FES12G Features

  • Multiple SDI Formats - 12G/6G/3G/HD/SD
  • High-Bandwidth - Up to 11.88 Gbps
  • Extreme Range - Extend signal up to 10 km (6.25 miles)
  • Automatic Reclocking - Maintains solid signal lock
  • Fiber-Optic Connection - Single-Mode SFP
  • Locking Power Supply - Ensures eliable connection

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Extend your SDI signal up to 6.25 miles with this reliable Fiber Optic Extender kit.
  • Enjoy pristine image quality with support for up to 12G-SDI video formats.
  • This SDI extender supports SMPTE standards, ensuring compatibility with pro equipment.
  • Get low latency signal transmission, ideal for live broadcasts and critical video feeds.
  • Rugged metal housing ensures durability for broadcast and production environments.
  • Simple to use, this SDI to Fiber converter offers automatic input cable equalization.

What's in the box:

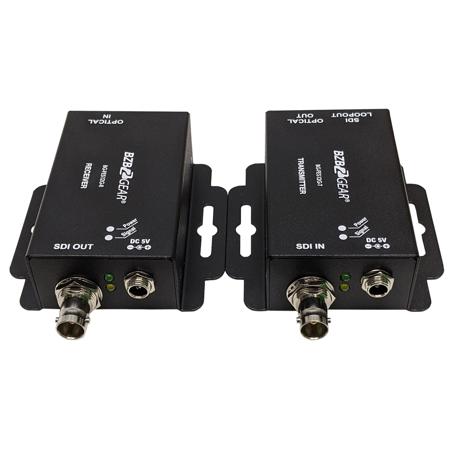

  • BG-FES12G 12G/6G/3G/HD/SD-SDI Over Single Mode SFP-Type Fiber Optic Extender
  • 2x 5V Power Adapter
  • User Manual
  • BZB GEAR 2 Year Limited Warranty
