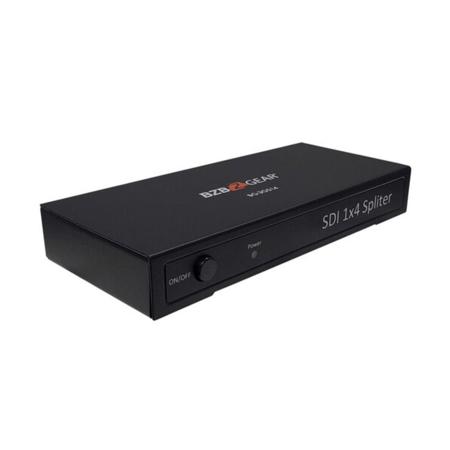

BZB GEAR BG-3GS14 1x4 Full HD 3G-SDI Splitter/Distribution Amplifier

Let the BG-3GS14 1x4 Full HD 3G-SDI Splitter/Distribution Amplifier from BZB Gear elevate your professional video setup. This durable and high-quality device is designed to split a single 3G-SDI input into four separate SDI outputs simultaneously, making it an efficient and reliable solution for broadcasting, live events, and post-production studios.

With its signal relocking feature, the BG-3GS14 can extend your video signal for long-distance transmission, ensuring consistent connections in various scenarios. Whether you're monitoring a video feed on multiple displays, cascading to multiple screens, or extending an SDI signal, this user-friendly device is your go-to solution.

The BG-3GS14 supports a maximum resolution of 1080p@60Hz with a 3G-SDI signal, accommodating a wide range of data rates from 270 Mbps to a maximum bandwidth of 2.97 Gbps. It also supports multiple deep color settings, including 8 bit, 10 bit, and 12 bit, offering you the flexibility to choose the best color depth for your project.

This versatile splitter can maintain SD signals for up to 200m (656ft), HD signals for 120m (393ft), and 3G signals for up to 80m (262ft). It supports multiple video resolutions, including SD 480i, 576i, and 625i, HD 720p@24/25/30/50/60, 1080i@50/60, 1080p@24/25/30, and 3G 1080p@50/60.

The BG-3GS14 also supports multiple color spaces, including RGB or YCbCr 4:4:4 sampled, YCbCr 4:2:2 or 4:2:0 sampled. The quality SDI connectors, with their interlocking design, provide added reliability by preventing SDI cables from being dislodged from the unit due to accidental forces or loose connections.

In conclusion, the BG-3GS14 1x4 Full HD 3G-SDI Splitter/Distribution Amplifier is a robust and efficient tool that offers superior performance and versatility for all your professional video needs.
