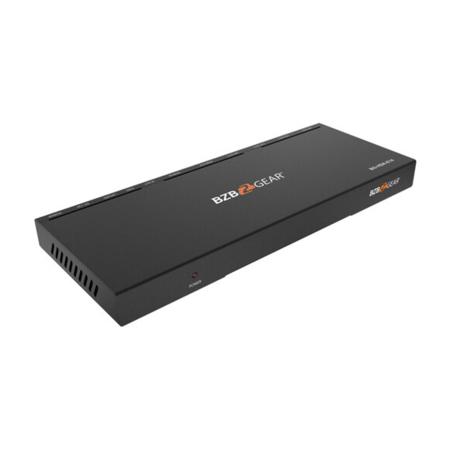

BZB GEAR BG-HDA 1x4 4K30/1080p HDMI Splitter/Distribution Amplifier with 4x Receiver

SKU: BZBGHDAE14 MFR: BG-HDA-E14
Earn VIP Reward Points

Key Features

  • Distribute HDMI video to four displays with this 1x4 HDMI splitter, perfect for presentations.
  • Enjoy reliable signal transmission with low latency, maintaining high-quality video across all screens.
  • Experience wide compatibility, supporting resolutions up to 4K30Hz for clear, crisp images on every display.
  • Easy setup gets your video distribution amplifier running quickly, saving time and effort with a simple install.
  • Control your source device remotely with included IR blaster, adding convenience to your video setup.
  • Extend HDMI signals over long distances using CAT cables for a clean, organized, and professional install.
See More Product Details
Special Order?Estimated to Ship: 08/19/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$49.99

3 Year

$69.99

4 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

BZB GEAR BG-HDA Specifications

Technical

Technical

Jump to...
  • HDMI Compliance

    HDMI 1.4

  • HDCP Compliance

    HDCP 1.4

  • Video Bandwidth

    297MHz/10.2Gbps

  • Video Resolution

    480i -1080p@50/60Hz, 4Kx2K@30Hz (4:4:4)

  • Color Depth

    8-bit, 10-bit, 12-bit (1080p@60Hz); 8-bit (4K@30Hz)

  • Color Space

    RGB, YCbCr_4:4:4/4:2:2, YUV_4:2:0

  • Audio Formats

    LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio

  • ESD Protection

    Human body model: +/-8kV (Air-gap discharge) & +/-4kV (Contact discharge)

Connection

Jump to...
  • Transmitter

    Input:
    1x HDMI IN (Type A, 19-pin female)

    Outputs:
    1x HDMI OUT (Type A, 19-pin female)
    4x CAT OUT (RJ45)

    Controls:
    1x IR OUT (3.5mm Stereo Mini-jack)
    1x EDID DIP switch (4-pin)
    1x Update (Micro USB)

  • Receiver

    Inputs:
    1x IR IN (3.5mm Stereo Mini-jack)
    1x CAT IN (RJ45, 8-pin female)

    Output:
    1x HDMI OUT (Type A, 19-pin female)

Mechanical

Jump to...
  • Color

    Black

  • Housing

    Metal Enclosure

  • Power Supply

    12V/2.5A DC Power (US/EU standards, CE/FCC/RoHs certificated)

  • Power Consumption

    11W

  • Operation Temperature

    32 Degree F - 104 Degree F (0 Degree C - 40 Degree C)

  • Storage Temperature

    -4 Degree F - 140 Degree F (-20 Degree C - 60 Degree C)

  • Relative Humidity

    20-90% RH (non-condensing)

  • Dimensions (W x D x H)

    Transmitter: 8.3 x 3.3 x 0.7" (210 x 83 x 18mm)
    Receiver: 3.1 x 2.7 x 0.7" (79.5 x 69 x 16.5mm)

  • Weight

    Transmitter: 1 lbs (448g)
    Receiver: 4.58 oz (130g)

  • UPC Code

    850033687194

About BZB GEAR BG-HDA

What sets the BG-HDA-E14 apart is its superior functionality as a 4K 1x4 HDMI splitter, capable of distributing a single HDMI source signal to four separate displays. This device is ideal for users who require a single video source, such as a Blu-ray player, computer, game console, or streaming media player, to be broadcast across multiple screens.

This HDMI splitter is designed for simplicity and quality, making installation a breeze while ensuring high-definition video quality. It supports resolutions up to 4K2K@30Hz 4:4:4, guaranteeing that no quality is compromised when your input is divided among the four outputs.

The BG-HDA-E14 is equipped with one HDMI input, one HDMI loop output, and eight CAT outputs. It can extend the signal up to 50m/164ft at 4K@30Hz resolution or up to 70m/230ft at 1080p@60Hz, making it perfect for large spaces.

One of the standout features of this HDMI splitter is its support for power over cable (POC) from the transmitter to receiver, which eliminates the need for an external power supply at the receiver end. It is also HDMI 1.4 and HDCP 1.4 compliant, ensuring compatibility with a wide range of devices.

The BG-HDA-E14 is not just about video; it also handles multiple audio formats, including LPCM 7.1CH, Dolby True HD, and DTS-HD. The RJ45 ports feature link lights, providing a visual indication of connection status for easy troubleshooting.

The device also offers advanced EDID management through a set of DIP switches on the transmitter. The one-way IR control signal pass-through allows for source control from the receivers, with the IR receivers capable of accepting and transmitting a signal from up to 8 meters away.

In summary, the BG-HDA-E14 is a high-quality, efficient, and reliable HDMI splitter that offers advanced features and superior performance, making it a top choice for those seeking to distribute high-definition video and audio signals across multiple displays.

BZB GEAR BG-HDA Features

  • Crystal Clear Images: Supports resolutions up to 4K@30Hz
  • Power over Cable (PoC): Receivers require no power supply
  • Compliant: HDMI 1.4 and HDCP 1.4 compliant to ensure copyright protections
  • HDMI Loop-Out: Connect a local display
  • Multi-Channel Audio Support: Dolby TrueHD, DTS-HD, Dolby Digital Plus, and LPCM 7.1
  • Control: IR Passthrough
  • Extend the signal transmission distance up to 164'/50m at the resolution of 4K@30Hz, or 230'/70m at 1080P@60Hz via a single CAT6 cable
  • Support 1 HDMI input, 1 HDMI loop output and 4 CAT outputs
  • Advanced EDID management

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Distribute HDMI video to four displays with this 1x4 HDMI splitter, perfect for presentations.
  • Enjoy reliable signal transmission with low latency, maintaining high-quality video across all screens.
  • Experience wide compatibility, supporting resolutions up to 4K30Hz for clear, crisp images on every display.
  • Easy setup gets your video distribution amplifier running quickly, saving time and effort with a simple install.
  • Control your source device remotely with included IR blaster, adding convenience to your video setup.
  • Extend HDMI signals over long distances using CAT cables for a clean, organized, and professional install.

What's in the box:

  • HDMI 1x4 Splitter
  • 4x CAT Receiver
  • IR Blaster Cable (1.5m)
  • 4x IR Receiver Cable (1.5m)
  • 2x Mounting Ear
  • 12V/2.5A DC Locking Power Adapter
  • 8x Machine Screw (KM3x4)
  • User Manual
  • BZB GEAR 3 Year Limited Warranty
