BZB GEAR BG-UHD-QVP-4X2 4K/UHD 4x2 Seamless Multiviewer/Presentation Switcher/Scaler with USB Capture Card
SKU: BZBGHDQVP4X2 MFR: BG-UHD-QVP-4X2
Earn VIP Reward PointsKey Features
- Seamless 4K video switching for dynamic presentations and live events.
- Create engaging content with the multiviewer function; perfect for streaming!
- Enjoy low latency HDMI switching, ensuring smooth transitions during critical moments.
- Capture and record via USB for software compression, ideal for archiving content.
- Wide compatibility with various devices and software for easy integration.
- Reliable 4x2 video switcher supports up to 4K@60Hz for high-quality output.
Ships from Manufacturer?
Free Shipping
See Options
1
Protect your gear with Adorama Protect.* Learn more
2 Year
$119.99
3 Year
$159.99
4 Year
$191.99
Available to U.S. customers only.
Need help? Ask our experts.
Overview
Compare
Specs
Protection
Q&A
About BZB GEAR BG-UHD-QVP-4X2

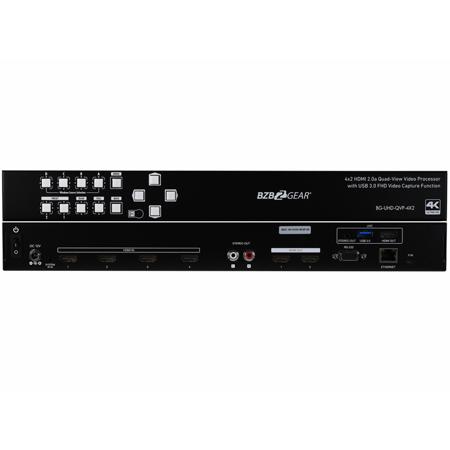

The BG-UHD-QVP-4X2 is a 4K Quad-View/Multi-Viewer Video Processor suitable for digital signage, presentation spaces, conference rooms, and live or recorded broadcasting. The integrated USB 3.0 capture and auto-scaling outputs at resolutions up to 1080p with 2 channel audio for use with programs like Skype, Zoom, vMix, or OBS Studio. The unit is capable of routing ultra-high definition video sources from four UHD HDMI input sources to the two HDMI display outputs and one HDMI loop output simultaneously while delivering resolutions up to 4K2K@60Hz 4:4:4 using HDMI 2.0a technology. It can also extract audio via the 3.5mm output.
Control options include the front panel, a built-in web interface, and third-party control via RS-232 and IR. Simply select a customizable layout, choose your inputs and route them to the desired display windows. Packed with options including PIP, PBP, fade-in/out, blend, zoom, and more the BG-UHD-QVP-4X2 gives you studio-quality results with every presentation.
4K 60 4:4:4 Support
Supports input resolutions up to 4096x2160@60Hz (4:4:4).
Seamless Switching
Instantaneously switch between sources with no signal interruption.
Control
RS-232, IR, Web interface.
USB Capture
Convert HDMI sources and output via USB at resolutions up to 1080P.
HDMI Loop Out
Monitor UVC output.
Analog Output
Send signal to an external audio system.
Ideal fit for:
• Conference Rooms
• Studios
• Meeting Halls
Who is buying it
• Broadcasters and Streamers
• Houses of worship
• Schools
Interface
HDMI
Crystal clear image with resolutions up to 4K@60Hz.
LAN
Power over Ethernet, IP Control, and streaming interface.
USB
USB 3.0 plug & play connectivity.
Audio Out
Stereo audio output for connecting mics and embedding local audio.
Power
Flexible power options for easy installation. Use supplied Power Adapter or POE (Power Over Internet) function.
RS-232 Control
If you are looking for simple solution to control of a wider variety of cameras, the RS-232 is for you.
BZB GEAR BG-UHD-QVP-4X2 Features
- 4K 60 4:4:4 Support - Supports input resolutions up to 4096x2160@60Hz (4:4:4)
- USB Capture - Convert HDMI sources and output via USB at resolutions up to 1080P
- Analog Output - Send signal to an external audio system
- HDMI Loop Out - Monitor UVC output
- Control - RS-232, IR, Web interface
- Seamless Switching - Instantaneously switch between sources with no signal interruption
- 4x HDMI inputs and 2x HDMI outputs
- Supports input resolutions from 640x480 to 4K@60Hz interlaced or progressive
- Supports output resolutions up to 4K@60Hz 4:4:4
- Adjustable size & position via software & cloud control utility
- Supports PIP, PBP, POP, full-screen, & quad-view
- HDCP 1.4/2.2 compliant
- Upgradable firmware
- Customizable titles, borders, and colored backgrounds
- Customizable background & logo
- Resize, position, pan, zoom, and blend video output
- Seamless switching, fade in/out, wipe, and dissolve in full screen mode
- Functions as video converter/switcher
- Supports uncompressed 7.1ch HDMI audio
- Control via front panel, IR remote, or software (RS-232 & Ethernet)
- Supports cloud control
- USB 3.0 FHD Video Capture
- HDMI audio and video streams over USB 3.0
- UVC 1.0
- Supports resolutions up to 1080p@60Hz
- Supports HDMI audio extraction
- Supports HDMI loop out up to 4K@60Hz
- H.264 recording format
- Compatible with Windows, Mac, and Linux
- Compatible with most third-party software (OBS Studio, AMCap, etc.)
Warranty Information
This product has a limited warranty of 24 months.
