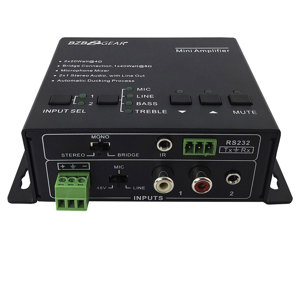

BZB GEAR BG-AMPC40 2-Channel 40W 70V Stereo/Mono Audio Class-D Amplifier

SKU: BZBGMPC40

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What are the different input options available on the BG-AMPC40 amplifier?

The BG-AMPC40 amplifier offers a wide range of input options. It includes two stereo inputs with a 3.5mm port and RCA connectors for left and right channels, a TOSLINK input for digital audio, and a balanced MIC input with selectable 48V phantom power.

What integrated functions does the BG-AMPC40 amplifier feature?

The BG-AMPC40 amplifier features integrated functions such as ducking, which automatically lowers the music volume when speaking into the microphone, EQ control for adjusting audio frequencies, and a MIC mixer for blending vocal and instrumental sounds.

How can I control multiple BG-AMPC40 amplifiers in a setup?

The BG-AMPC40 amplifier has a rotary knob that allows users to select from 16 IR ID codes, making it easy to control multiple amplifiers in a setup. Additionally, it can be controlled via RS232 commands for advanced system integration.

What is the power output of the BG-AMPC40 amplifier?

The BG-AMPC40 is a 40-Watt digital stereo amplifier. It also has a switchable output of 70V or 100V, making it suitable for a wide range of audio applications.

What is the purpose of the noise suppression feature in the BG-AMPC40 amplifier?

The noise suppression feature in the BG-AMPC40 amplifier is designed to reduce external noise interference on the 3-pin MIC input, ensuring clear and high-quality sound reproduction.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

BZB GEAR BG-AMPC40 Specifications

Audio Input

Audio Input

Jump to...
  • Input

    2x Stereo Audio, 1x MIC, 1x Digital Fiber Audio

  • Input Connector

    2x RCA, 1x 3.5mm Jack, 1x 3-pole 3.81mm Captive Screw Connector, 1x SPF Fiber Connector

  • Input Impedance

    >10K Ohm

Audio Output

Jump to...
  • Output

    1x Mono Amplifier

  • Output Connector

    1x 3-pole 3.81mm Captive Screw Connector

  • Output Type

    Constant voltage 70V or 100V

Audio General

Jump to...
  • Frequency Response

    120Hz - 20KHz

  • CMRR

    >70dB@20Hz - 20KHz

  • SNR

    80dB (Max)

  • Bandwidth

    120Hz - 20KHz

  • Rated Power Output

    40Watt

  • THD + Noise

    1%@1KHz, 0.3%@20KHz at nominal level

  • Voltage Gain

    26dB

Control Function

Jump to...
  • RS232 Control

    1x 3-pole 3.81mm Captive Screw Connector

  • Front Panel Control

    Buttons

  • ID Code Control

    16 ID Codes for control

  • Optional

    IR Remote & TCP/IP controlled by programmable interface

General

Jump to...
  • Temperature

    14 - 104 Degree F (-10 - +40 Degree C)

  • Humidity

    10% - 90%

  • Power Supply

    DC 24V 2.71A Power Adapter

  • Standby Power Consumption

    5W

  • Dimensions (W x H x D)

    5.1 x 1.7 x 5.7" (130 x 44 x 144mm) (1U High)

  • Weight

    1.9 lbs (860g)

About BZB GEAR BG-AMPC40

Be at the forefront of audio amplification with the BG-AMPC40, a robust 40-Watt digital stereo amplifier that embodies power, efficiency, and versatility. Engineered with cutting-edge Class-D technology, this amplifier delivers a potent audio experience with a switchable output of 70V or 100V, catering to a diverse range of sound systems.

The BG-AMPC40 boasts a comprehensive array of inputs to accommodate various audio sources. It features two stereo inputs, including a convenient 3.5mm port for line-in connectivity and dual RCA connectors for left and right channels, ensuring compatibility with a multitude of devices. Additionally, a TOSLINK input provides pristine digital audio support, while a balanced MIC input with selectable 48V phantom power accommodates both balanced and unbalanced signals, enhancing the amplifier's adaptability.

This high-quality amplifier is designed with meticulous attention to detail, incorporating external noise suppression for the 3-pin MIC input to ensure crystal-clear sound reproduction. The integrated functions of the BG-AMPC40 are thoughtfully crafted for professional audio management, including ducking, which automatically lowers the music volume when speaking into the microphone, EQ control for fine-tuning audio frequencies, and a MIC mixer for seamless blending of vocal and instrumental elements.

The user-friendly interface of the BG-AMPC40 is highlighted by a rotary knob that allows for the selection from 16 IR ID codes, simplifying the control of multiple amplifiers within a setup. The front panel is equipped with intuitive controls for input selection, volume adjustments for both MIC and Line inputs, and bass/treble settings to sculpt the perfect audio landscape.

For advanced system integration, this reliable amplifier can be controlled via RS232 commands, offering a high degree of customization and automation for users. This feature, combined with the traditional front panel buttons and IR commands, ensures that the BG-AMPC40 is not only a powerful and high-quality audio solution but also a remarkably efficient and user-friendly device for any audio professional or enthusiast seeking a durable and reliable amplifier for their music system, public address system, or other sound reinforcement applications.

BZB GEAR BG-AMPC40 Features

  • Microphone Input: 3-level Mic input with mixer function
  • Amplify Your Sound: Outputs 40Watts at either 70V or 100V
  • Compact: Small form factor ideal where full-sized amplifiers will not fit
  • Multiple Control Options: Take control using RS232, IR, or push buttons
  • Durable: Metal enclosure designed to last for years
  • Bass, Treble, & Volume: Control bass, treble and volume levels conveniently using integrated push buttons
  • Ducking function
  • 16 ID codes for controlling between different amplifiers
  • MIC port can support balance/unbalance signal, suppress the external noise effectively
  • Fast switching speed for good performance
  • Convection cooler, fan is not needed
  • LED indicator, for power and working status

Warranty Information

This product has a limited warranty of 36 months.

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with this stereo amplifier's impressive 80dB signal-to-noise ratio.
  • This compact form factor amplifier delivers 40W of power, perfect for small to medium-sized venues.
  • Achieve optimal impedance matching for your speakers with this versatile 70V/100V power amplifier.
  • Enjoy reliable protection circuits that safeguard your audio equipment from potential damage.
  • Easily integrate this Class-D amplifier into your setup with multiple input options, including RCA.
  • Customize your sound with low total harmonic distortion for pristine audio fidelity at any volume.

What's in the box:

  • BZB GEAR BG-AMPC40 2-Channel 40W 70V Stereo/Mono Audio Class-D Amplifier
  • 2x Mounting Ears with 4 Screws
  • 4x Plastic Cushions
  • 2x Pluggable Terminal Blocks
  • RS232 Cable
  • Power Adapter (DC 24V 2.71A)
  • User manual
  • BZB GEAR 3 Year Limited Warranty
