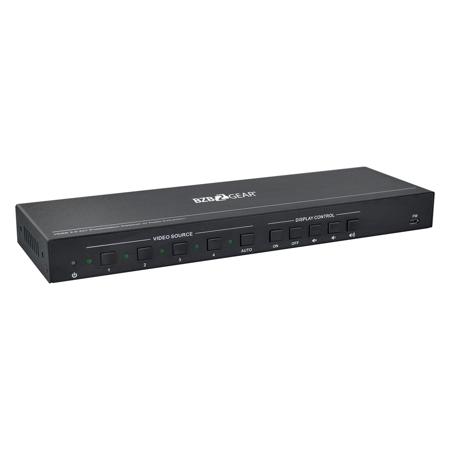

BZBGEAR BG-PHD4X1 4x1 4K UHD Presentation Switcher
See all BZB GEAR items

BZB GEAR BG-PHD4X1 4x1 4K UHD Presentation Switcher with HDMI, DisplayPort and Audio De-Embedding

SKU: BZBGPHD4X1
Be the first to review this item

This item is no longer available.

Recommended Alternatives

BZB GEAR BG-UM44-100M-KIT: Picture 1 regular
BZB GEAR BG-UM44-100M-KIT 4x4 4K HDMI/HDBaseT/Audio Matrix Switcher w/4x RX,328'
$6,999.00
BZB GEAR BG-UM88-100M-KIT: Picture 1 regular
BZB GEAR BG-UM88-100M-KIT 8x8 4K HDMI/HDBaseT/Audio Matrix Switcher w/8xReceiver
$12,999.00
BZB GEAR BG-4K-VP1616: Picture 1 regular
BZB GEAR BG-4K-VP1616 16x16 4K 60Hz HDMI Matrix Switcher & Video Wall Processor
$13,999.00$10,999.00
BZB GEAR BG-4K-VP1616PRO: Picture 1 regular
BZB GEAR BG-4K-VP1616PRO 16x16 4K HDMI/LAN Matrix Switcher/Video Wall Processor
$17,999.00$16,999.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

BZB GEAR BG-PHD4X1 Specifications

Video

Video

Jump to...

  • Video Input

    1x HDMI/MHL, 2x HDMI, 1x DP

  • Video Input Connector

    3x Type-A female HDMI, 1x DisplayPort

  • HDMI Input Resolution

    Up to 4Kx2K@60Hz 4:4:4 8bit

  • MHL Input Resolution

    Up to 1080P@60Hz

  • DP Input Resolution

    Up to 4Kx2K@60Hz 4:4:4 8bit

  • Video Output

    1x HDMI

  • Video Output Connector

    1x Type-A female HDMI

  • HDMI Output Resolution

    Up to 4Kx2K@60Hz 4:4:4 8bit

  • HDMI Version

    2.0

  • HDCP Version

    2.3

  • MHL Version

    2.2

  • DP Version

    1.2

  • HDR 10

    Supported

  • CEC

    Supported

  • HPD

    Supported

Audio

Jump to...

  • Audio Output

    1x OPTICAL, 1x Stereo balanced L/R

  • Audio Output Connector

    1x Toslink connector, 1x 5-pin terminal block

  • HDMI Audio Format

    LPCM 7.1 audio, Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, DTS: X, and DTS-HD Master Audio pass-through

  • Stereo analog L/R audio Format

    PCM

  • Toslink Digital Audio Format

    PCM, Dolby Digital, DTS, DTS-HD

  • Max Output Level

    2.0Vrms +/- 0.5dB. 2V = 16dB headroom above -10dBV (316mV) nominal consumer line level signal

  • THD+N

    <0.05% (-80dB), 20Hz - 20KHz bandwidth, 1KHz sine at 0dBFS level (or max level)

  • SNR

    >80dB, 20Hz - 20KHz bandwidth

  • Crosstalk Isolation

    >70dB, 10KHz sine at 0dBFS level (or max level before clipping)

  • L-R Level Deviation

    < 0.3dB, 1KHz sine at 0dBFS level (or max level before clipping)

  • Frequency Response Deviation

    < +/- 0.5dB 20Hz - 20KHz

  • Output Load Capability

    1K Ohm and higher (supports 10x paralleled 10K Ohm loads)

  • Stereo Channel Separation

    >70dB @1KHz

Control Part

Jump to...

  • Control

    1x FW, 1x EDID, 1x IR IN, 1x RS232, 1x TCP/IP

  • Control Connector

    1x Micro-USB, 1x 4-pin DIP switch, 1x 3.5mm mini jack, 1x 3-pin terminal block, 1x RJ45

General

Jump to...

  • HDMI 2.0 Cable Length

    4K@60Hz 4:4:4 <= 5m, 4K@60Hz 4:2:0 <= 10m, 1080P <= 15m

  • Bandwidth

    18 Gbps

  • Operation Temperature

    14 Degree F to +131 Degree F (-10 Degree C to +55 Degree C)

  • Storage Temperature

    -13 Degree F to +158 Degree F (-25 Degree C to +70 Degree C)

  • Relative Humility

    10% - 90%

  • External Power Supply

    Input: AC 100-240V, 50/60Hz, Output: 12V DC 1A

  • Power Consumption

    5 W (Max)

Physical

Jump to...

  • Dimensions (W x H x D)

    10.31 x 1.02 x 3.30" (262 x 26 x 84mm)

  • Weight

    11.28 oz (320g)

About BZB GEAR BG-PHD4X1

The BG-PHD4X1 allows selection of four different sources (three HDMI inputs and one DisplayPort input), and will simultaneously switch the selected video to HDMI output. It supports video resolution up to 4Kx2K@60Hz 4:4:4 8bit, 1080P, and 3D. In addition, there is the smart built-in EDID setting can be selected by the 4-pin DIP switch on the rear panel.

The BG-PHD4X1 supports stereo and multichannel audio on the HDMI inputs. In addition to the audio embedded in the HDMI output stream, the audio is simultaneously de-embedded to an optical digital audio output and a balanced analog audio output.

The BG-PHD4X1 features multiple methods of control. When in the AUTO mode, the switcher will automatically switch to the first detected source device. When the active source is removed, the switcher will switch from input 1 to 4. The switcher can be manually controlled by the front panel buttons, IR remote and RS232 command. CEC allows the display device can be controlled by the front panel buttons and RS232 CEC commands.

HDMI
Supports HDMI 2.0 (18Gbps), HDCP 2.3, HDR10+, Dolby Vision

4K
Supports resolutions up to 4K@60Hz 4:4:4

Auto-Switching
Automatically selects active inputs for easy operation

Third Party Control
Supports RS-232, IR, and HDMI-CEC control methods

Audio De-Embedding
Optical and balanced analog audio outputs

Smart EDID
Custom settings available for best compatibility

Ideal Fit For:
• Conference Rooms
• Auditoriums
• Classrooms

Who is buying it?
• Businesses
• IT Professionals
• Educators

Interface

HDMI
Crystal clear image with resolutions up to 4K@60Hz

LAN
Power over Ethernet, IP Control, and streaming interface

RS-232 Control
If you are looking for simple solution to control of a wider variety of cameras, the RS-232 is for you

Micro USB
Upgrade the software in your controller by directly plugging into this connection from your PC

Power
Flexible power options for easy installation. Use supplied Power Adapter or POE (Power Over Internet) function

BZB GEAR BG-PHD4X1 Features

  • HDMI: Supports HDMI 2.0 (18Gbps), HDCP 2.3, HDR10+, Dolby Vision
  • 4K: Supports resolutions up to 4K@60Hz 4:4:4
  • Auto-Switching: Automatically selects active inputs for easy operation
  • Third Party Control: Supports RS-232, IR, and HDMI-CEC control methods
  • Audio De-Embedding: Optical and balanced analog audio outputs
  • Smart EDID: Custom settings available for best compatibility

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • HDMI: Supports HDMI 2.0 (18Gbps), HDCP 2.3, HDR10+, Dolby Vision
  • 4K: Supports resolutions up to 4K@60Hz 4:4:4
  • Auto-Switching: Automatically selects active inputs for easy operation
  • Third Party Control: Supports RS-232, IR, and HDMI-CEC control methods
  • Audio De-Embedding: Optical and balanced analog audio outputs
  • Smart EDID: Custom settings available for best compatibility

What's in the box:

  • BG-PHD4X1 4x1 4K UHD Presentation Switcher
  • 2x Mounting Ears with 4 Screws
  • 4x Plastic Cushions
  • IR Receiver
  • IR Remote
  • 3-Pin Terminal Block
  • 5-Pin Terminal Block
  • RS232 Cable (3-Pin Terminal Block to DB9)
  • Power Adapter (12V DC/1A)
  • User Manual
  • BZBGEAR 2 Year Limited Warranty
