BZB GEAR BG-PSC8X2HDB 8x2 4K 18Gbps HDMI HDBaseT Seamless Presentation Switcher
See all BZB GEAR items

BZB GEAR BG-PSC8X2HDB 8x2 4K 18Gbps HDMI HDBaseT Seamless Presentation Switcher

SKU: BZBGSC8X2HDB
Be the first to review this item

This item is no longer available.

Recommended Alternatives

BZB GEAR BG-UM44-100M-KIT: Picture 1 regular

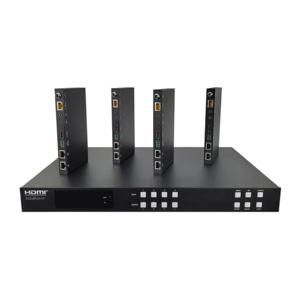

BZB GEAR BG-UM44-100M-KIT 4x4 4K HDMI/HDBaseT/Audio Matrix Switcher w/4x RX,328'
$6,999.00
BZB GEAR BG-UM88-100M-KIT: Picture 1 regular
BZB GEAR BG-UM88-100M-KIT 8x8 4K HDMI/HDBaseT/Audio Matrix Switcher w/8xReceiver
$12,999.00
BZB GEAR BG-4K-VP1616: Picture 1 regular

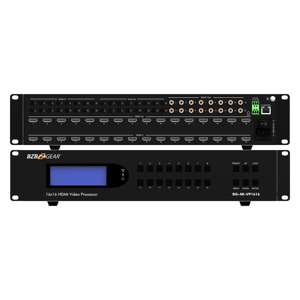

BZB GEAR BG-4K-VP1616 16x16 4K 60Hz HDMI Matrix Switcher & Video Wall Processor
$13,999.00$10,999.00
BZB GEAR BG-4K-VP1616PRO: Picture 1 regular

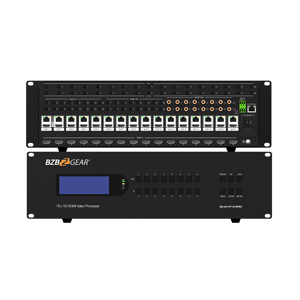

BZB GEAR BG-4K-VP1616PRO 16x16 4K HDMI/LAN Matrix Switcher/Video Wall Processor
$17,999.00$16,999.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What type of inputs does the BG-PSC8X2HDB 8x2 4K 18Gbps HDMI HDBaseT Seamless Presentation Switcher support?

The BG-PSC8X2HDB supports a variety of digital sources with six HDMI inputs, one Display Port, and one VGA port, making it versatile for any professional setting.

Does the BG-PSC8X2HDB support high-resolution content?

Yes, the BG-PSC8X2HDB is compliant with the latest HDMI 2.0 and HDCP 2.2 standards, as well as DisplayPort 1.2, ensuring compatibility with high-resolution content.

How does the BG-PSC8X2HDB handle audio integration?

The switcher includes eight stereo inputs for audio embedding with any video source. It also has a built-in microphone mixer with adjustable trim and 48V phantom power, and a 20W stereo output capable of powering two speakers directly.

What environments is the BG-PSC8X2HDB suitable for?

The BG-PSC8X2HDB is an ideal fit for environments that demand high-quality audiovisual performance, including conference rooms, convention centers, auditoriums, lecture halls, offices, event staff, universities, and community centers.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

BZB GEAR BG-PSC8X2HDB Specifications

Technical

Technical

Jump to...

  • HDMI Compliance

    HDMI 2.0

  • HDCP Compliance

    HDCP 2.2

  • DP Version

    DP 1.2

  • Video Bandwidth

    18Gbps

Video Resolution

Jump to...

  • Input Video Resolution

    800x600@60Hz, 1024x768@60Hz, 1280x768@60Hz, 1280x800@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1366x768@60Hz, 1400x1050@60Hz, 1440x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1200@60Hz.480p,576p,720p, 1920x1080i, 1920x1080p, 3840x2160@24Hz/25Hz/30Hz/50Hz/60Hz, 4096x2160@24Hz/25Hz/30Hz/50Hz/60Hz.

  • Output Video Resolution

    Auto, 3840x2160@60Hz, 3840x2160@50Hz, 3840x2160@30Hz, 1920x1080@60Hz, 1920x1080@50Hz, 1280x720@60Hz, 1024x768@60Hz, 1360x768@60Hz, 1600x1200@60Hz, 1920x1200@60Hz.

  • EDID Option

    Auto, Manual, 3840x2160@60, 3840x2160@30, 1920x1080@60, 1280x720@60, 1920x1200@60

  • HDMI Amplitude

    T.M.D.S +/- 0.4Vpp

  • Differential Impedance

    100 +/-15ohm

  • ESD Protection

    Human-Body Model: +/-8kV (Air-gap discharge), +/-4kV (Contact discharge)

RS232/Ethernet Control

Jump to...

  • Baud Rate and Protocol

    Baud Rate: 9600, data bit: 8 Stop bit: 1, no parity checking

  • Ethernet

    IE10.0+, HTML5

Mechanical

Jump to...

  • Color

    Black

  • Housing

    Metal Enclosure

  • Power Supply

    AC 110 - 240V

  • Power Consumption

    60W (Max)

  • Operating Temperature

    32 - 104 Degree F (0 - 40 Degree C)

  • Storage Temperature

    -4 Degree F - 158 Degree F (-20 Degree C - 70 Degree C)

  • Relative Humidity

    10%-50% RH (Non-Condensing)

Physical

Jump to...

  • Dimensions (W x D x H)

    16.9 x 8.7 x 1.7" (430 x 220 x 44mm)

  • Weight

    7 lbs (3.2kg)

Other

Jump to...

  • UPC Code

    850023208750

About BZB GEAR BG-PSC8X2HDB

The BG-PSC8X2HDB is an 18Gbps 8x2 seamless 4K presentation switcher. Equipped with 8 video inputs including 6 HDMI ports, 1 Display Port, and 1 VGA port, this HDMI 2.0, HDCP 2.2 and DP 1.2 compliant unit supports multi-format signal processing for seamless switching between all sources. It features automatic input scaling at resolutions up to 4K@60Hz 4:4:4.

Video output is available via simultaneous HDMI and HDBaseT ports. The HDBaseT output extends signal up to 70 meters at 1080P, or 45 meters at 4K.

Third-party control is supported with bi-directional IR and RS-232 connections and the equipped EDID management helps eliminate video compatibility issues.

Easily embed audio with any of the 8 stereo inputs. The integrated microphone mixer supports adjustable trim and 48V phantom power. Extract audio from the balanced output or power 2 speakers with the 20W stereo output.

Ideal fit for
• Conference Rooms
• Convention Centers
• Auditoriums and Lecture Halls
• Offices
• Event Staff
• Universities and Community Centers

BZB GEAR BG-PSC8X2HDB Features

  • Crystal Clear Images: Stunning image quality in 4K@60 4:4:4
  • Integrated Audio Amplifier: Power 2 speakers via 20W stereo outputs
  • Integrated Microphone Mixer: Features adjustable trim and 48V Phantom Power
  • EDID Management: Eliminates video compatibility issues
  • HDBaseT Output: Extend signal up to 70 meters at 1080P, or 45 meters at 4K
  • Multiple Control Options: Bi-Directional IR, RS232, and IP Control
  • HDMI 2.0, HDCP 2.2 and DP 1.2 compliant
  • Support 18 Gbps video bandwidth
  • Mirrored output with HDMI and HDBaseT output ports
  • Support seamless switching
  • 8 Video inputs: 6 HDMI ports, 1 DP port, 1 VGA port
  • 9 Audio source selections (LR1 to LR8 and embedded audio) for HDMI/DP input

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Crystal Clear Images: Stunning image quality in 4K@60 4:4:4
  • Integrated Audio Amplifier: Power 2 speakers via 20W stereo outputs
  • Integrated Microphone Mixer: Features adjustable trim and 48V Phantom Power
  • EDID Management: Eliminates video compatibility issues
  • HDBaseT Output: Extend signal up to 70 meters at 1080P, or 45 meters at 4K
  • Multiple Control Options: Bi-Directional IR, RS232, and IP Control

What's in the box:

  • BZB GEAR BG-PSC8X2HDB 8x2 4K 18Gbps HDMI HDBaseT Seamless Presentation Switcher
  • HDBaseT Receiver
  • AC Power Cord
  • 2x Mounting Ear and 2x Handle
  • 12x 3-Pin Phoenix Connector
  • 4-Pin Phoenix Connector
  • 5-Pin Phoenix Connector
  • IR Blaster Cable (1.5m)
  • IR Receiver Cable (1.5m)
  • User Manual
  • BZB GEAR 3 Year Limited Warranty
