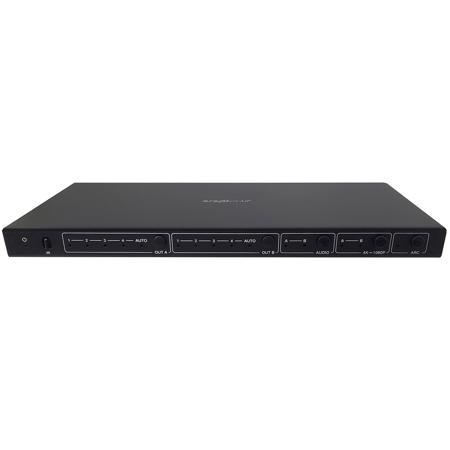

BZB GEAR BG-UHD-42M 4x2 HDMI 4K 60Hz 18Gbps Matrix Switcher with Audio/Downscaling Support

SKU: BZBGUHD42M MFR: BG-UHD-42M
Earn VIP Reward Points

Key Features

  • Seamlessly switch between four HDMI sources with this 4K HDMI matrix switcher.
  • Enjoy high resolution video up to 4K60Hz with 18Gbps bandwidth for stunning clarity.
  • Extract audio via optical or L/R outputs for enhanced sound system integration.
  • Experience reliable connection with HDCP 2.2 & 1.4 compliance for protected content.
  • This affordable price video switcher supports downscaling for mixed resolution displays.
  • Easy setup ensures you're quickly routing HDMI signals with minimal hassle.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$12.99

2 Year

$19.99

3 Year

$29.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

BZB GEAR BG-UHD Specifications

Technical

Technical

Jump to...
  • HDMI Compliance

    HDMI 2.0

  • HDCP Compliance

    HDCP 2.2 and HDCP 1.4

  • Video Bandwidth

    18 Gbps

  • Video Resolution

    Up to 4K2K@50/60Hz(YCbCr 4:4:4), 4K2K@30Hz. All HDMI 3D TV Format, etc.

  • Color Space

    RGB, YCbCr4:4:4,YCbCr4:2:2, YCbCr 4:2:0

  • Color Depth

    8-bit, 10-bit, 12-bit (1080P, 4K30Hz, 4K60Hz (YCbCr 4:2:0)) 8-bit (4K60Hz (YCbCr4:4:4))

  • HDMI Audio Formats

    PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD

  • Optical Audio Formats

    PCM2.0, Dolby Digital / Plus, DTS

  • L/R Audio Formats

    PCM2.0CH (Note: If ARC Function is Turned On, The Audio Port will Mute.)

  • ESD Protection

    Human-Body Model: +/-8kV (Air-Gap Discharge), +/-4kV (Contact Discharge)

Connections

Jump to...
  • Input Ports

    4x HDMI Type A (19-pin Female)

  • Output Ports

    2x HDMI Type A (19-pin Female) 1 xL/R Audio out (3.5mm Stereo Mini-Jack) 1 xOPTICAL Audio Out (S/PDIF)

Mechanical

Jump to...
  • Housing

    Metal Enclosure

  • Color

    Black

  • Power Supply

    Input: AC100-240V 50/60Hz Output: DC12V/1A

  • Power Consumption

    3.8W (max)

  • Operating Temperature

    0 Degree C - 40 Degree C / 32 Degree F - 104 Degree F

  • Storage Temperature

    -20 Degree C - 60 Degree C / -4 Degree F - 140 Degree F

  • Relative Humidity

    20-90% RH (non-condensing)

  • Dimensions (W x D x H)

    9.8 x 4.1 x 0.7" (251 x 105 x 20mm)

  • Weight

    1.3 oz (620g)

  • UPC Code

    850009357045

About BZB GEAR BG-UHD

How can you seamlessly manage multiple high-definition audio and video sources The answer lies in the advanced BG-UHD-42M 4x2 HDMI 4K 60Hz 18Gbps Matrix Switcher. This state-of-the-art device is a sophisticated solution for distributing high-definition audio and video signals at resolutions reaching up to 4K@60Hz 4:4:4 8 bits with HDR.

Being HDCP 2.2 compliant, this high-tech switcher boasts 4 HDMI 2.0a inputs and 2 HDMI 2.0a outputs, all supporting full multi-channel audio. It's an innovative tool that can downscale from 4K to 1080P, ensuring compatibility with legacy displays.

Designed for diverse environments, the BG-UHD-42M 4x2 HDMI Matrix Switcher is perfect for conference rooms, restaurants, and home A/V systems. It's integration-friendly, featuring IR control with a remote included, external IR input, RS-232, IP, and Cloud Control ability.

This switcher is more than just a device; it's a solution. With advanced EDID management, it enables rapid integration of sources and displays. The front panel buttons, IR, RS-232, IP, and GUI make it a 4x2 Matrix that can route any of the 4 inputs to either of the 2 outputs.

The auto-scaling feature supports resolution downscaling from 4K to 1080P, making it a versatile tool for professional A/V installers, small business owners, and universities. The HDMI interface ensures a crystal clear image with resolutions up to 4K@60Hz.

The L/R Audio Out provides stereo audio output for connecting mics and embedding local audio into all four video output interfaces. The micro USB port allows for software upgrades directly from your PC. With flexible power options, including a supplied Power Adapter or POE (Power Over Internet) function, installation is a breeze.

Experience the convenience and sophistication of the BG-UHD-42M 4x2 HDMI 4K 60Hz 18Gbps Matrix Switcher, exclusively from BZBGEAR.

BZB GEAR BG-UHD Features

  • 4K - Supports Resolutions up to 4K@60Hz 4:4:4
  • HDMI - HDMI 2.0, HDCP 2.2/HDCP1.4 and DVI 1.0 Compliant
  • EDID- Advanced EDID Management for Rapid Integration of Sources and Displays
  • Integration Friendly - Front Panel Buttons, IR, RS-232, IP, and GUI
  • 4x2 Matrix - Route Any of the 4 Inputs to Either of The 2 Outputs
  • Auto-Scaling- Supports Resolution Downscaling From 4K to 1080P
  • Supports 18Gbps Uncompressed Bandwidth on All HDMI Ports
  • Features 4 HDMI Inputs and 2 HDMI Outputs
  • Supports Dolby Vision, HDR 10+, HLG, and CEC Function
  • Supports Audio De-Embedding via Optical and Analog Outputs
  • Both Outputs Support Downscaling from 4K to 1080p
  • Supports ARC

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Seamlessly switch between four HDMI sources with this 4K HDMI matrix switcher.
  • Enjoy high resolution video up to 4K60Hz with 18Gbps bandwidth for stunning clarity.
  • Extract audio via optical or L/R outputs for enhanced sound system integration.
  • Experience reliable connection with HDCP 2.2 & 1.4 compliance for protected content.
  • This affordable price video switcher supports downscaling for mixed resolution displays.
  • Easy setup ensures you're quickly routing HDMI signals with minimal hassle.

What's in the box:

  • BG-UHD-42M 4x2 HDMI 4K 60Hz 18Gbps Matrix Switcher
  • 12V/1A Locking Power Adapter
  • 2xMounting Ears
  • IR Remote
  • User Manual
  • BZB GEAR 2 Year Limited Warranty
