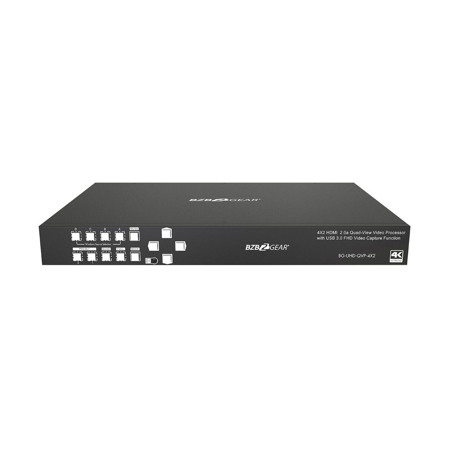

BZB GEAR BG-UHD-QVP-4X2 4K Quad-View/Multiviewer Switcher/Scaler with USB Capture Card

SKU: BZBGUHQVP4X2 MFR: BG-UHD-QVP-4X2
Earn VIP Reward Points

Key Features

  • Create dynamic presentations using the 4K Quad-View Switcher's multiple display modes.
  • Capture and stream high-quality video with the built-in USB capture card feature.
  • Experience seamless video switching between four HDMI sources with low latency.
  • Easily control the multiviewer switcher via IR remote, RS-232, or Ethernet.
  • Achieve reliable video distribution with HDMI 2.0a and HDCP 2.2 compliance.
  • Enhance your video setup with this affordable, rack-mountable switcher/scaler.
See More Product Details
Special Order?Estimated to Ship: 08/15/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$159.99

4 Year

$191.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

BZB GEAR BG-UHD-QVP-4X2 Specifications

Technical

Technical

Jump to...
  • Role of usage

    Multiplexer / video processor

  • Background picture update

    Yes

  • HDMI compliance

    HDMI 2.0a

  • HDCP compliance

    1.4 / 2.2

  • Video bandwidth

    HDMI (600MHz (18Gbps)

  • Output Video Support

    Up to 4K2K@60 (4:4:4 8bits)

  • Video support

    Up to 1080p60

  • Input Video Support

    Up to 4K2K@60 (4:4:4 8bits)

  • Video Format Support

    HDMI 2.0

  • Audio support

    Bypass

  • Embedded video mixer

    Yes

  • Input TMDS signal

    1.2 Volts (peak to peak)

  • Recording Mode

    Software Compression

  • Recording Video Format

    YUY2 (USB3.0), MJPG (USB2.0/3.0)

  • ESD protection

    Human body model - +/- 15kV (air-gap discharge) & +/-8kV (contact discharge)

  • Input

    4x HDMI + 1x RS 232 + 1x RJ 45(Ethernet) + 1x 3.5mm (IR)

  • Output

    2x HDMI + 1x USB + 2x RCA + 1x 3.5mm

  • HDMI connector

    Type A (19-pin female)

  • USB connector

    USB 3.0 Type A (SuperSpeed USB)

  • RS-232 connector

    DE-9 (9-pin D-sub female)

  • RJ-45 connector

    WE/SS 8P8C

  • Software compatibility

    Video Capture Function: OBS Studio (Windows, Linux), AMCap (Windows), Potplayer (Windows) VLC (OS X, Linux), XSplit Broadcast (Windows), Skype (Windows, OS X), Zoom (Windows), Hangout (Windows), TeamViewer (Windows) (Not complete list)

  • OS Support (Video Capture Function)

    Windows 7 /8.1 /10, Mac and Linux OS

Mechanical

Jump to...
  • Housing

    Metal enclosure

  • Power supply

    12V 5A DC

  • Power Consumption

    22 Watts (max)

  • Power Consumption

    22 Watts (max)

  • Operation temperature

    32-104 Degree F (0-40 Degree C)

  • Storage temperature

    -4-140 Degree F (-20-60 Degree C)

  • Relative humidity

    20-90% RH (no condensation)

  • Dimensions (L x W x H)

    15.4 x 9.8 x 1.7" (390 x 248 x 44mm)

  • Weight

    5 lbs (2.2kg)

About BZB GEAR BG-UHD-QVP-4X2

Bring your video presentations and broadcasts to the next level with the BG-UHD-QVP-4X2 4K Quad-View/Multiviewer Switcher/Scaler. This advanced video processing unit is engineered to deliver unparalleled flexibility and professional-grade performance, making it an essential tool for a wide range of applications.

Experience the ultimate in video quality with 4K2K@60 4:4:4 resolution, ensuring that your content is displayed with rich, vivid colors and crystal-clear images. The BG-UHD-QVP-4X2's sophisticated technology allows for simultaneous routing of ultra-high definition video from any of the four UHD HDMI sources to two remote displays, providing a cost-effective solution without compromising on quality.

One of the most innovative features of this high-tech switcher/scaler is its built-in USB 3.0 capture capability. With auto-scaling down functionality, users can effortlessly record and broadcast video up to 1080p, along with 2-channel audio, through real-time software platforms such as Skype or Zoom. This makes the BG-UHD-QVP-4X2 an ideal choice for educational, commercial, and professional live-switching scenarios.

The device offers complete user control with adjustable size and position settings for images, ensuring that your content is displayed exactly as intended. Whether you're in a conference room, studio, meeting hall, or broadcasting to a wider audience, the BG-UHD-QVP-4X2's versatility shines through. It supports Picture-in-Picture (PIP), Picture-by-Picture (PBP), Picture-on-Picture (POP), full-screen, and quad-view display modes, enabling dynamic and engaging layouts for captivating presentations.

Enhance the visual appeal of your presentations with support for titles, borders, and colored backgrounds. The BG-UHD-QVP-4X2 also allows for the addition of a background picture and logo, offering a personalized touch with your branding. With features to resize, position, zoom, pan, and blend output video, you have the creative freedom to manipulate your content for the perfect presentation.

Seamless transitions are key to maintaining audience engagement, and the BG-UHD-QVP-4X2 excels with support for seamless, fade-in-and-out, wipe, and dissolve switching in full-screen mode. These smooth transitions ensure a professional look and feel for any video or presentation.

The BG-UHD-QVP-4X2 is the professional's choice for enhancing video setups in conference rooms, studios, meeting halls, broadcasting environments, houses of worship, and educational institutions. Elevate your video capabilities with this sophisticated, high-tech switcher/scaler, and deliver content that truly stands out.

BZB GEAR BG-UHD-QVP-4X2 Features

  • High Resolution Inputs: Input Resolutions Up To 4k@60Hz 4:4:4 Chroma
  • Seamless Switching: Quick And Easy Source Switching
  • Control Options: IR remote, RS-232, Web GUI, or Front Panel Buttons
  • USB Capture: Convert HDMI Sources And Output Via USB 3.0 At Up To 1080p@60Hz
  • Loop Out: UVC1.0 Monitor Output
  • Audio Output: Extract Audio From Current HDMI Input
  • Resize, position, pan, zoom, and blend
  • Multiple transitions in full-screen mode
  • Customizable graphics
  • PIP, PBP, POP, full-screen, & quad-view
  • 4x HDMI inputs and 2x HDMI outputs
  • Upgradable firmware
  • Supports uncompressed 7.1 ch HDMI audio
  • Functions as video converter/switcher
  • HDCP 1.4/2.2 compliant

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Create dynamic presentations using the 4K Quad-View Switcher's multiple display modes.
  • Capture and stream high-quality video with the built-in USB capture card feature.
  • Experience seamless video switching between four HDMI sources with low latency.
  • Easily control the multiviewer switcher via IR remote, RS-232, or Ethernet.
  • Achieve reliable video distribution with HDMI 2.0a and HDCP 2.2 compliance.
  • Enhance your video setup with this affordable, rack-mountable switcher/scaler.

What's in the box:

  • BZB GEAR BG-UHD-QVP-4X2 4K Quad-View/Multiviewer Switcher/Scaler with USB Capture Card
  • Rack-Mounting Ear Set
  • 12V Power Adapter
  • IR Remote Control
  • IR Receiver Cable
  • USB 3.0 Type-A Cable
  • Installation Software CD
  • User Manual
  • BZB GEAR 3 Year Limited Warranty
