What is the maximum resolution supported by the BG-UM-88ANS 8x8 4K HDMI Matrix?

The BG-UM-88ANS 8x8 4K HDMI Matrix supports resolutions up to 4K@60Hz 4:4:4 HDR.

What types of audio does the BG-UM-88ANS 8x8 4K HDMI Matrix support?

This HDMI Matrix supports 7.1 channel audio including LPCM, Dolby TrueHD, and DTS-HD Master Audio.

What are the control methods available for the BG-UM-88ANS 8x8 4K HDMI Matrix?

The BG-UM-88ANS 8x8 4K HDMI Matrix can be controlled using front panel buttons, an IR remote, CEC, Web UI, or RS-232.

What are the power options for the BG-UM-88ANS 8x8 4K HDMI Matrix?

The BG-UM-88ANS 8x8 4K HDMI Matrix offers flexible power options. You can use the supplied Power Adapter or the POE (Power Over Internet) function.

Who are the typical users of the BG-UM-88ANS 8x8 4K HDMI Matrix?

The BG-UM-88ANS 8x8 4K HDMI Matrix is ideal for professional use in conference rooms, auditoriums, and classrooms. It is a popular choice among small businesses, schools, universities, and hospitals.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

BZB GEAR BG-UM-88ANS Specifications

Technical

Technical

Jump to...
  • HDMI compliance

    HDMI 2.0b

  • HDCP compliance

    HDCP 2.2 and HDCP 1.4

  • Video Bandwidth

    18Gbps

  • Video Resolutions

    Up to4K2K@50/60Hz (YUV 4:4:4),4K2K@30Hz,1080p@120Hz, and 1080p3D@60Hz

  • Color Depth

    8-bit, 10-bit, 12-bit

  • Color Space

    RGB, YCbCr 4:4:4, YCbCr 4:2:2

  • HDMI Audio Formats

    LPCM 2/5.1/7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X

  • Audio Formats

    PCM2.0, 32K/44.1K/48K/88.2K/96K/192K, 16/20/24bit

  • ESD Protection

    Human-body Model: +/-8kV (Air-gap discharge), +/-4kV (Contact discharge)

Connections

Jump to...
  • Inputs

    8x HDMI Type A [19-pin female] 1x LAN [RJ45, Control] 1x RS-232 [9-pin D-sub, Control] 1x IR EXT [3.5mm Stereo Mini-jack]

  • Outputs

    8x HDMI Type A [19-pin female] 8x Coaxial Audio [RCA]

Mechanical

Jump to...
  • Housing

    Metal Enclosure

  • Color

    Black

  • Power Supply

    Input: AC100-240V 50/60Hz, Output: DC12V/3A (US/EU standards, CE/FCC/UL certified)

  • Power Consumption

    26.5W (max)

  • Operating Temperature

    32 Degree F - 104 Degree F (0 Degree C - 40 Degree C)

  • Storage Temperature

    -4 Degree F - 140 Degree F (-20 Degree C - 60 Degree C)

  • Relative Humidity

    20-90% RH (non-condensing)

  • Dimensions (W x D x H)

    19.01 x 9.96 x 1.75" (483 x 253 x44.5mm)

  • Weight

    7.38 lbs (3.35kg)

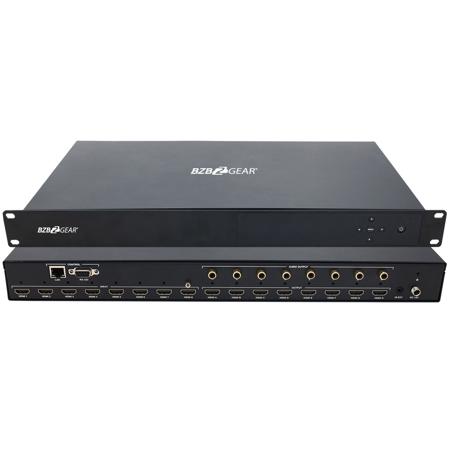

About BZB GEAR BG-UM-88ANS

Are you in search of a sophisticated solution for your audio and video needs The BG-UM-88ANS 8x8 4K HDMI Matrix, with its advanced audio de-embedding capabilities, is the perfect fit. This high-tech device supports resolutions up to 4K@60Hz 4:4:4 HDR, ensuring crystal clear image quality. It also supports 7.1 channel audio, including LPCM, Dolby TrueHD, and DTS-HD Master Audio, promising an immersive audio experience.

This innovative HDMI Matrix is designed to switch and distribute 8 HDMI inputs to 8 HDMI outputs, making it an ideal choice for environments that require seamless switching between multiple sources. Whether you're using a Blu-ray player, gaming console, or a computer, this state-of-the-art device ensures easy transition without the need to physically unplug and reattach cables.

The BG-UM-88ANS is not just about performance, it also offers multiple control methods for your convenience. You can operate it using front panel buttons, an IR remote, CEC, Web UI, or RS-232. It's the perfect solution for those seeking control of a wider variety of cameras.

This HDMI Matrix is also equipped with a LAN Power over Ethernet, IP Control, and streaming interface. It offers flexible power options for easy installation, allowing you to use the supplied Power Adapter or the POE (Power Over Internet) function. Additionally, it features a stereo audio output for connecting mics and embedding local audio.

Ideal for conference rooms, auditoriums, and classrooms, this device is a popular choice among small businesses, schools, universities, and hospitals. Trust in the quality and durability of Bzb Gear, a reputable brand known for producing reliable and high-quality video and audio equipment. Experience the difference with the BG-UM-88ANS 8x8 4K HDMI Matrix.

BZB GEAR BG-UM-88ANS Features

  • HDMI - Compliant with HDMI 2.0b, HDCP 2.2, HDCP 1.4
  • 4K - Supports resolutions up to 4K@60Hz 4:4:4 HDR
  • Multi-Channel Audio - Supports LPCM, Dolby TrueHD, and DTS-HD Master Audio
  • Audio De-Embedding - Each HDMI output features a digital coax audio output
  • EDID - Features smart EDID management for easy integration
  • Multiple Control Options - Front panel, IR, RS-232, CEC, Web UI

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Advanced 8x8 4K HDMI Matrix with audio de-embedding capabilities
  • Supports resolutions up to 4K@60Hz 4:4:4 HDR for crystal clear image quality
  • Accommodates 7.1 channel audio including LPCM, Dolby TrueHD, and DTS-HD Master Audio
  • Multiple control methods including front panel buttons, IR remote, CEC, Web UI, and RS-232
  • LAN Power over Ethernet, IP Control, and streaming interface for seamless connectivity
  • Ideal for professional use in conference rooms, auditoriums, and classrooms

What's in the box:

  • BG-UM-88ANS 8X8 HDMI 18Gbps Matrix with Audio De-embedded
  • 12V/3A Locking Power Adapter
  • IR Remote
  • Wideband IR Receiver Cable
  • User Manual
  • BZB GEAR 2 Year Limited Warranty
