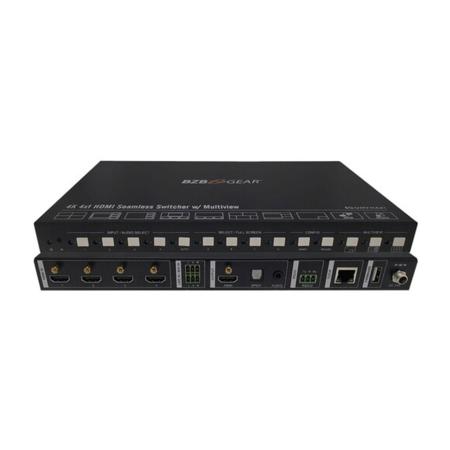

BZB GEAR BG-UMV-HA41 4x1 4K HDMI Seamless Switcher/Scaler with Audio and Multiview

SKU: BZBGUVHA41 MFR: BG-UMV-HA41
Earn VIP Reward Points

Key Features

  • Seamlessly switch between four HDMI sources with this 4K HDMI switcher for crisp visuals.
  • Enjoy multi-view mode on this video switcher, perfect for monitoring multiple camera feeds at once.
  • This HDMI video switcher supports up to 4K@30Hz, ensuring high-resolution video quality.
  • Easily control the video switching via IR remote or RS232, offering flexible control options.
  • The audio extraction feature on this switcher lets you route audio to external sound systems.
  • Low latency switching ensures smooth transitions, ideal for live events and presentations.
See More Product Details
Special Order?Estimated to Ship: 08/17/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$99.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

BZB GEAR BG-UMV-HA41 Specifications

Video
  • Video Input

    4x HDMI IN (1-4)

  • Video Input Connector

    4x Type-A female HDMI

  • HDMI Input Resolution

    Up to 4K@30Hz 4:4:4

  • Video Output

    1x HDMI

  • Video Output Connector

    1x Type-A female HDMI

  • HDMI Output Resolution

    Up to 4K@30Hz RGB

  • HDMI Standard

    HDMI 1.4

  • HDCP Version

    Up to HDCP 2.2

Audio IN

Jump to...
  • Audio In

    1x LINE IN, 1x MIX IN

  • Audio In Connector

    2x 3-pin terminal connectors

  • Frequency Response

    20Hz to 20kHz, +/-3dB

  • Max Input Level

    2.0Vrms +/- 0.5 dB. 2V=16 B headroom above -10dBV (316 mV) nominal consumer line level signal

  • L-R level deviation

    < 0.3dB, 1kHz sine at 0dBFS level (or max level before clipping)

  • Input Impedance

    > 10kohm

  • Audio Format

    PCM 2CH

SPDIF Out

Jump to...
  • SPDIF Out

    1x SPDIF

  • Audio Out Connector

    1x Toslink

  • Max Output level

    +/-0.05dBFS

  • Frequency Response

    20Hz - 20kHz, +/-1dB

  • THD+N

    < 0.05%, 20Hz - 20kHz bandwidth, 1kHz sine at 0 dBFS level (or max level)

  • Signal-to-Noise Ratio

    > 90dB, 20Hz-20 kHz bandwidth

  • Crosstalk isolation

    < -70dB, 10kHz sine at 0dBFS level (or max level before clipping)

  • Noise

    -90dB

  • Audio Format

    PCM 2CH

Audio Out

Jump to...
  • Audio Out

    1x AUDIO

  • Audio Out Connector

    1x 3.5mm Mini jack

  • Frequency Response

    20Hz - 20kHz, +/-1dB

  • Max Output Level

    2.0Vrms +/- 0.5dB. 2V=16dB headroom above -10dBV (316 mV) nominal consumer line level signal

  • THD+N

    < 0.05%, 20Hz - 20kHz bandwidth, 1kHz sine at 0dBFS level (or max level)

  • Signal-to-Noise Ratio

    > 80dB, 20Hz - 20kHz bandwidth

  • Crosstalk Isolation

    < -80dB, 10kHz sine at 0dBFS level (or max level before clipping)

  • L-R Level Deviation

    < 0.05dB, 1kHz sine at 0dBFS level (or max level before clipping)

  • Output Load Capability

    1kohm and higher (supports 10x paralleled 10kohm loads)

  • Noise

    -80dB

Control

Jump to...
  • Control port

    1x RS232, 1x TCP/IP

  • Control Connector

    1x 3-pin terminal connector, 1x RJ45

General

Jump to...
  • Operation Temperature

    5 Degree F to 131 Degree F (-5 Degree C to +55 Degree C)

  • Storage Temperature

    -13 Degree F to 158 Degree F (-25 Degree C to +70 Degree C)

  • Relative Humidity

    10% - 90%

  • External Power Supply

    Input: AC 100-240V, 50/60Hz; Output: 24V DC 1.25A

  • Power Consumption

    13W (Max)

  • Dimensions (W x H x D)

    11.2 x 1 x 6.8" (285 x 27 x 172.5mm)

  • Weight

    2.73 lbs (1.24kg)

About BZB GEAR BG-UMV-HA41

Under the umbrella of advanced and sophisticated electronics, the BG-UMV-HA41 stands out as a high-tech 4K HDMI seamless switcher and scaler. This innovative device is designed to provide a seamless and dynamic viewing experience, making it a perfect choice for professional presentations, conferences, and surveillance monitoring.

The BG-UMV-HA41 is not just a switcher, but a multi-view device that allows you to display up to four video sources on a single HDMI output simultaneously. With the simple push of a button, you can switch between full-screen mode and multi-view windows, providing you with complete control over your viewing experience.

One of the standout features of this device is its 4K resolution capability. It captures every minute detail from each video source, delivering stunning picture quality that is sure to impress. Whether you're an educator, a live speaker, or a security guard, the BG-UMV-HA41 ensures that you don't miss a thing.

In terms of audio, the BG-UMV-HA41 comes equipped with two audio outputs that support audio de-embedding. This feature allows you to extract audio from your sources and customize your sound options to fit your needs. Additionally, the device supports audio embedding via its dual audio input, enabling you to use an external audio source as a microphone or audio player for background music.

The BG-UMV-HA41 is designed with connectivity and control in mind. It features auto video scaling for each of the four HDMI inputs to ensure compatibility with 4K displays. You can control the device using buttons on the front panel, the included IR remote, RS232, or through the web interface. The web interface also allows you to customize the layout and size of each display window and choose from 16 preset layouts.

With the ability to easily rack mount the BG-UMV-HA41, this versatile device is suitable for use in any environment. It offers a variety of input and output options, including HDMI, audio, Ethernet, and RS-232, making it compatible with a wide range of devices and systems.

In conclusion, the BG-UMV-HA41 4x1 4K HDMI Seamless Switcher/Scaler with Audio and Multiview is a professional, high-tech, and innovative solution for all your video switching and scaling needs.

BZB GEAR BG-UMV-HA41 Features

  • High Resolution Inputs: Input Up To 4K@30Hz 4:4:4 Chroma
  • Control Options: IR remote, RS-232, Web GUI, or Front Panel Buttons
  • Seamless Switching: Quick And Easy Source Switching
  • Audio Embedding: 3-Pin Line-In And Mix Inputs
  • Audio De-embedding: 3.5mm Analog And TOSLINK Digital Outputs
  • Multi-View: Simultaneously Display Multiple Inputs On A Single Monitor
  • Based on FPGA technology
  • SNR > 90dB, 20Hz-20 kHz bandwidth
  • Resize the windows with 3 different options
  • Upgradeable firmware
  • Auto-scaling for each source input
  • Single window auto-switching
  • Rack mountable, all metal construction
  • Cascadable for up to 16 screens on 1 display
  • 16 pre-defined layouts

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Seamlessly switch between four HDMI sources with this 4K HDMI switcher for crisp visuals.
  • Enjoy multi-view mode on this video switcher, perfect for monitoring multiple camera feeds at once.
  • This HDMI video switcher supports up to 4K@30Hz, ensuring high-resolution video quality.
  • Easily control the video switching via IR remote or RS232, offering flexible control options.
  • The audio extraction feature on this switcher lets you route audio to external sound systems.
  • Low latency switching ensures smooth transitions, ideal for live events and presentations.

What's in the box:

  • BZB GEAR BG-UMV-HA41 4x1 4K HDMI Seamless Switcher/Scaler with Audio and Multiview
  • IR Remote
  • 4x Plastic Cushions
  • 2x Surface Mounting Ears
  • 4x Mounting Screws
  • 2x 3-Pin Terminal Block
  • RS232 Cable (3-Pin to DB9)
  • Power Adapter (24V DC 1.25A)
  • User Manual
  • BZB GEAR 3 Year Limited Warranty
