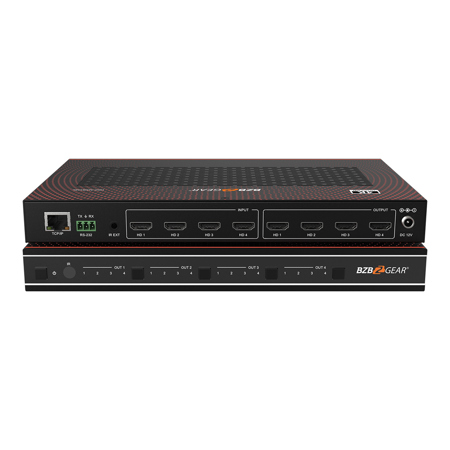

BZB GEAR BG-MVS4X4-4KL 4x4 4K 60Hz HDMI Video Wall Processor and Seamless Matrix Switcher

SKU: BZBGVS4X44KL MFR: BG-MVS4X4-4KL
Earn VIP Reward Points

Key Features

  • Experience seamless 4K video switching with this HDMI 2.0b compliant matrix.
  • Create stunning video walls effortlessly with the integrated video wall processor.
  • Enjoy low latency and reliable connections for professional AV setups and live events.
  • This video switcher supports wide compatibility, including VGA to 4K resolutions.
  • Control your video distribution via RS-232, TCP/IP, or IR for easy integration.
  • Get good value with our 3-year warranty, ensuring your video investment is protected.
See More Product Details
Special Order?Estimated to Ship: 08/22/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

4 Year

$139.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

BZB GEAR BG-MVS4X4-4KL Specifications

Technical

Technical

Jump to...
  • HDMI Compliance

    HDMI 2.0b

  • HDCP Compliance

    HDCP 2.2/1.4

  • Video Bandwidth

    594MHz/18Gbps

  • Video Resolutions

    Input:
    VGA-WUXGA (up to 1920x1200 at 60Hz), 480i-4K (3840x2160 at 60Hz 4:4:4, 4096x2160 at 60Hz 4:4:4)

    Output:
    4096x2160p60, 4096x2160p50, 3840x2160p60, 3840x2160p50, 3840x2160p30, 1920x1080p60, 1920x1080p50, 1920x1080i60, 1920x1080i50, 1920x1200p60rb, 1360x768p60, 1280x800p60, 1280x720p60, 1280x720p50, 1024x768p60, auto

  • Color Space

    RGB, YCbCr 4:4:4/4:2:2, YUV 4:2:0

  • Color Depth

    8/10/12-bit

  • IR Level

    12Vp-p

  • IR Frequency

    38KHz

  • HDMI Audio Formats

    LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio

Connection

Jump to...
  • Inputs

    4x HDMI Type A [19-pin female]

  • Outputs

    4x HDMI Type A [19-pin female]

  • Control

    1x RS-232 [3pin-3.81mm phoenix connector]
    1x TCP/IP [RJ45]
    1x IR EXT [3.5mm Stereo Mini-jack]

General

Jump to...
  • Power Supply

    Input: AC 100 - 240V 50/60Hz
    Output: DC 12V/2.5A (US/EU standard, CE/FCC/UL certified)

  • Power Consumption

    19.56W (Max)

  • Operating Temperature

    32 Degree F - 104 Degree F (0 Degree C - 40 Degree C)

  • Storage Temperature

    -4 Degree F - 140 Degree F (-20 Degree C - 60 Degree C)

  • Relative Humidity

    20-90% RH (non-condensing)

Physical

Jump to...
  • Color

    Black

  • Housing

    Metal Enclosure

  • Dimensions (W x D x H)

    11 x 6.5 x 1.2" (270 x 166 x 30mm)

  • Weight

    2.6 lbs (1.16kg)

  • UPC Code

    850050134473

About BZB GEAR BG-MVS4X4-4KL

Because of its multifaceted capabilities, the BG-MVS4X4-4KL 4K60 4:4:4 HDMI matrix stands out as a high-speed matrix switcher and video wall processor. This advanced piece of electronics equipment is designed to cater to a wide range of applications, offering unparalleled versatility. It can be expertly configured to function in two distinct output modes, either as a 4x4 seamless matrix switcher or as a video wall solution in 2x2, 4x1, or 1x4 configurations, among other potential setups.

What sets this HDMI matrix apart is its integrated web browser interface module. This feature allows for effortless control and configuration, whether the device is used as a standalone unit or in combination with a third-party control system. The BG-MVS4X4-4KL 4K60 4:4:4 HDMI matrix offers a variety of control options to suit your needs, including front-panel push buttons, an IR remote control, an RS-232 interface, and TCP/IP connectivity. This product is a testament to the seamless integration of technology and convenience, making it an ideal choice for those seeking a high-quality HDMI matrix switcher and video wall processor.

BZB GEAR BG-MVS4X4-4KL Features

  • Compliant - HDMI 2.0b, HDCP 2.2 and HDCP 1.4
  • 2 Operational Modes - 4x4 Matrix (seamless switch), Video wall (2x2, 4x1 or 1x4 etc configuration)
  • Audio Formats - Support LPCM, DD, DD+, DTS, Dolby TrueHD, DTS HD-master pass-through
  • Advanced EDID management - Seamless communication between sources and displays
  • Web Interface Module - For control and configuration of Matrix
  • Control Options - Control via front panel, IR, RS-232, and TCP/IP
  • Seamless video switching
  • Video inputs support all industry standard video resolutions including VGA-WUXGA (up to 1920 x 1200 at 60Hz) and 480i-4K (3840 x 2160 at 60Hz 4:4:4, 4096 x 2160 at 60Hz 4:4:4)
  • HDMI outputs support upscale or downscale to any resolution, up to 4096 x 2160 at 60Hz 4:4:4
  • 3rd Party drivers are available for all major home control brands

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience seamless 4K video switching with this HDMI 2.0b compliant matrix.
  • Create stunning video walls effortlessly with the integrated video wall processor.
  • Enjoy low latency and reliable connections for professional AV setups and live events.
  • This video switcher supports wide compatibility, including VGA to 4K resolutions.
  • Control your video distribution via RS-232, TCP/IP, or IR for easy integration.
  • Get good value with our 3-year warranty, ensuring your video investment is protected.

What's in the box:

  • BZB GEAR BG-MVS4X4-4KL 4x4 4K 60Hz HDMI Video Wall Processor and Seamless Matrix Switcher
  • Matrix IR Remote
  • 3-Pin-3.81mm Phoenix Connector (Male)
  • 20-60KHz IR Wideband Receiver Cable (4.9')
  • 2x Mounting Ears
  • 4x Machine Screws (Km3x4)
  • 12V/2.5A Locking Power Adapter
  • User Manual
  • BZB GEAR 3 Year Limited Warranty
