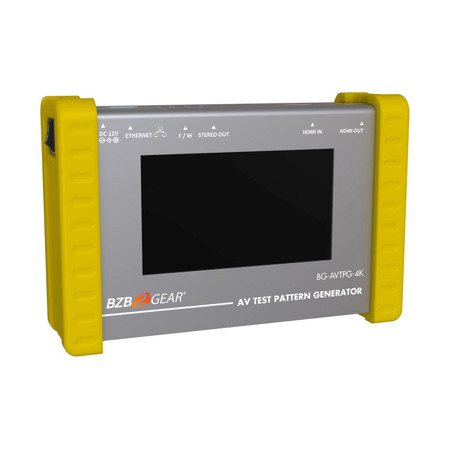

About BZB GEAR BG-AVTPG-4K
The BG-AVTPG-4K is a high-tech HDMI 2.0 test pattern generator and analyzer, specifically designed for advanced A/V integrators and professional technicians. This innovative device is a critical addition to any professional's toolkit, offering a comprehensive range of features and functions. It is capable of transmitting and receiving HDMI signals up to a resolution of 4096 x 2160 4:4:4, simplifying the process of testing and validating the functionality of AV cabling and equipment.
Constructed to withstand the demands of field use, the BG-AVTPG-4K is housed in a robust metal chassis, fortified with shock-resistant rubberized edges. This sophisticated device can generate an extensive array of test patterns at resolutions reaching up to 4096x2160@60Hz 4:4:4 8 bit and 4K2K@60Hz 4:2:0 16 bit (HDR).
Compact and portable, this device can be fully charged in just two hours, offering an operational time of up to four hours. It features an intuitive touchscreen interface and is equipped with a USB 2.0 port for mouse connectivity, enhancing control and ease of use.
The BG-AVTPG-4K is loaded with practical functions, including a cable tester, multiple static and moving test patterns, a multi-channel audio tone generator, and an EDID reader. These features facilitate efficient troubleshooting of HDMI connection issues. With its Ethernet connection, this device can be positioned remotely and controlled via IP commands, adding to its versatility.
The HDMI 2.0 input and output are HDCP 2.2 compliant, forming a test loop for verifying HDMI cable functionality. It supports eight-channel LPCM with a selectable sampling rate of up to 192 kHz and a maximum bandwidth of 18 Gbps. The 3.5mm output and USB 2.0 port provide connections for testing external audio systems and mouse connectivity, respectively. The RJ-45 port enables remote operation with IP commands.
The BG-AVTPG-4K is an ideal solution for home theater installation, security system maintenance/installation, commercial A/V installation, and is a must-have for audio/video technicians, professional A/V integrators, and security professionals.
BZB GEAR BG-AVTPG-4K Features
- 4K Support: 4K2K@60 4:4:4 8bit, 4K2K@60 4:2:0 16bit HDR pattern generator
- USB 2.0: Supports mouse control
- Audio Support: 8ch LPCM with selectable sampling rate up to 192kHz
- 3.5 mm Output: Allows for testing of analog audio equipment
- Durable Chassis: Designed to hold up to the demands of field work
- 18Gbps: High-bandwidth HDMI
- 4K2K@60 4:4:4 8bit, 4K2K@60 4:2:0 16bit HDR pattern generator
- 4.3" touch panel
- Supports mouse control
- Supports user control device through Ethernet
- Firmware update through USB Flash Drive
- Supports user defined pattern up to 2GB
- Embedded LINUX KERNAL system with limitless extension
- Scrambler supported for videos over 340MHz output wise
- Loop test capability to provide statistics analysis for connection stability
- Supports HDMI loop through function
- HDCP test allow verify HDCP of HDMI source and transmit HDCP encrypted video
- Qualified physical layer performance to ensure the best compatibility
- Battery powered for portability, it can extend operation time with full load up to 4 hours
- Rechargeable battery design with short charging time about 2 hours
Warranty Information
This product has a limited warranty of 36 months.
