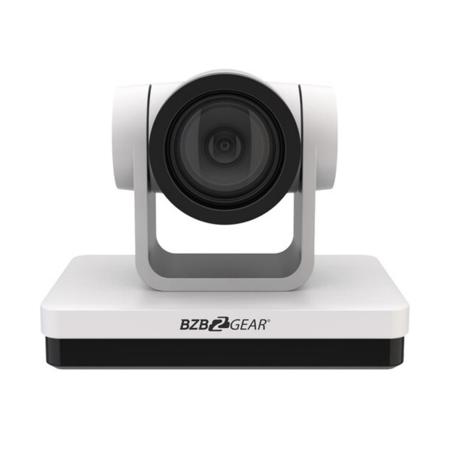

BZB GEAR BG-UPTZ Universal Full HD HDMI/SDI/USB 3.0 Live Streaming 20x PTZ Camera, White

SKU: BZBGZ20XHSUW MFR: BG-UPTZ-20XHSU-W
Earn VIP Reward Points

Key Features

  • Capture crystal-clear video with the 20x optical zoom PTZ camera for detailed close-ups.
  • Stream live events via HDMI, SDI, or USB 3.0, perfect for broadcasting and content creation.
  • Experience smooth pan and tilt functions, ensuring you never miss any action in your video.
  • Enjoy Full HD 1080p resolution at 60fps, delivering vibrant, high-quality video output always.
  • Use PoE (Power over Ethernet) for simplified setup, reducing cable clutter in your workspace.
  • Control remotely with RS232/485, offering seamless integration into existing control systems.
See More Product Details
Special Order?Estimated to Ship: 08/20/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

4 Year

$139.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

BZB GEAR BG-UPTZ Specifications

  • Color

    White

  • Lens

    20x Optical zoom

  • Horizontal View Angle

    54.7 Degree (W)-3.3 Degree (T)

  • Image Sensor

    1/2.8" Progressive CMOS

  • Effective Pixels

    2.07 Megapixels (16:9)

  • Resolution

    1080p@60/50, 1080i@60/50, 1080p@30/25, 720p@60/50

  • Interface

    USB 3.0, HDMI, 3G-SDI, LAN(POE), RS232/485, LINE IN

  • Pan Rotation

    340 Degree (max. speed: 80 Degree/s)

  • Tilt Rotation

    -30 Degree to +90 Degree (max. speed: 60 Degree/s)

  • Focus System

    Auto/Manual

  • S/N Ratio

    >=50db

  • Preset Position

    9 preset positions by IR remote controller, 255 preset positions by Keyboard or PC

  • Minimum Illumination

    0.5 Lux (F1.8, AGC ON)

  • Exposure Control

    Auto/Manual/Priority AE/Exposure Compensation/Bright

  • Shutter Speed

    1/1-1/10,000s

  • Gain

    Auto/Manual

  • White Balance

    Auto/Manual/ATW/One-click/Indoor/Outdoor

  • Image Effect

    Full color/black and white/Electronic flip

  • Video Output HD

    HDMI, 3G-SDI, IP, USB 3.0

  • Control Protocol

    RTSP, RTMP, ONVIF, GB/T28181

  • Power

    12V DC

  • Power Consumption

    Max. 30W (DC 12V)

  • Operating Temperature

    32 Degree F - 104 Degree F (0 Degree C-+40 Degree C)

  • Storage Temperature

    -4 Degree F - 140 Degree F (-20 Degree C-+60 Degree C)

  • Dimensions (L x W x H)

    7 x 4.5 x 5.9" (178 x 115.5 x 150.9mm)

  • Weight

    3 lbs (1.38kg)

About BZB GEAR BG-UPTZ

The best-selling BG-UPTZ camera has been BZBGEAR's most successful camera to date. With its crisp 1080p imaging, simultaneous USB 3.0, HDMI, 3G-SDI, and IP streaming video outputs all in a handsome yet subdued design, it is easy to see why this is the camera of choice for hospitals, universities, houses of worship, and performing arts centers worldwide.

Connectivity
The BG-UPTZ utilizes a 1/2.8" Sony CMOS sensor to capture images in resolutions as high as 1080p@60Hz. With 20X, it's an able performer in any size venue. The simultaneous HDMI, 3G-SDI, and USB 3.0 outputs ensure the BG-UPTZ can be integrated into any workflow.

Supporting ONVIF, RTSP, and RTMP video protocols, the BG-UPTZ is compatible with most video production software and is able to stream directly to streaming platforms like YouTube, Twitch, and Facebook. A 3.5mm input jack allows external microphones and audio systems to be embedded into the video stream.

Control
The BG-UPTZ features an onboard dial that allows users to lock the output resolution, eliminating potential resolution discrepancies before they happen. The camera can be controlled via IR remote, IP control (IP VISCA, ONVIF), and the browser interface. The RS232 and RS485 serial connections support VISCA, PELCO-D, and PELCO-P protocols. Up to 255 camera preset positions can be stored, ten of which are available via the IR remote control.

This camera supports SRT, enabling high-quality, low-latency video to be sent reliably over the internet.

Stream business meetings
In a clear and precise manner utilizing a USB 3.0 conference camera streaming ultra-high definition video and audio

Live streaming IP camera
Perfect for Podcasts via Social Media platforms like YouTube and Facebook

Ideal fit for:
• Studio Recordings
• Remote Education and Healthcare
• House of Worship
• Sport Events
• Concerts
• Event Businesses
• Teachers
• Doctors
• Pastors

BZB GEAR BG-UPTZ Features

  • Zoom: 20x optical zoom, +10x digital
  • Control: IP, IR, and cascadable RS232/485 (VICSA/Pelco) + 255 preset positions
  • Multiple Video Outputs: HDMI, 3G-SDI, USB 3.0, and IP-streaming working simultaneously
  • Latest Streaming Tech: Supports H.264/H.265 video compression and RTMP(S)
  • Superb Auto Focus: Auto focusing algorithms resulting in quick, accurate, and stable focus
  • Power over Ethernet: Delivers power directly over an ethernet cable
  • 1/2.8" 2.07MP low-noise CMOS
  • 54.7 Degree FOV at 20x
  • 3.5mm stereo audio input
  • Quiet, high-quality step motor
  • Resolutions up to 1080p@60Hz
  • Shutter speed 1/1-1/10,000s
  • Pristine image quality
  • Network protocols ONVIF, RTSP, RTMP / RTMP(S)
  • Available in white, silver, or black color

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Capture crystal-clear video with the 20x optical zoom PTZ camera for detailed close-ups.
  • Stream live events via HDMI, SDI, or USB 3.0, perfect for broadcasting and content creation.
  • Experience smooth pan and tilt functions, ensuring you never miss any action in your video.
  • Enjoy Full HD 1080p resolution at 60fps, delivering vibrant, high-quality video output always.
  • Use PoE (Power over Ethernet) for simplified setup, reducing cable clutter in your workspace.
  • Control remotely with RS232/485, offering seamless integration into existing control systems.

What's in the box:

  • BZB GEAR BG-UPTZ Universal Full HD HDMI/SDI/USB 3.0 Live Streaming 20x PTZ Camera (White)
  • 12V/1.5A Power Supply
  • RS232 Control Cable
  • IR Remote Control
  • User Manual
  • BZB GEAR 3 Year Limited Warranty (Extended 2 Year Warranty with Online Registration)
