BZB GEAR BG-UPTZ-ND Specifications

  • Color

    Black

  • Lens

    20x Optical zoom

  • Horizontal View Angle

    54.7 Degree (W)-3.3 Degree (T)

  • Image Sensor

    1/2.8" Progressive CMOS

  • Effective Pixels

    2.07 Megapixels (16:9)

  • Resolution

    1080p@60/50, 1080i@60/50, 1080p@30/25, 720p@60/50

  • Interface

    USB 3.0, HDMI, 3G-SDI, NDI/LAN(POE), RS232/485, LINE IN

  • Pan Rotation

    340 Degree (max. speed: 80 Degree/s)

  • Tilt Rotation

    -30 Degree to +90 Degree (max. speed: 60 Degree/s)

  • Focus System

    Auto/Manual

  • S/N Ratio

    >=50db

  • Preset Position

    9 preset positions by IR remote controller, 255 preset positions by Keyboard or PC

  • Minimum Illumination

    0.5 Lux (F1.8, AGC ON)

  • Exposure Control

    Auto/Manual/Priority AE/Exposure Compensation/Bright

  • Shutter Speed

    1/1-1/10,000s

  • Gain

    Auto/Manual

  • White Balance

    Auto/Manual/ATW/One-click/Indoor/Outdoor

  • Image Effect

    Full color/black and white/Electronic flip

  • Video Output HD

    HDMI, 3G-SDI, IP, USB 3.0

  • Control Protocol

    RTSP, RTMP, ONVIF, GB/T28181

  • Power

    12V DC

  • Power Consumption

    Max. 30W (DC 12V)

  • Operating Temperature

    32 Degree F - 104 Degree F (0 Degree C-+40 Degree C)

  • Storage Temperature

    -4 Degree F - 140 Degree F (-20 Degree C-+60 Degree C)

  • Dimensions (L x W x H)

    7 x 4.5 x 5.9" (178 x 115.5 x 151mm)

  • Weight

    3 lbs (1.38kg)

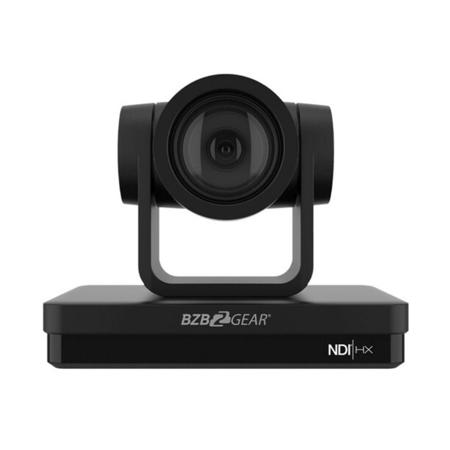

About BZB GEAR BG-UPTZ-ND

It's no surprise that the BG-UPTZ-ND Universal Full HD NDI/HDMI/SDI/USB 3.0 Live Streaming 20x PTZ Camera is a top choice among professionals seeking advanced, high-tech, and sophisticated live streaming solutions. This state-of-the-art camera, manufactured by BZB Gear, is renowned for its exceptional picture quality, delivering Full HD resolution (1920x1080) at up to 60Hz.

The camera's 20x optical zoom lens, backed by cutting-edge auto-focus algorithms, ensures crisp and detailed image captures at varying distances. Its innovative design incorporates a variety of video outputs, including HDMI, 3G-SDI, USB 3.0, and NDI|HX, making it a versatile tool for any production or live streaming platform.

Ease of use is a standout feature of the BG-UPTZ-ND. It employs the latest NDI technology and Power over Ethernet (PoE) functionality, eliminating the need for extra video or power cables. The camera's built-in stream encoder supports H.264/H.265 video compression and the RTMP(S) network protocol, allowing for seamless streaming directly to platforms like Facebook and YouTube.

The BG-UPTZ-ND is equipped with a precise motor controller, ensuring smooth and quiet movement. Its use of the Network Device Interface (NDI) and NDI|HX2 technologies enables high-performance AV over IP, ultra-low latency video, and efficient bandwidth compression. This makes it possible to connect more devices to a local area network (LAN) without latency issues.

The camera's 1/2.8" high-quality HD progressive CMOS sensor contributes to its superior image quality. It offers a high-quality 20x optical zoom and an additional 10x digital zoom, with a field of view of up to 56 degrees at 20x.

The BG-UPTZ-ND supports multiple control options, including WebGUI, NDI, IP VISCA, ONVIF, RS422/485, and cascading RS232 (VISCA/Pelco-P/D). It can store up to 255 preset positions and is compatible with IR remote control.

With its PoE and NDI technology, the camera simplifies installation by reducing the need for additional cables. It also allows for the embedding of stereo audio via a 3.5mm jack. The camera's flexible mounting options make it suitable for walls, ceilings, and tripods, making it an ideal choice for a wide range of applications, from studio recordings and remote education to sporting events and concerts.

The BG-UPTZ-ND also supports SRT, ensuring high-quality, low-latency video transmission over the internet. Whether you're a teacher, doctor, pastor, or event planner, this camera's superior control and flexibility make it the perfect tool for your live streaming needs.

BZB GEAR BG-UPTZ-ND Features

  • Zoom: 20x Optical zoom, + 10x Digital
  • Control: IP, IR, and cascadable RS232/485 (VICSA/Pelco) + 255 preset positions
  • Multiple Video Outputs: HDMI, 3G-SDI, USB 3.0, and IP-Streaming working simultaneously
  • Latest Streaming Tech: Supports H.264/H.265 video compression and RTMP(S) network protocol for YouTube/Facebook live streaming
  • Superb Auto Focus: Latest auto focusing algorithms resulting in quick, accurate, and stable focus
  • NDI: Compatible with NDI 4.0 from NewTek
  • Works with all NDI tools from NewTek
  • Minimum Illumination 0.5 Lux
  • 1/2.8" low-noise CMOS sensor
  • Whisper-quiet operation
  • Resolutions up to 1080p@60Hz
  • Multiple mounting options
  • PoE LAN port allows for single cable installations
  • Live-stream directly from the camera
  • 54.7 Degree Field of view at 20x

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Capture stunning visuals with the 20x optical zoom PTZ camera for any live event.
  • Enjoy versatile connectivity with HDMI, SDI, USB 3.0, & NDI for seamless integration.
  • Experience superior video quality with Full HD 1080p resolution at up to 60 frames/second.
  • Easily control pan, tilt, and zoom remotely, perfect for broadcasting and conferences.
  • Achieve clear footage in low light with excellent low-light performance and image clarity.
  • Stream like a pro using multiple protocols such as RTSP, RTMP, and NDI for wide compatibility.

What's in the box:

  • BZB GEAR BG-UPTZ-ND Universal Full HD NDI/HDMI/SDI/USB 3.0 Live Streaming 20x PTZ Camera (Black)
  • 12V/1.5A Power Supply
  • RS232 Control Cable
  • IR Remote Control
  • User Manual
  • BZB GEAR 3 Year Limited Warranty
