BZB GEAR BG-UHD-MVS21A 2x1 4K 18Gbps HDMI Multiviewer Seamless Video Switcher, Black
SKU: BZBHDMVS21A MFR: BG-UHD-MVS21A
Earn VIP Reward PointsKey Features
- Seamlessly switch between two HDMI sources with this 4K video switcher for crisp visuals.
- Enjoy wide compatibility with HDMI 2.0b and HDCP 2.2 on this reliable video component.
- Experience low latency video distribution up to 4K2K@60 with this HDMI multiviewer.
- Easily control the video switcher via IR remote or RS-232 for convenient operation.
- This video switcher supports multiple audio formats including PCM, Dolby, and DTS.
- Create dynamic presentations using this HDMI switcher's multiview function and audio output.
Special Order?Estimated to Ship: 09/10/2025
Free Shipping
See Options
1
Protect your gear with Adorama Protect.* Learn more
1 Year
$34.99
2 Year
$59.99
3 Year
$79.99
Available to U.S. customers only.
Need help? Ask our experts.
Overview
Compare
Specs
Protection
Q&A
About BZB GEAR BG-UHD-MVS21A

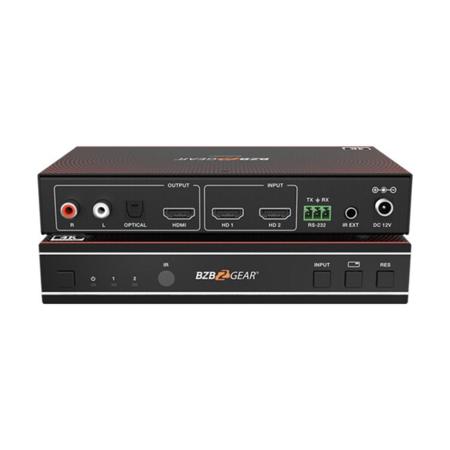

The 4K@60 2x1 Multiviewer Seamless UHD Video Switcher is designed to allow you to display multiple video sources at 4K resolution on a single screen. It combines two video signals and allows you to manage each input, create combinations of the two inputs, and adjust their positions on the display.
Besides instant switching between 2 sources the BG-UHD-MVS21A has the ability to display the two video inputs in a Picture-in-Picture (PIP) or Picture-by-Picture (PBP) mode. In PIP mode, one of the video inputs is displayed as a small inset window on top of the other input, which takes up the majority of the screen. In PBP mode, the two video inputs are displayed side-by-side, taking up equal or partial amounts of screen space.
Connectivity and Quality
This device supports a wide range of input resolutions up to 4096x2160p 60Hz. It also could de-embed audio from any of the sources in different formats for your external audio system. Supported audio formats are LPCM, AC3, DD+, DTS, DTS- HD. User can control the volume of audio in LPCM format.
Control
Multiple control options are available for the BG-UHD-MVS21A. It can be controlled through the front panel buttons, an IR remote, or RS-232 commands. EDID control is available through the RS-232 interface.
BZB GEAR BG-UHD-MVS21A Features
- HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
- Support 18Gbps video bandwidth
- Input and output resolutions support up to 4K2K@60 4:4:4
- Support LPCM, AC3, DD+, DTS, DTS-HD, up to 7.1 audio channel
- Seamless switching between input channels and combined multiple images on single UHD monitor
- Up to 4 display modes: SINGLE, PIP, PBP (1), PBP (2)
- Audio de-embedding via analog and optical fiber audio ports
- Support volume control and independent audio selection
- Advanced EDID management
- Control via front panel buttons, IR remote, RS-232 commands
- Compact design for easy and flexible installation
Warranty Information
This product has a limited warranty of 36 months.
