BZB GEAR BG-PSC8X2HDB 8-Input Presentation Switcher with HDBaseT

The BG-PSC8X2HDB is an 18Gbps 8x2 seamless UHD presentation switcher. It supports multi-format signal processing, instantly switching between HDMI, VGA, and DisplayPort sources. It features automatic input scaling at resolutions up to 4K@60Hz 4:4:4. It can also extract or embed audio via the 8 stereo inputs and 1 balanced stereo output. It can power 2 speakers via the 20W stereo speaker outputs and volume can be easily adjusted via the knob on the front panel.

Video output is available via simultaneous HDMI and HDBaseT ports. The integrated microphone input supports 48V phantom power. EDID management helps eliminate video compatibility issues, and third party control is supported with Bi-Directional IR and RS232 connections. The HDBaseT output is perfect for extending signal to a second display up to 70 meters away.

4K/60 4:4:4 Support
Ultra HD refers to a TV resolution of 3840 x 2160 pixels.

Integrated Microphone Mixer
Features adjustable trim and 48V Phantom Power.

HDBaseT Output
Extend signal up to 70 meters at 1080P, or 45 meters at 4K.

Integrated Audio Amplifier
Power 2 speakers via 20W stereo outputs.

EDID Management
Eliminates video compatibility issues.

Multiple Control Options
Bi-Directional IR, RS232, and IP Control.

Ideal fit for:
• Conference Rooms
• Convention Centers
• Auditoriums and Lecture Halls

Who is buying it
• Offices
• Event Staff
• Universities and Community Centers

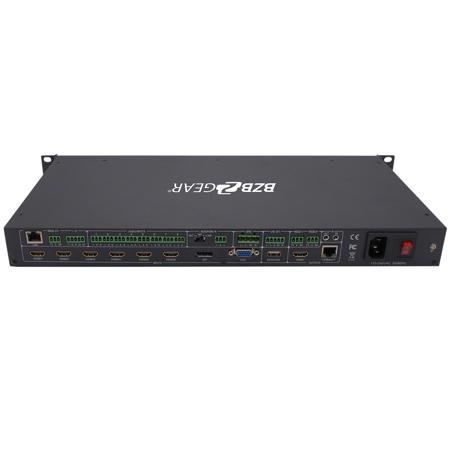

Interface

HDMI
Crystal clear image with resolutions up to 4K@60Hz.

USB
Upgrade the software in your controller by directly plugging into this connection from your PC.

LAN
Power over Ethernet, IP Control, and streaming interface.

Power
Flexible power options for easy installation. Use supplied Power Adapter or POE (Power Over Internet) function.

RS-232 Control
If you are looking for simple solution to control of a wider variety of cameras, the RS-232 is for you.
