Questions & Answers

FAQ

What are the video outputs supported by the BG-UPTZ-ND12X camera?

The BG-UPTZ-ND12X camera supports HDMI, 3G-SDI, USB 3.0, and IP-Streaming. These outputs can work simultaneously, providing flexibility for your setup.

Does the BG-UPTZ-ND12X camera support live streaming?

Yes, the BG-UPTZ-ND12X camera is equipped with advanced live streaming technology. It supports H.264/H.265 video compression and RTMP(S) network protocol, making it suitable for YouTube or Facebook live streaming.

What is the zoom capability of the BG-UPTZ-ND12X camera?

The BG-UPTZ-ND12X camera features a 12x optical zoom, allowing you to capture detailed images of distant objects without losing image quality.

Does the BG-UPTZ-ND12X camera have an auto-focus feature?

Yes, the BG-UPTZ-ND12X camera has a superb auto-focus feature that uses the latest algorithms for quick, accurate, and stable focus.

Can I connect a microphone to the BG-UPTZ-ND12X camera?

Yes, the BG-UPTZ-ND12X camera has a stereo audio input which allows for connecting mics and embedding local audio into all four video output interfaces.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

BZB GEAR BG-UPTZ-ND Specifications

  • Color

    Black

  • Lens

    12x Optical zoom

  • Horizontal View Angle

    72.5 Degree (W) 6.3 Degree (T)

  • Image Sensor

    1/2.8" Progressive CMOS

  • Effective Pixels

    2.07 Megapixels (16:9)

  • Resolution

    1080p60/50, 1080i60/50, 1080p30/25,720p60/50

  • Interface

    USB 3.0, HDMI, 3G-SDI, LAN(POE), RS232/485, LINE IN

  • Pan Rotation

    340 Degree (max. speed: 80 Degree /s)

  • Tilt Rotation

    -30 Degree to +90 Degree (max. speed: 60 Degree /s)

  • Focus System

    Auto/Manual

  • S/N Ratio

    >=50db

  • Preset Position

    9 preset positions by IR remote controller, 255 preset positions by Keyboard or PC

  • Minimum Illumination

    0.5 Lux (F1.8, AGC ON)

  • Exposure Control

    Auto/Manual/Priority AE/Exposure Compensation/Bright

  • Shutter Speed

    1/1-1/10,000s

  • Gain

    Auto/Manual

  • White Balance

    Auto/Manual/ATW/One-click/Indoor/Outdoor

  • Image Effect

    Full color/black and white/Electronic flip

  • Video Output HD

    HDMI, 3G-SDI, IP, USB 3.0

  • Control Protocol

    RTSP, RTMP, ONVIF, GB/T28181

  • Power

    12V DC

  • Power Consumption

    Max. 30W(DC 12V)

  • Operating Temperature

    32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)

  • Storage Temperature

    -4 Degree F to -76 Degree F (-20 Degree C to 60 Degree C)

  • Camera Dimensions (L x W x H)

    7 x 4.54 x 5.94" (178 x 115.5 x 150.9mm)

  • Weight

    3.04 lbs (1.38kg)

About BZB GEAR BG-UPTZ-ND

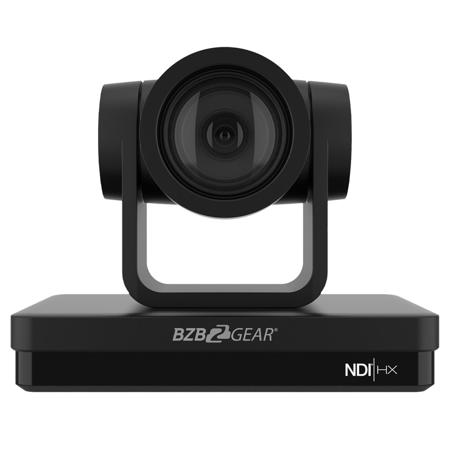

Are you in search of a high-tech, innovative solution for your live streaming and video conferencing needs Look no further than the advanced BG-UPTZ-ND12X NDI/HDMI/SDI/USB Live Streaming 12x PTZ Camera in sleek black. This state-of-the-art camera is the epitome of versatility, designed to cater to a wide range of applications, from broadcasting live events to facilitating remote education.

This sophisticated camera boasts high-grade lenses that deliver pristine image quality, ensuring every detail is captured with precision. The BG-UPTZ-ND12X is crafted with exceptional mechanical expertise and top-tier components, resulting in a responsive and whisper-quiet operation that won't disrupt your streaming or conferencing sessions.

Equipped with the latest compression algorithms and a diverse selection of video outputs, this camera ensures seamless compatibility with almost any setup. It supports simultaneous operation of HDMI, 3G-SDI, USB 3.0, and IP-Streaming, offering you the flexibility to choose the best output for your needs.

The BG-UPTZ-ND12X camera is a powerhouse when it comes to live streaming technology. It supports H.264/H.265 video compression and RTMP(S) network protocol, making it a perfect choice for YouTube or Facebook live streaming. The camera's superb auto-focus feature utilizes the latest algorithms to deliver quick, accurate, and stable focus, ensuring your streams are always clear and sharp.

This camera is not just about video; it also takes care of your audio needs. The stereo audio input allows for connecting mics and embedding local audio into all four video output interfaces. Control is at your fingertips with support for IR control, IP Control, RS422/485, and cascading RS232 interfaces.

Whether you're a remote educator, event business owner, or a healthcare professional, the BG-UPTZ-ND12X NDI/HDMI/SDI/USB Live Streaming 12x PTZ Camera is the ultimate solution for your live streaming and video conferencing needs.

BZB GEAR BG-UPTZ-ND Features

  • Compatible with all NDI tools from NewTek: NDI Studio Monitor, NDI Scan Converter, NDI Virtual Input and other
  • Crystal Clear Image -1/2.8in 2.07 megapixel Low-Noise CMOS sensor insures High SNR (Signal to Noise Rate). Resolution up to 1080p@60fps
  • Wide FOV: Field of view up to 72.5 Degree - enough for the whole room (72.5 Degree for 12X, 56 Degree for 20X and 65 Degree for 30X lenses)
  • Add a Mic - supports stereo audio input and embedding
  • Extremely quiet - using high quality step driving motor and precise motor drive controller ensures whisper quiet and smooth rotation and zooming
  • Rich Network Protocol Support - RTMP and RTMPS for Youtube, Facebook live streaming or other CDN. RTP and RTSP for streaming over your network. ONVIF and GB/T28181 - for your security applications, Visca - to enable control over network

Warranty Information

This product has a limited warranty of 36 months.

Product Documents

User Manual

Key Features

  • Capture stunning video with the 12x optical zoom PTZ camera for detailed close-ups.
  • Stream live events seamlessly via NDI, HDMI, SDI, and USB for ultimate connectivity.
  • Enjoy remote control with pan and tilt, perfect for broadcast, education, and more.
  • Experience full HD 1080p video quality at 60fps, ensuring smooth and clear visuals.
  • Easily integrate using PoE technology for simplified setup and power over Ethernet.
  • Get professional-grade durability with a robust design and a 3-year limited warranty.

What's in the box:

  • BG-UPTZ-ND12X NDI|HX 16:9 PTZ Live Streaming Camera (Black)
  • BZB GEAR 3 Year Limited Warranty
