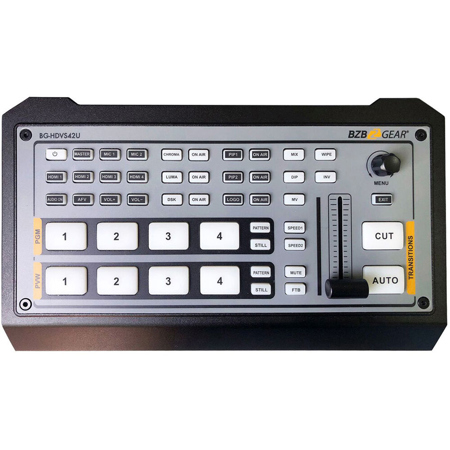

BZB GEAR BG-HDVS42U 4-Channel HDMI Mini Live Streaming Video Switcher/Audio Mixer

SKU: BZHDVS42U MFR: BG-HDVS42U
Earn VIP Reward Points

Key Features

  • Seamlessly switch between 4 HDMI sources with this video switcher for dynamic live productions.
  • Achieve high video quality with 1080p resolution, ensuring your streams are always professional.
  • Enjoy versatile compatibility, connecting cameras, consoles, and more to this multimedia mixer.
  • Use the user-friendly interface with T-Bar control for smooth transitions during live streaming.
  • Remotely control your video feeds and audio levels, optimizing your workflow for real-time streaming.
  • Create engaging content with luma/chroma key, PiP, and POP effects on this live production switcher.
See More Product Details
Free Expedited Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$69.99

3 Year

$94.99

4 Year

$119.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?Anthony M : Found it on a Youtube video.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

BZB GEAR BG-HDVS42U Specifications

Connection

Connection

Jump to...
  • Video In

    4x HDMI type-A

  • Video Out

    1x HDMI type-A PGM
    1x HDMI type-A Multiview
    1x USB2.0 type C (Streaming on PC)
    Assignable HDMI 1-4, PGM, Clean PGM, PVW, Color bar, Multiview

  • Audio In

    2x MIC/ Line level (3.5mm stereo audio)

  • PC Control Port

    1x LAN

  • Media Library

    1x USB type-A (USB disk port for image import and firmware upgrade)

  • Tally Port

    1x DB-15

  • Power In

    1x DC 12V

Functions

Jump to...
  • Transitions

    T-Bar/ AUTO/ CUT

  • Effects

    Wipe (9x2 patterns)/ Mix/ DIP/ Pattern/ Still (freeze)/ MUTE/ FTB

  • Layouts

    2 styles of Multiview layout (6 windows and status)

  • Keys

    Upstream Key: 1x Luma Key / 1x Chroma Key / 2x PiP / POP
    Downstream Key: 1x DSK / 1x Logo

  • Audio Mixer

    4x HDMI and MIC/ 2x Line level
    Audio delay: 0-500ms

  • Media

    Default image: 49 preset patterns
    Local image: up to 16 imported images
    Capture image: up to 16 captured images

  • Generators

    1x Pattern generator
    2x Color generators

Standards

Jump to...
  • HDMI In Format Support

    1080p 60/ 59.94/ 50/ 30/ 29.97/ 25/ 24/ 23.98
    1080i 50/ 59.94/ 60
    720p 60/ 59.94 /50/ 30/ 29.97/ 25/ 24/ 23.98
    576i 50, 576p 50, 480p 59.94/ 60, 480i 59.94/ 60

  • HDMI PGM Out

    1080p 60/ 59.94/ 50/ 48/ 47.95/ 30/ 29.97/ 25/ 24/ 23.98; 1080i 60/ 59.94/ 50

  • HDMI Multiview Out

    1080p 60/ 59.94/ 50/ 48/ 47.95/ 30/ 29.97/ 25/ 24/ 23.98; 1080i 60/ 59.94/ 50

  • HDMI Color Space

    RGB/ YUV

  • USB Capture Out

    MJPG, Up to 1080p 60

  • Media Format

    USB disk format support: FAT32, Ext3, Ext4, up to 256GB
    Image format support: png, bmp, jpg, gif, jpeg, ppm, pbm, tif, jps, mpo, tga
    Logo format support: png, bmp, jpg, gif, jpeg, ppm, pbm, tif, jps, mpo, tga
    Logo size support: 10x10 pixel to 600x600 pixel

General

Jump to...
  • Power

    Wide voltage: 7-24V; Operating power: 12W (12V 1A)

  • Temperature

    Working: -4 Degree F to 140 Degree F (-20 Degree C to 60 Degree C)
    Storage: -22 Degree F to 158 Degree F (-30 Degree C to 70 Degree C)

  • Dimensions (L x W x D)

    9.62 x 5.63 x 1.75" (244.5 x 143.2 x 44.5mm)

  • Weight

    2.27 lbs (1.03kg)

About BZB GEAR BG-HDVS42U

The BG-HDVS42U 4-Channel HDMI Mini Live Streaming Video Switcher/Audio Mixer from BZBGEAR is a compact, yet powerful production tool designed to elevate your video and audio production quality. This versatile HDMI video switcher boasts four channels, offering live video switching capabilities, audio mixing, and a host of other features such as program and multiview outputs, Picture-in-Picture (PIP)/Picture-outside-Picture (POP), and the ability to overlay custom logos.

With the multiview HDMI output, you can conveniently monitor all four HDMI sources, as well as the preview and program sources, on a single display. The user-friendly control knob provides easy access to the control menu, allowing for swift adjustments to settings.

The integrated media library lets you personalize your final image by importing your own graphics for custom logos and overlays. Alternatively, you can opt to use any of the pre-loaded patterns and color generators. The BG-HDVS42U also offers a variety of transition options such as T-Bar, Auto, Cut, and effects like Wipe, Mix, Dip, ensuring a smooth production flow.

The HDMI embedded audio and two 3.5mm audio inputs facilitate audio mixing from microphones or external audio feeds. The USB-C output captures the program output for streaming from a PC or Mac, while the LAN port enables PC control via the included software.

This HDMI switcher/audio mixer is an ideal solution for a variety of HDMI switching needs, making it a perfect fit for studios, live events, and houses of worship. It is a popular choice among field production crews, streamers/podcasters, and studio owners.

The BG-HDVS42U supports HDMI 4 inputs, 1 PGM out, and 1 multiview out. It also features a USB 3.0 plug & play connectivity, stereo audio input for connecting mics and embedding local audio, and a LAN web interface. The device is powered with an included 12V DC power plug through a standard wall outlet, ensuring easy setup and operation. With resolutions up to 1080p@60Hz, you can count on crystal clear image quality for your productions.

BZB GEAR BG-HDVS42U Features

  • 4 channel auto-detected HDMI inputs
  • 1xHDMI PGM output, 1xHDMI multiview out, 1xUSB type-C output
  • The Multiview, PGM, and USB-C outputs can also be assigned as AUX OUT for HDMI1-4, PVW, PGM, Clean PGM, Color Bar, and Multiview
  • USB-C for capturing and streaming on PC
  • Clearly visible multiview & status page
  • Upstream key: Luma key, Chroma key, PIPx2/ POP
  • Downstream key and LOGO overlay
  • T-bar/ Auto/ Cut transitions; various effects: WIPE (9x2 patterns) / MIX/ DIP
  • Audio mixer: HDMI embedded audio and 2-Ch MIC/ line In; audio delay available
  • Media library: 49 default patterns, 16 imported images, 16 captured images, 2 color generators
  • LAN port for PC software remote control
  • FTB/ MUTE/ STILL/ GPIO for tally customer configuration import and export

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Seamlessly switch between 4 HDMI sources with this video switcher for dynamic live productions.
  • Achieve high video quality with 1080p resolution, ensuring your streams are always professional.
  • Enjoy versatile compatibility, connecting cameras, consoles, and more to this multimedia mixer.
  • Use the user-friendly interface with T-Bar control for smooth transitions during live streaming.
  • Remotely control your video feeds and audio levels, optimizing your workflow for real-time streaming.
  • Create engaging content with luma/chroma key, PiP, and POP effects on this live production switcher.

What's in the box:

  • BZB GEAR BG-HDVS42U 4-Channel HDMI Mini Live Streaming Video Switcher/Audio Mixer
  • 12V 2A Power Supply
  • Type A to C USB Cable
  • DB-15 Tally Connector
  • BZB GEAR 3 Year Limited Warranty
