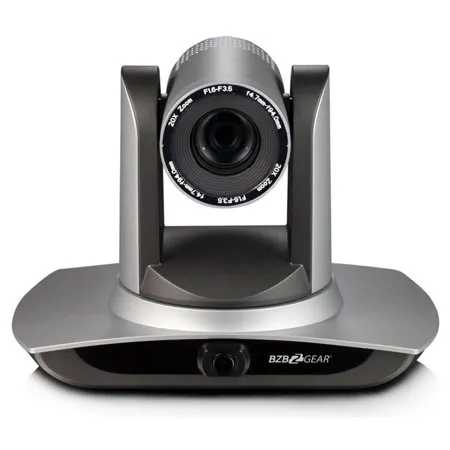

BZB GEAR LVUPTZ Full HD 3G-SDI Auto-Tracking Live Streaming 20x PTZ Camera

SKU: BZLVUP20XSD MFR: BG-LVUPTZ-20XSD
Earn VIP Reward Points

Key Features

  • Capture stunning Full HD video with the LVUPTZ PTZ camera's high-quality CMOS sensor.
  • Experience smooth, clear visuals even in low light with advanced noise reduction tech.
  • Use the 20x optical zoom to get incredibly detailed shots, perfect for live events.
  • Stream live directly with SDI connectivity; ideal for broadcasting and conferences.
  • Auto-tracking ensures you're always in focus, great for lectures or presentations.
  • Control remotely via network; integrate this PTZ camera into your existing setup.
See More Product Details
Free Expedited Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$119.99

4 Year

$154.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

BZB GEAR LVUPTZ Specifications

Tracking Camera & Lens Parameters

Tracking Camera & Lens Parameters

Jump to...
  • Image sensor

    1/2.8inch high quality CMOS sensor

  • Effective pixels

    2,070,000 16: 9

  • Video signal

    1080P60/50/30/25/59.94/29.971080I60/50/59.94720P60/50/30/25 /59.94/29.97

  • Lens optics zoom

    20X optical zoom f=4.7-94mm

  • Visual angle

    2.9 Degree (narrow angle) -55.4 Degree (wide angle)

  • Aperture coefficient

    F1.6 - F3.5

  • Digital zoom

    X10

  • Minimum illumination

    0.5Lux(F1.8, AGC ON)

  • Digital noise reduction

    2D & 3D digital noise reduction

  • White balance

    Manual/auto/one-key white balance /3000K/ 4000K/5000K/6500K

  • Focus

    Auto/manual

  • Aperture

    Auto/manual

  • Electronic shutter

    Auto/manual

  • Backlight compensation

    On/off

  • Wide dynamic

    Off/dynamic grade adjustment

  • Video regulation

    Brightness, hue, saturation, contrast ratio, sharpness, Gamma

  • Signal to noise ratio

    >55dB

Panoramic Lens

Jump to...
  • Image sensor

    1/2.8inch high quality CMOS sensor

  • Effective pixels

    2100000

  • Lens

    Manual focus

  • Output port

    Network port, 3G-SDI

  • Field angle (D/H/V)

    112 Degree /82 Degree /57.6 Degree

Input/Output Port & Support Protocol

Jump to...
  • Video port

    SDI

  • Network port

    100M internet access (10/100BASE-TX) 5GWiFi(optional), support network VISCA control protocol

  • Network protocol

    RTSP, RTMP, ONVIF, GB/T28181

  • Compression image code stream

    Dual stream output

  • Video compression format

    H.265, H.264

  • Control signal port

    RS-232/485

  • Control protocol

    VISCA/Pelco-D/Pelco-P; Baud rate: 115,200/9,600/4,800/2,400bps

  • Audio input port

    Dual track 3.5mm linear input

  • Audio compression format

    AAC, MP3, PCM

  • Power port

    HEC3800 power socket (DC12V)

Holder Parameters

Jump to...
  • Horizontal rotation

    -170 Degree - 170 Degree

  • Vertical rotation

    -30 Degree - 90 Degree

  • Horizontal control speed

    0.1 -100 Degree /s

  • Vertical control speed

    0.1-45 Degree /s

  • Preset speed

    Horizontal: 100 Degree /s, vertical:45 Degree /s

  • Preset quantity

    User can set 255 presets at most (10 pcs of mobile control)

Other Parameters

Jump to...
  • Power adapter

    Input AC110V-AC220V output DC12V/2.5A

  • Input voltage

    DC12V /-10%

  • Input current

    1.5A (maximum)

  • Power consumption

    18W (maximum)

  • Temperature

    Storage: 14 Degree F - 140 Degree F (-10 Degree C- 60 Degree C)
    Operating: 14 Degree F - 122 Degree F (-10 Degree C- 50 Degree C)

  • Humidity

    Storage: 20%-95%
    Operating: 20%-80%

  • Operating environment

    Indoor

  • Remote maintenance (network port)

    Remote upgrade, restart and reset

Physical

Jump to...
  • Dimensions (W x H x D)

    10 x 5.66 x 6.85" (254 x 144 x 174mm)

  • Weight

    3.3 lbs (1.50kg) (Approx.)

  • UPC Code

    850009357328

About BZB GEAR LVUPTZ

Find the future of live streaming and surveillance with the LVUPTZ Full HD 3G-SDI Auto-Tracking 20x PTZ Camera. This advanced and high-tech camera is a game-changer in the world of video production and security. With its innovative auto-tracking feature, it effortlessly pans, tilts, and zooms to follow the subject, making it an ideal choice for educators, presenters, and streamers.

This state-of-the-art camera is equipped with a sophisticated 'set and forget' programming that eliminates the need for manual operation. Once set up, it works automatically, ensuring the auto-tracking is always ready to capture every movement.

The LVUPTZ camera is essentially two cameras in one, both delivering a crystal-clear Full HD image with a 20x zoom. The first camera provides tracking information via its Full HD static image, while the second camera, with advanced onboard processing, performs the auto-tracking functions.

This innovative camera offers dual outputs, with both cameras having completely independent output signals. The outputs are available via IP Stream or SDI, providing flexibility for your specific needs.

The LVUPTZ camera is also networkable, allowing for remote access and control. It supports multiple formats, including USB 3.0 and IP streaming outputs, making it a versatile tool for various applications.

This camera also features an I/O Control input for RS-232 control connections, SDI 1080p @ 60 fps for distances up to 300 ft, and a LAN IP Control and streaming interface. Additionally, it comes with a stereo audio input for connecting microphones and embedding local audio into all four video output interfaces.

Whether you're looking to enhance your lecture halls, studios, or houses of worship, the LVUPTZ Full HD 3G-SDI Auto-Tracking 20x PTZ Camera is the perfect fit for your needs. Experience a new level of connectivity and audience engagement with this sophisticated and high-tech camera.

BZB GEAR LVUPTZ Features

  • Full-scene solution: Different product combinations satisfy different scenario demands
  • Networked control interface: Control information of all products will be transmitted via network, and it is suitable for product layout for all scenarios
  • Recognition algorithm unrelated to location: Status detection and recognition of teachers and students adopt unique smart partitioning algorithm to ensure that the result of detection and recognition is unrelated to location
  • Free installation: It supports both front installation and upside down installation
  • All-in-one design: The built-in panoramic lens allow perfect combination of panoramic lens and tracking camera;
  • Sophisticated tracking algorithm: It applies sophisticated human detection, locking and tracking image processing and analytical algorithm (smart image recognition library, scene adaptive algorithm) and achieves stable, fast and accurate target tracking
  • High immunity from interference: More diversified and flexible recognition shield settings ensure that once tracking target is locked, it will not be affected by other moving object or projector
  • Stable tracking: Movement sensitivity is adjustable. When tracking slight movement of target or hand movement, it will not cause wrong operation of the camera
  • Self-adaptive image: The tracking camera zooms depending on distance to target so that the visual image maintains proper size and scale
  • High environmental suitability: Tracking result will not be affected by classroom size, shape or seat arrangement
  • Super wide dynamic exposure: It solves the issue that tracking object dims in strong light such as projector
  • Full HD image: With 1/2.8 inch high quality image sensor, its maximum resolution ratio reaches1920x1080
  • Advanced focusing technique: The advanced automatic focusing algorithm allows automatic focusing be done quickly, accurately and steadily
  • Low noise high signal to noise ratio: Low noise CMOS ensures super high signal to noise ratio of video taken by the camera. With advanced 2D and 3D noise reduction technology, noise is reduced and image resolution is guaranteed
  • Audio input port: It supports 16000, 32000, 44100, 48000 sampling frequency and AAC, MP3 and G.711A audio coding
  • Super quiet holder: High precision stepping motor and precision motor driven controller ensure the holder operate at low and stable speed without noise
  • Multiple video compression standards: It supports H.265/H.264 video compression
  • Multiple networking protocol: It supports ONVIF, GB/T28181, RTSP, RTMP protocol and RTMP push mode
  • Sleep mode: It supports low-power consumption sleep/wake up mode. Power consumption in sleep mode is lower than 400mW
  • Multiple control protocol: It supports VISCA, PELCO-D, PELCO-P protocol, automatic recognition protocol and all command VISCA control protocol

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Capture stunning Full HD video with the LVUPTZ PTZ camera's high-quality CMOS sensor.
  • Experience smooth, clear visuals even in low light with advanced noise reduction tech.
  • Use the 20x optical zoom to get incredibly detailed shots, perfect for live events.
  • Stream live directly with SDI connectivity; ideal for broadcasting and conferences.
  • Auto-tracking ensures you're always in focus, great for lectures or presentations.
  • Control remotely via network; integrate this PTZ camera into your existing setup.

What's in the box:

  • LVUPTZ PTZ 20x Zoom Full HD SDI Auto Trackable Live Streaming Camera
  • 12V/1.5A Power Supply
  • RS232 Control Line
  • Remote Control
  • User Manual
  • BZB GEAR 3 Year Limited Warranty
