What is the maximum resolution of the BG-VPTZ-HSU3 Full HD PTZ Camera?

The BG-VPTZ-HSU3 Full HD PTZ Camera delivers a maximum resolution of 1080p at 60 frames per second.

What video interfaces does the BG-VPTZ-HSU3 Camera support?

The BG-VPTZ-HSU3 Camera supports multiple video interfaces including USB 3.0, 3G-SDI, HDMI, and IP Streaming.

Does the BG-VPTZ-HSU3 Camera have audio input?

Yes, the BG-VPTZ-HSU3 Camera has an integrated 3.5mm audio input for seamless audio integration during live streams.

What is the zoom capability of the BG-VPTZ-HSU3 Camera?

The BG-VPTZ-HSU3 Camera boasts a powerful 20x optical zoom.

What streaming platforms does the BG-VPTZ-HSU3 Camera support?

The BG-VPTZ-HSU3 Camera has native support for popular streaming platforms like Skype, Zoom, Google Classroom, YouTube, and Facebook.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

BZB GEAR BG-VPTZ-HSU3 Specifications

Camera Specs

Camera Specs

Jump to...
  • Image Sensor

    1/2.8" Exmor CMOS

  • Frame Rate

    1080P60/ 59.94 / 50 /30 / 29.97 /25
    1080I60/59.94 / 50 / 30 / 29.97 / 25
    720P60/50/ 30 / 25, 480I60, 576I50

  • Zoom

    Optical - 20X

  • F-number

    1.6(W)-3.5(T)

  • Focus

    f=4.7mm-94.0mm

  • Effective Pixels

    2.38 Megapixel

  • View Angle (H)

    65 Degree

  • Min Illumination

    0.5lux (F 1.8, AGG ON)

  • Shutter Speed

    1 to 1/10000s

  • Image Adjustment

    Vertical Flip & Mirror Supported

Input/Output Interface

Jump to...
  • Video Output

    HDMI, 3G-SDI, USB 3.0, RJ45 Network (10/100M Adaptive Ethernet ports)

  • Audio Input

    1-ch 3.5mm audio interface, Line In

  • Communication interface

    1X RS232 IN, 1X RS232 Out, 1X RJ45, RS485

  • Power Connection

    DC IN 12V, Power over Ethernet

Mechanical

Jump to...
  • Pan/Tilt Rotation

    +/-178 Degree , Tilt Rotation Angle -30 Degree - +90 Degree
    Pan 90 Degree /s; Tilt: 90 Degree /s

  • Presets

    Max 255 Presets ( Remote 9 Presets)

  • Network Protocol

    VISCA, PELCO P/D, ONVIF Protocol

IPC Video Features

Jump to...
  • Video standard

    H.265/H.264/MJPEG

  • Video Stream

    Main stream, Sub stream

  • Main stream resolution

    1920x1080, 1280x720

  • Sub stream resolution

    720x480, 320x240

  • Bit Rate

    128K, 256K, 384K, 512K, 768K, 1024K, 1536K, 2048K, 3072K, 4096K, 5120K, 6144K, 8192K

  • Bit Rate Type

    Variable rate, Fixed rate

  • Maximum Frame

    60fps

  • Audio encode standard

    G.711, G.722, G.722.1, G.728, G.722.1C AAC

  • Audio stream rate

    96K, 128K, 256K

  • Supported protocols

    TCP/IP, RTSP, RTMP

General

Jump to...
  • Operating Temperature

    14 Degree F - 122 Degree F (-10 Degree C - 50 Degree C)

  • Max Consumption

    12W DC12V@1A

  • Dimensions (L x W x H)

    4.72 x 4.72 x 5.71" (120 x 120 x 145mm)

  • Weight

    3.53 lbs (1.6kg)

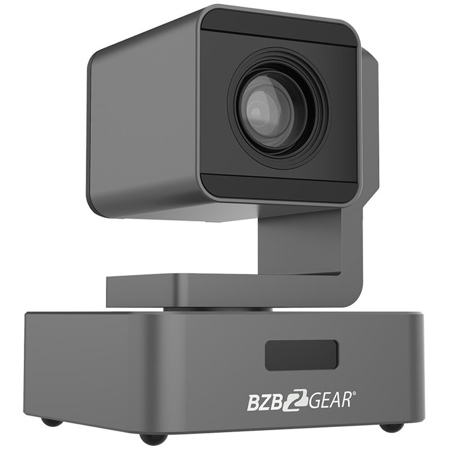

About BZB GEAR BG-VPTZ-HSU3

Become a leader in professional-grade live streaming and video conferencing with the BG-VPTZ-HSU3 Full HD PTZ Camera. This sophisticated piece of high-tech equipment is engineered with an advanced Full HD CMOS Sensor, delivering a maximum resolution of 1080p at 60 frames per second for fluid motion and crystal-clear imagery. Its accurate color reproduction ensures that your broadcasts look vibrant and true to life.

With its innovative design, the BG-VPTZ-HSU3 offers simultaneous video outputs across a variety of interfaces, including USB 3.0, 3G-SDI, HDMI, and IP Streaming, making it a versatile choice for any setup. The camera supports both H.264 and H.265 compression formats, optimizing image quality while efficiently managing bandwidth.

The integrated 3.5mm audio input allows for seamless audio integration, making this camera an ideal solution for live streaming events, webinars, and professional recordings. The camera's Power over Ethernet (POE) capability simplifies installation by delivering power and data over a single ethernet cable.

Designed for exceptional flexibility and reliability, the BG-VPTZ-HSU3 boasts a powerful 20x optical zoom, capturing every detail even from a distance. Control is intuitive and accessible, whether you're using the included IR remote with programmable presets, managing settings through the WebGUI, or operating with a joystick controller via IP or serial connections.

Our advanced ISP algorithms ensure that the camera's auto-focusing is fast, accurate, and stable, keeping your subject in sharp focus during live broadcasts. Native support for popular streaming platforms like Skype, Zoom, Google Classroom, YouTube, and Facebook means you can connect and stream with ease.

This camera is an ideal fit for a wide range of indoor environments, including mid-sized conference rooms, remote education settings, lecture halls, studios, and more. Whether you're a small business, live streamer, school, or educator, the BG-VPTZ-HSU3 enhances your ability to communicate and engage with your audience.

In terms of connectivity, the BG-VPTZ-HSU3 excels with its HDMI interface, providing a crystal-clear image with resolutions up to 1080p at 60 fps. The SDI interface ensures long-distance connectivity up to 300 ft without loss of quality, while the USB 3.0 plug-and-play connectivity is ideal for any conferencing service. The LAN IP Control, streaming, and POE interface offer comprehensive network control, and the stereo audio input allows for high-quality audio embedding across all video outputs.

Take control of your visual presentations and live streams with the BG-VPTZ-HSU3 Full HD HDMI/SDI/USB 3.0 Live Streaming 20x PTZ Camera with POE, and deliver professional, high-definition content with ease.

BZB GEAR BG-VPTZ-HSU3 Features

  • Multiple control options
  • All-aluminum high-stability chassis
  • AAC audio encoding support
  • Smart menu & WebGUI Interface
  • Resolutions up to 1080p 60Hz
  • Advanced video image processing
  • Includes 2D/3D noise reduction functions
  • Small form factor for tight installs
  • Main and sub streams available

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Capture crystal-clear video with the 20x optical zoom PTZ camera for detailed close-ups.
  • Stream live events seamlessly using HDMI, SDI, and USB 3.0 outputs for maximum compatibility.
  • Enjoy versatile control with VISCA, PELCO P/D, and ONVIF protocols for easy integration.
  • Power over Ethernet (PoE) support simplifies setup, reducing cable clutter for clean installs.
  • Perfect for broadcasting, record lectures or stream church services with reliable performance.
  • Experience Full HD quality with this live streaming camera, ideal for professional video production.

What's in the box:

  • BZB GEAR BG-VPTZ-HSU3 Full HD HDMI/SDI/USB 3.0 Live Streaming 20x PTZ Camera with POE (Gray)
  • IR Remote Controller
  • RS-232 to DB 9-Pin Cable
  • 12V/ 2.0A DC Power Adapter
  • User Manual
  • BZB GEAR 3 Year Limited Warranty
