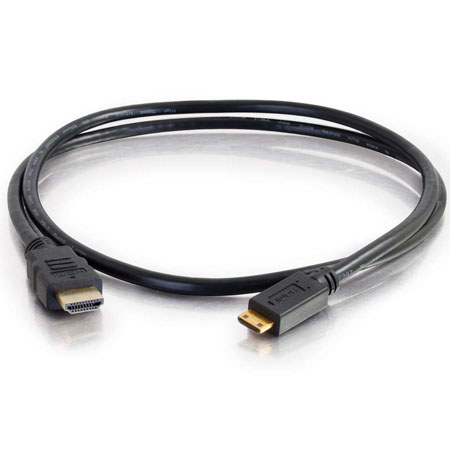

C2G Cables To Go 1m (3.28') High Speed HDMI Mini with Ethernet Cable
See all C2G items

C2G 1m (3.28') High Speed HDMI Mini with Ethernet Cable

SKU: C2G40306
(1)

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2016-01-31T19:00:00

Rated 5 out of 5

Good experience, good product

Good for my video use

Locke

C2G Cables To Go 1m (3.28') High Speed HDMI Mini with Ethernet Cable Specifications

  • Nominal Impedance

    100 ± 10ohm

  • Nominal Velocity of Propagation

    < 1.78ns

  • DC Resistance

    376ohm/km

  • Dielectric Strength

    AC 500V

  • Insulation Resistance

    100ohm

  • Voltage Rating

    30V

  • Minimum Bend Radius

    70mm

  • Temperature Rating

    80deg.C

  • Conductor 1 (5 pair)

    Conductor Type: 30AWG (7/0.10), Tinned Copper
    Insulation: Foamed PE SKIN, Red/White, Brown/White, Blue/White, Green/White, Black/White, O.D.: 0.8mm
    Drain Wire: 30AWG (7/0.10), Tinned Copper
    Shield: Aluminum Foil + Mylar, 100% Coverage

  • Conductor 2 (4 conductors)

    Conductor Type: 30AWG (7/0.10), Tinned Copper
    Insulation: HDPE, Yellow, Red, Green, Purple, O.D.: 0.6mm

  • Connector Type A

    Connector Type: HDMI: Type A
    Pin Construction: Phosphor Copper
    Plating: 3um Gold
    Insulation: Black LCP
    Hood: 45P PVC, Black

  • Connector Type C

    Connector Type: HDMI: Type C
    Pin Construction: Phosphor Copper
    Plating: 3um Gold
    Insulation: Black LCP
    Hood: 45P PVC, Black

  • Overall Cable

    Drain Wire: 30AWG (7/0.10), Tinned Copper
    Foil Shield: Aluminum Foil +Mylar, 100% Coverage
    Braided Shield: 16/4/0.12, Aluminum/Magnesium, 50% Coverage
    Jacket: PVC, Black, O.D.: 6.0 ± 0.2mm

  • Cable Length

    1.00m (3.28')

  • Dimensions (HxWxL)

    Connector Type A: 10.00x20.10x37.10mm (0.39x0.79x1.46")
    Connector Type C: 8.30x14.00x32.70mm (0.32x0.55x1.28")

  • Weight

    0.12lbs (0.05kg)

About C2G Cables To Go 1m (3.28') High Speed HDMI Mini with Ethernet Cable

The Cables To Go 1m (3.28') High Speed HDMI with Ethernet Mini Cable is perfect for a hand-held mobile or cell phone connectivity for home theater or desktop applications requiring high speed HDMI features and video resolutions of up to 1080p. The Ethernet capabilities of the cable allow a user to connect multiple Ethernet enabled HDMI devices through a single Ethernet connection. This cable supports bandwidth applications up to 340MHz/10.2 Gbps as well as high speed HDMI features; including, 3D, Deep Color, x.v.Color, Dolby True HD and DTS-HD Master Audio.
